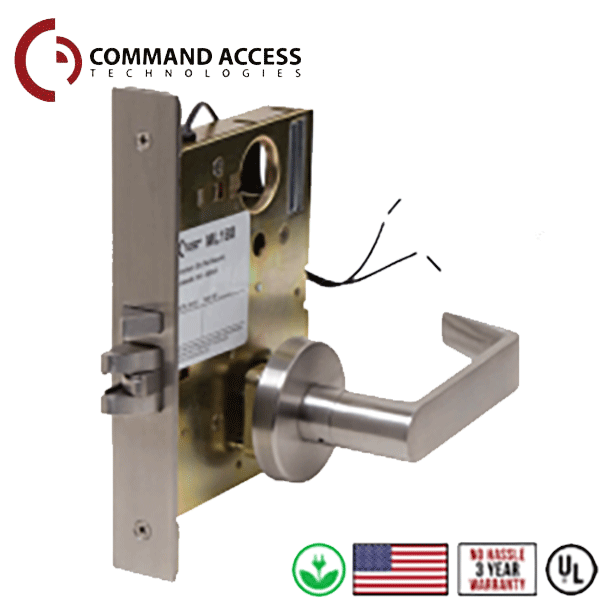

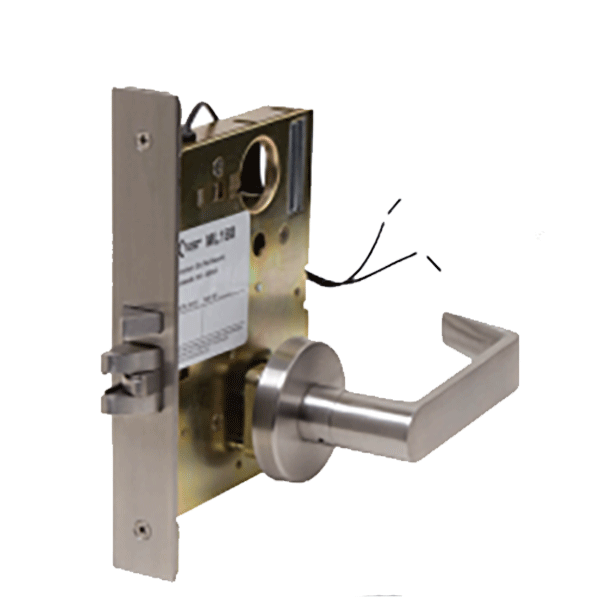

Command Access - Electrified Mortise Lever Set - Fail Secure - Request to Exit - Storeroom - L6 - 12/24V - Satin Chrome - Grade 1
- Product SKU: CAT-ML180-EU-CH-L6-24V-626-REX
- NSID: 22062
-
CAT-ML180-EU-CH-L6-24V-626-REX
The Command Access ML180 (L9000) retrofit series mortise lock utilizes a high quality Grade 1 chassis built to withstand years of use. You can install this lock with the confidence of knowing that the ML1 carries our top tier features, options, and specifications. This mortise lock retrofits any Schlage L series compatible trim. Request to Exit function, meaning some input must be made to unlock door.
Features:
- Request To Exit
- Electrified Mortise Lock
- Retrofits Schlage L9000 series
- Grade 1
- UL Listed
- Built to last in the USA
- 3 Year Warranty
Specifications:
| Lock Function: | EU - Fail Secure - Electronically Unlocked - Request To Exit |
| Handing: | Non-handed |
| Backset: | 2-3/4" |
| Latch: | 3/4" Throw |
| Levers: | L6 Lever |
| Finish: | 626 - Satin Chrome |
| Operating Voltage: | 24VAC/DC |
| Amperage: | 350 mA |
| Power Consumption: | 8 watts |
| Solenoid Coil Resistance: | 69 Ω |
| Certifications: | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
Downloads:
