Command Access - Energy Transfer Swing Hinge - Steel Base - 4/26 Gauge - Black

Available to Order
SKU: CAT-ETH4W4545-693-BB79
NSID: 24926

Please Note: This product has a lead time

$97.24
$104.99
$97.24

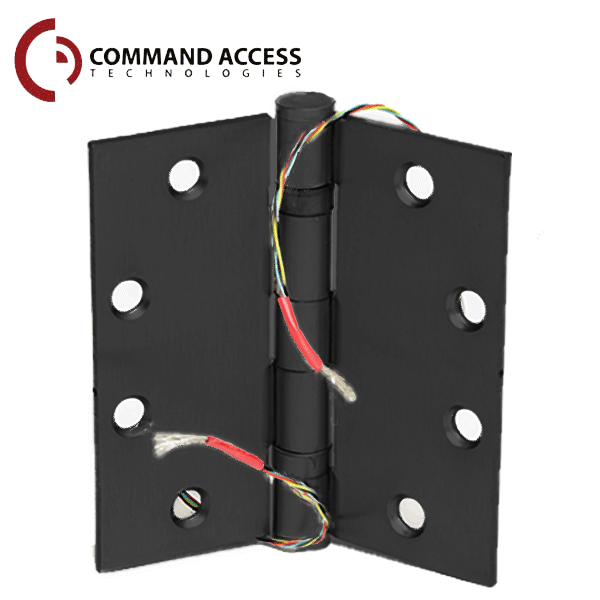

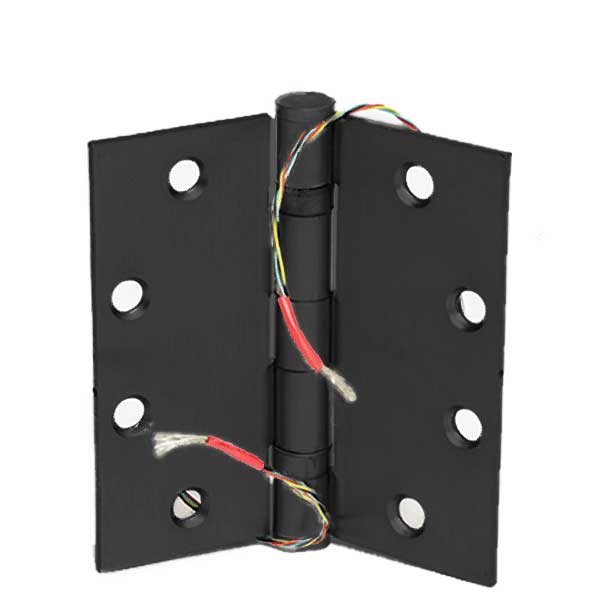

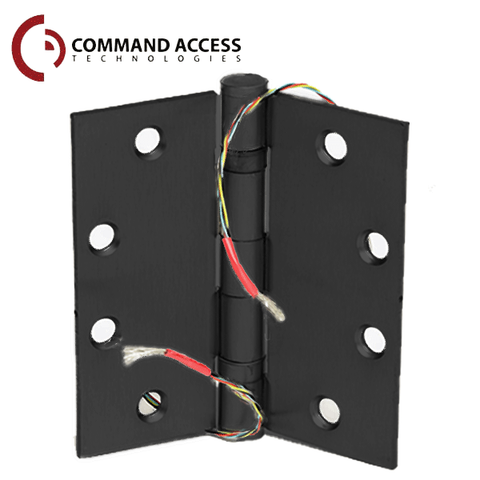

The Energy Transfer Hinge (ETH) is the ideal way to pass low voltage power from the hinge jamb to the lockset without having any exposed wires. These hinges are commonly used with electric mortise and cylindrical locks, electric strikes (when on a pair of doors), electric exit trims, latch pullback devices, door mounted card readers and low voltage door lights.

Features:

  • UL-F Listed
  • Easy installation
  • 4’ lead at no additional charge
  • Non-conductive wire access cap
  • 5 Knuckle - Standard Weight Steel Base
  • 3-Year Manufacturer Warranty


Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications:

    Amp Draw 1.0 Amps @24VDC Continuous
    Bearing Type Plain Bearing
    Contact Rating In-rush Current N/C and N/O 0.5 A max
    Corner Type Square
    Duty Weight/Class Standard Duty
    Electrical Rating Electrical Switch Rating 50-100 mA, 30VDC
    Function Energy Transfer
    Hardware Finish Black
    Height 4-1/2 In.
    Hinge Type Full Mortise Hinge
    Knuckles 5
    Mounting Location Center hinge on door
    Pin Type (NRP) Non Removable
    Power Transfer/Wires 4-26 gauge
    Tip Style Standard
    Warranty 3 Years Manufacturer Limited
    Width 4-1/2 In.
