Command Access - ET25 - Electrified Exit Trim - Fail Safe - 24V - 5' Bridge Rectifier - Satin Chrome
Command Access - ET25 - Electrified Exit Trim - Fail Safe - 24V - 5' Bridge Rectifier - Satin Chrome
Command Access - ET25 - Electrified Exit Trim - Fail Safe - 24V - 5' Bridge Rectifier - Satin Chrome
Command Access - ET25 - Electrified Exit Trim - Fail Safe - 24V - 5' Bridge Rectifier - Satin Chrome
Command Access - ET25 - Electrified Exit Trim - Fail Safe - 24V - 5' Bridge Rectifier - Satin Chrome

Command Access - ET25 - Electrified Exit Trim - Fail Safe - 24V - 5' Bridge Rectifier - Satin Chrome

$244.45 $292.99
Available: In Stock
Wishlist
  • Product SKU: CAT-ET25-EL-L6-11-24V-626-SC-BR5
  • CAT-ET25-EL-L6-11-24V-626-SC-BR5

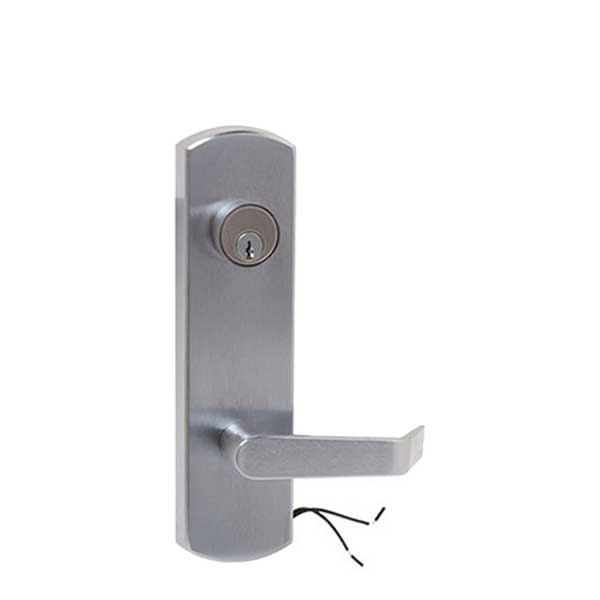

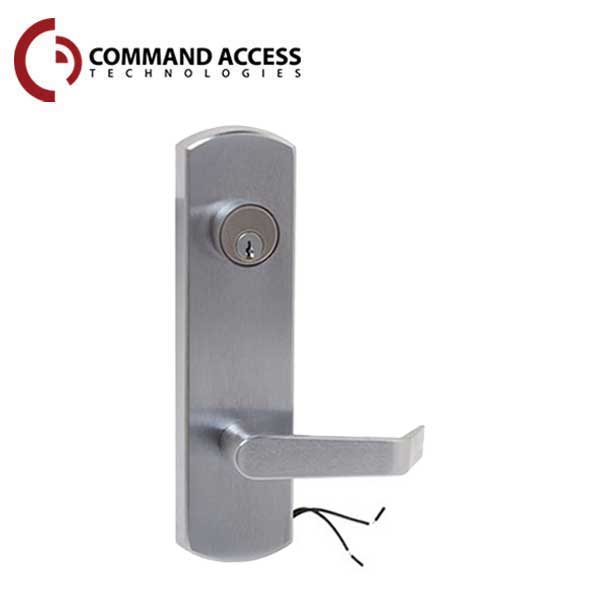

    The Command Access ET25/26 series exit trim is perfect for stairwell conditions or applications where electric pullback of the exit device’s latchbolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes
    require “fail safe” condition which is not an option with electrified latch pullback
    devices. Because the current draw is quite low there is no need for a more expansive
    power supply to provide the surge current. This product comes with a Bridge Rectifier with 5' lead which converts the AC supply voltage to a DC supply voltage.

    Features:

    • Continuous duty solenoids used to insure trouble-free operation
    • Internally mounted solenoid to ease installation (no special door prep required)
    • Field reversible handing
    • Perfect for applications where latch retraction of the exit device’s
    • latchbolt(s) is cost prohibitive or not required.
    • Electric locking or unlocking by a remote switch
    • Interior or exterior entrance (ingress) with mechanical exit device


    $244.45

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specifications:

Lock Function: EL - Fail Safe - Electronically Locked - Unlocks upon Power Loss
Bridge Rectifier four diodes that convert the AC supply voltage to a DC supply voltage
Low Current Draw: Allows many locks on continuous duty
Wire Raceway: Required 3/8"
Handing: Non-Handed
Levers: L6 Lever
Cylinder: Schlage Keyway
Finish: 626 - Satin Chrome
Operating Voltage: 24VAC/DC
Solenoid Coil Resistance: 159 Ω
Certifications: ANSI/BHMA Meets or exceeds Series Grade 1 requirements
UL Listed 3-hour fire rating
Warranty: 3-Year Manufacturer Warranty



Downloads:

CAT-ET25-EL-L6-11-24V-626-SC-BR5

The Command Access ET25/26 series exit trim is perfect for stairwell conditions or applications where electric pullback of the exit device’s latchbolt is cost prohibitive or not required. This is especially practical in applications where fire/life safety codes
require “fail safe” condition which is not an option with electrified latch pullback
devices. Because the current draw is quite low there is no need for a more expansive
power supply to provide the surge current. This product comes with a Bridge Rectifier with 5' lead which converts the AC supply voltage to a DC supply voltage.

Features:

  • Continuous duty solenoids used to insure trouble-free operation
  • Internally mounted solenoid to ease installation (no special door prep required)
  • Field reversible handing
  • Perfect for applications where latch retraction of the exit device’s
  • latchbolt(s) is cost prohibitive or not required.
  • Electric locking or unlocking by a remote switch
  • Interior or exterior entrance (ingress) with mechanical exit device


Specifications:

Lock Function: EL - Fail Safe - Electronically Locked - Unlocks upon Power Loss
Bridge Rectifier four diodes that convert the AC supply voltage to a DC supply voltage
Low Current Draw: Allows many locks on continuous duty
Wire Raceway: Required 3/8"
Handing: Non-Handed
Levers: L6 Lever
Cylinder: Schlage Keyway
Finish: 626 - Satin Chrome
Operating Voltage: 24VAC/DC
Solenoid Coil Resistance: 159 Ω
Certifications: ANSI/BHMA Meets or exceeds Series Grade 1 requirements
UL Listed 3-hour fire rating
Warranty: 3-Year Manufacturer Warranty



Downloads:

Compatible With
