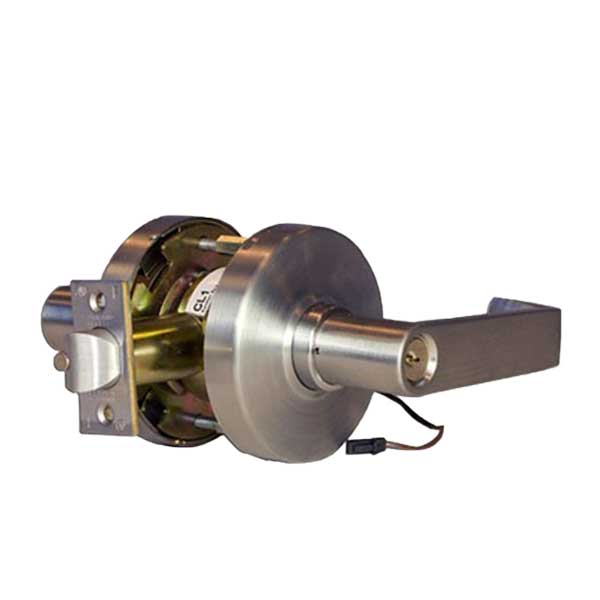

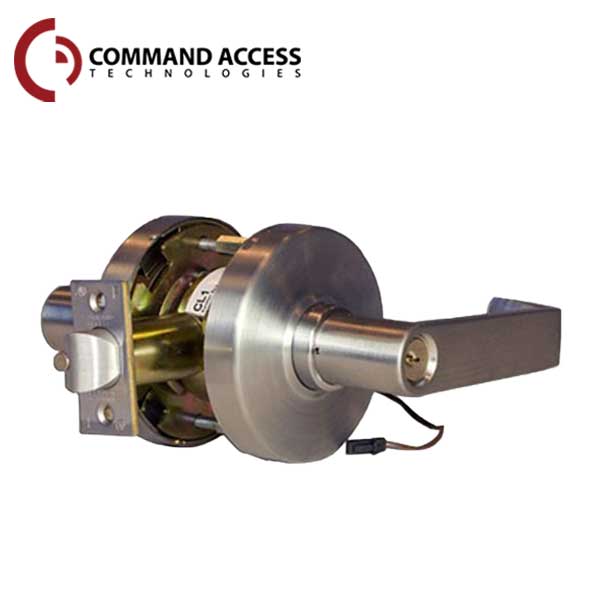

Command Access - Low-Energy Cylindrical Clutch Lever Set - Fail Safe - Storeroom - L6 Lever - 12/24V - Satin Chrome - Grade 1
In Stock
SKU:
CAT-CL180LE-EL-L6-24V-626-SC
NSID:
22046
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $236.45
-
$283.99 - $236.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Command Access CL180 LE series is a low-energy, cost effective cylindrical lock that is ideal for any continuous duty application or condition requiring low surge and hold current. Its unique electronics allow the CL180LE to function much like a motor-driven lockset without the potential problems inherent in motors. The CL180LE will operate with an input voltage between 11-30 volts, eliminating the need to inventory 12 and 24V models. This model is a Fail Safe.
Features:
- Fail Safe - Outside lever locked (EL) electronically.
- Latchbolt retracted by key outside or lever inside.
- Switched power allows outside lever to retract latchbolt.
- Inside lever is always free for immediate egress.
- Low maximum current draw 400 mA (12V):
use more locks on a single power supply.
Additonal savings for the owner - Low holding current 30 mA : reliable operation
and meets sustainable consideraton - Low current draw clutching lever design
- Available with Schlage C type keyway
- 11-30 VAC/DC w/ auto detection technology; no need to flip a switch
Specifications:
| Lock Function: | EL - Fail Safe - Electronically Locked - Unlocks upon Power Loss |
| Handing: | Non-Handed |
| Door Thickness: | 1-9/16" to 2-1/8" |
| Backset: | 2-3/4" |
| Latch: | 1" Throw |
| Levers: | L6 Lever |
| Cylinder: | Schlage "C" Keyway |
| Finish: | 626 - Satin Chrome |
| Operating Voltage: | 24VAC/DC |
| Surge Voltage: | 400 mA @12V, 200 mA @ 24V |
| Holding Current: | 30 mA |
| Solenoid Coil Resistance: | 159 Ω |
| Wire Raceway: | 3/8" |
| Certifications: | ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
