Command Access - ML371 Series - Electrified Sargent 8200 Series Mortise Lock - Storeroom - (EU) Outside Lever Unlocked Electronically - 24V Voltage - Right Handed
Command Access - ML371 Series - Electrified Sargent 8200 Series Mortise Lock - Storeroom - (EU) Outside Lever Unlocked Electronically - 24V Voltage - Right Handed
$570.00$684.00On Sale
You save $114.00 (17%)
Quantity
Couldn't load pickup availability

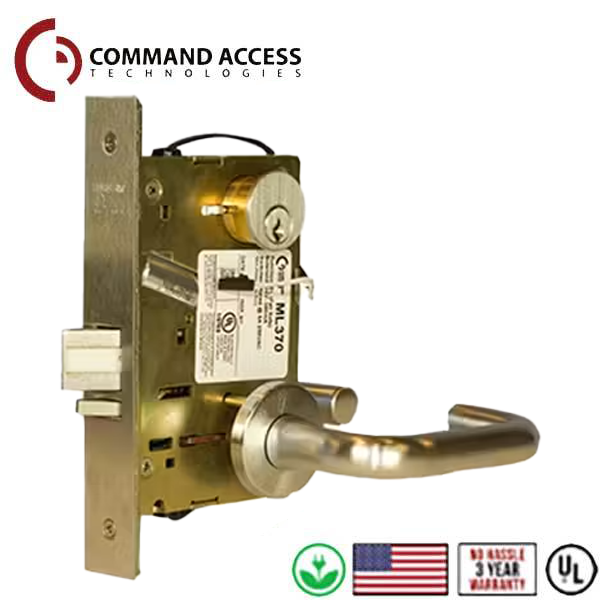

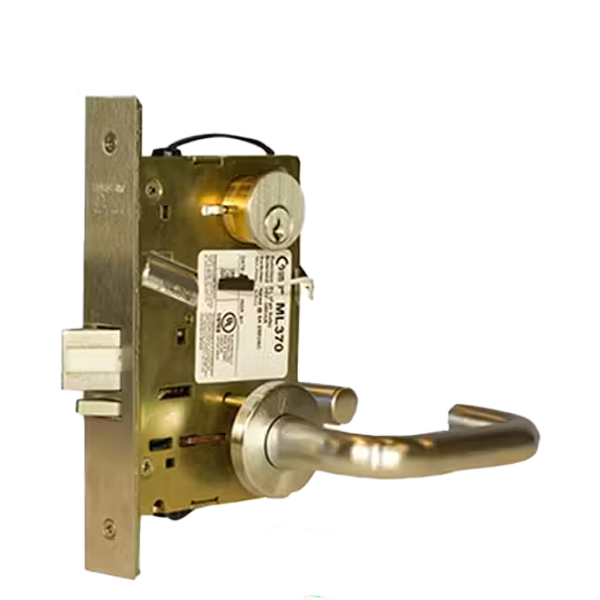

The Command Access ML371-24V-RH is a heavy-duty, electrified mortise lock body designed to retrofit Sargent 8200 series locks. It features fail-secure (electrically unlocked/EU) operation, operates on 24V AC/DC, and is configured for right-handed doors.
Features:
-
Fail-Secure Mode: The outside lever remains locked when power is removed, and the latchbolt can be retracted by a key outside or the lever inside (the inside lever is always free for immediate egress).
- Low Current Draw: Features continuous-duty solenoids that allow for "continuously on" applications.
- Bridge Rectifier: Includes a plug-in bridge rectifier to seamlessly support AC or DC power sources.
View full details
Details
Specifications:
| Cylinder Type | Prepared For Mortise Cylinder |
| Locking State | Fail-Secure (Power To Unlock) |
| Function | Storeroom |
| Grade | ANSI Grade 1 |
| Keyway | Less Cylinder |
| Product Type | Electrified Mortise Lock |
| Solenoid Duty | Continuous Duty |
| UL Listing | UL Listed |
| Voltage | Selectable 24V AC or DC |
| Handing | Right Handed (RH) |
| Power Draw | 8W consumption, 350mA at 24V |
| Compliance | ANSI/BHMA Grade 1, UL Listed |
Downloads:
