Command Access - Electrified Latch Retraction Kit - Sargent 80 Series Exit Device - 2/18 Gauge - 24 to 28 VDC
In Stock
SKU:
CAT-MLRK1-SGT
NSID:
22069
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $314.68
-
$344.00 - $314.68
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

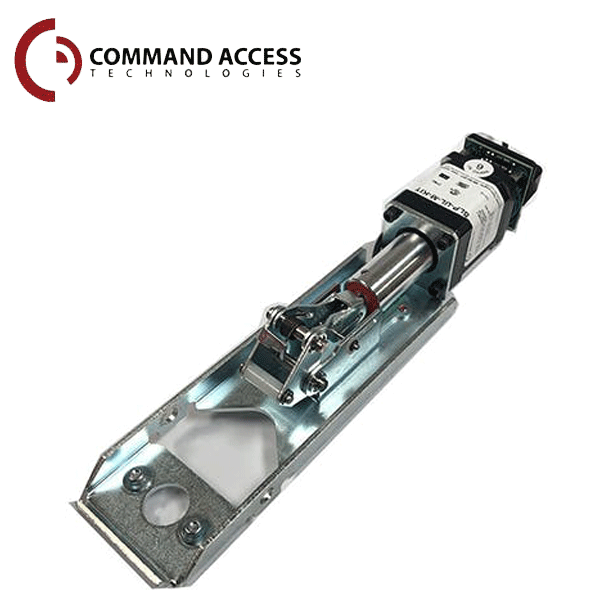

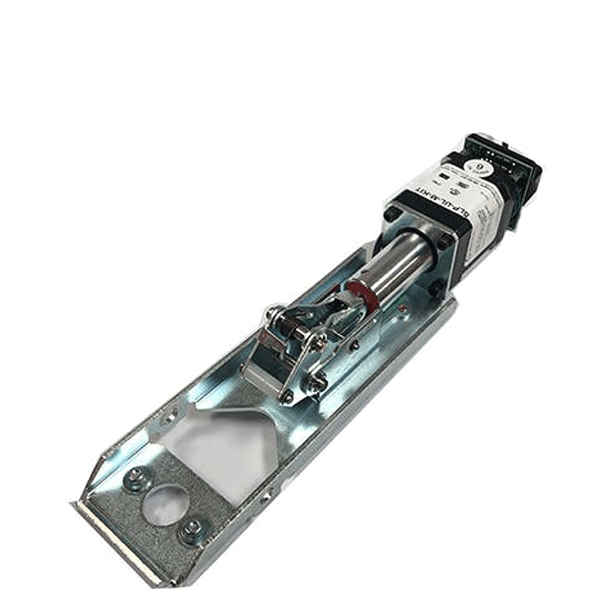

The MLRK1-SGT is a practical and cost-effective way to convert a mechanical Sargent 80 series device to an electrified latch pullback device while maintaining the UL listing. Our easy-to-install motor-driven kit installs in moments. It is equipped with PTS technology allowing for an easy post installation adjustment of the latch/latches. Last but not least, the SLP features an updated MM4S module with 2 different energy consumption settings from energy conscious to high torque to get the tough jobs done!
Features:
- Easy installation - underneath the push pad for ultimate cutdown
- Fast, quiet, smooth
- True Electronic Dogging - Full push pad retraction
- Retrofits Sargent 80 series exit devices
- MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issues
- PTS: (Push to Set Technology) 5 second electronic adjustment for easy post installation adjustment
- Up to 300’ wire run with 2-18ga wire
- Low Current Draw - Field switchable to “High Torque” mode
- 8’ cable with Quick Connect for MM4S module to easily connect to power
supply lead
Specifications:
| Function: | Electrified Latch Retraction Kit - Sargent 80 Series Exit Device |
| Voltage Range: | 24-28 VDC |
| System Protection: | Unit shuts down when voltage exceeds 28VDC |
| Standard - Average Current Peak: | 900mA |
| Standard - Average Current Hold: | 215mA |
| High Torque - Average Current Peak: | 2A |
| High Torque - Average Current Hold: | 250mA |
| PTS adjustment: | approx. 1/4” |
| Wire Run: | 300’ with 18ga wire |
| Device Cutdown Details: | 36” - 3” / 48” - 15” |
| Certifications: | UL Listed 3-hour fire rating |
| Warranty: | 3-Year Manufacturer Warranty |
