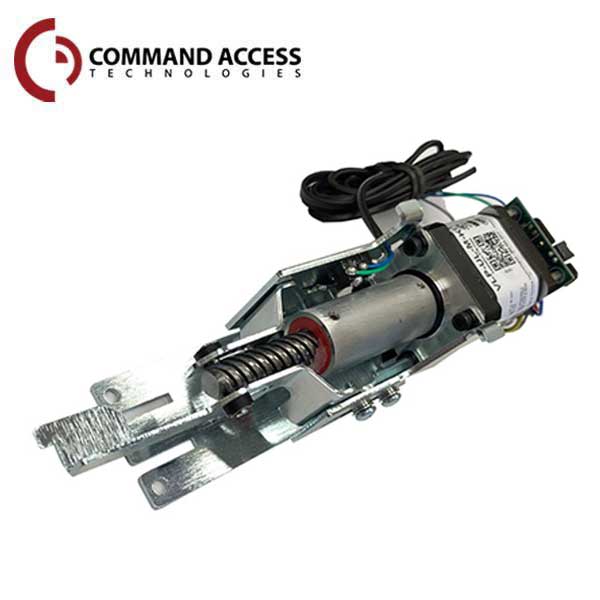

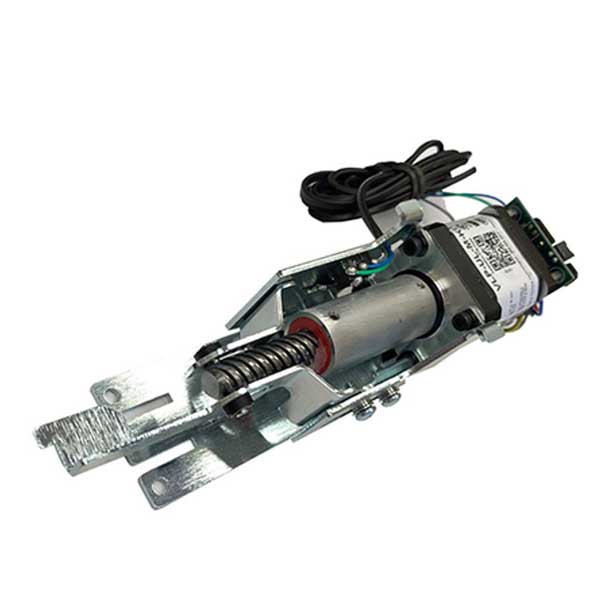

Command Access - Electrified Latch Retraction Kit - Von Duprin 22 Series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - Von Duprin 22 Series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - Von Duprin 22 Series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - Von Duprin 22 Series - 2/18 Gauge - 24-28 VDC
Command Access - Electrified Latch Retraction Kit - Von Duprin 22 Series - 2/18 Gauge - 24-28 VDC

Command Access - Electrified Latch Retraction Kit - Von Duprin 22 Series - 2/18 Gauge - 24-28 VDC

$304.45 $344.00
Available: In Stock
Wishlist
  • Product SKU: CAT-MLRK1-VD22
  • CAT-MLRK1-VD22

    The new MLRK1-VD22 is a practical and cost-effective way to convert a mechanical Von Duprin 22 series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and is backed by CAT’s 3-year no hassle warranty. It easily hooks into the dogging tail piece and is secured with (2) screws, in a matter of seconds. The only hole you’ll need to drill is for the wire raceway. Push to Set (PTS) allows for an easy post-installation adjustment of the latch/latches. A built-in REX switch on all units! Last but not least, the Kit features our updated MM5 module, energy conscious while still being capable of getting the tough jobs done!

    Features:

    • Incredibly easy to install
    • Low energy motor drive
    • Works on all 22 series devices
    • Built-in Request to Exit
    • Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
    • PTS: (Push to Set Tech) 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
    • Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
    • Electric dogging rated for continuous duty
    • Up to 300’ wire run with 2-18ga wire
    • 6” cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead.


    $304.45

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

        Specifications:

        Function:  Electrified Latch Retraction Kit - Von Duprin 22 Series
        Voltage Range: 24-28 VDC
        System Protection: Unit shuts down when voltage exceeds 28VDC
        Standard - Average Current Peak: 900mA
        Standard - Average Current Hold: 215mA
        PTS adjustment: approx. 1/4”
        Wire Run: 300’ with 18ga wire
        Device Cutdown Details: 36” model 5" max / 48” model 9" max
        Certifications: UL Listed 3-hour fire rating
        Warranty: 3-Year Manufacturer Warranty



        Downloads:

        CAT-MLRK1-VD22

        The new MLRK1-VD22 is a practical and cost-effective way to convert a mechanical Von Duprin 22 series device to an electrified latch pullback device. The retrofit kit will maintain all UL listings on the device and is backed by CAT’s 3-year no hassle warranty. It easily hooks into the dogging tail piece and is secured with (2) screws, in a matter of seconds. The only hole you’ll need to drill is for the wire raceway. Push to Set (PTS) allows for an easy post-installation adjustment of the latch/latches. A built-in REX switch on all units! Last but not least, the Kit features our updated MM5 module, energy conscious while still being capable of getting the tough jobs done!

        Features:

        • Incredibly easy to install
        • Low energy motor drive
        • Works on all 22 series devices
        • Built-in Request to Exit
        • Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
        • PTS: (Push to Set Tech) 2 second electronic adjustment for easy post installation adjustment. Simplified further with a push button to engage programming & shorter program sequence.
        • Standard Torque Mode: Now capable of pulling all types of devices, even the difficult tall Vertical Rods doors!
        • Electric dogging rated for continuous duty
        • Up to 300’ wire run with 2-18ga wire
        • 6” cable with robust Quick Molex Connector for MM5 module to 6’ Power lead to easily connect to power supply lead.


              Specifications:

              Function:  Electrified Latch Retraction Kit - Von Duprin 22 Series
              Voltage Range: 24-28 VDC
              System Protection: Unit shuts down when voltage exceeds 28VDC
              Standard - Average Current Peak: 900mA
              Standard - Average Current Hold: 215mA
              PTS adjustment: approx. 1/4”
              Wire Run: 300’ with 18ga wire
              Device Cutdown Details: 36” model 5" max / 48” model 9" max
              Certifications: UL Listed 3-hour fire rating
              Warranty: 3-Year Manufacturer Warranty



              Downloads:

              Compatible With
