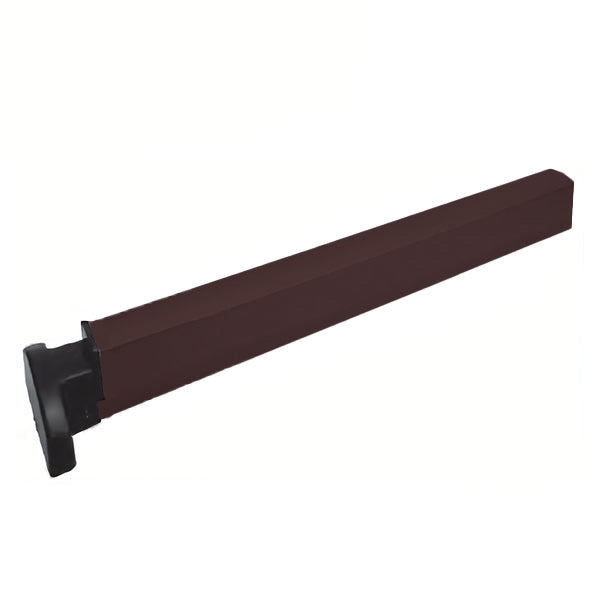

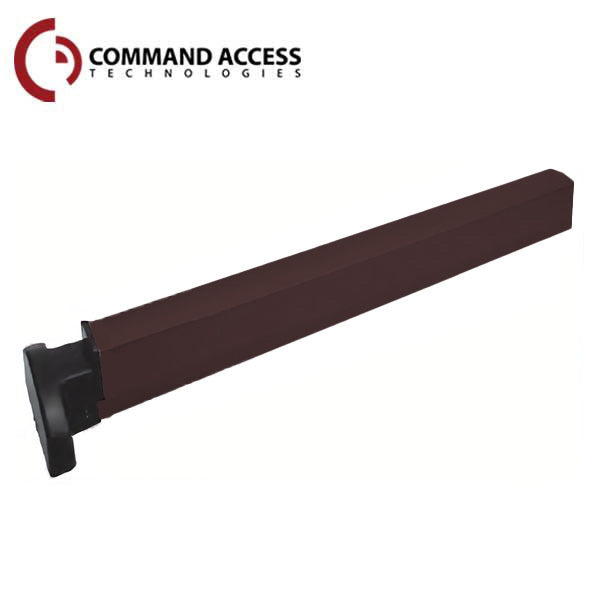

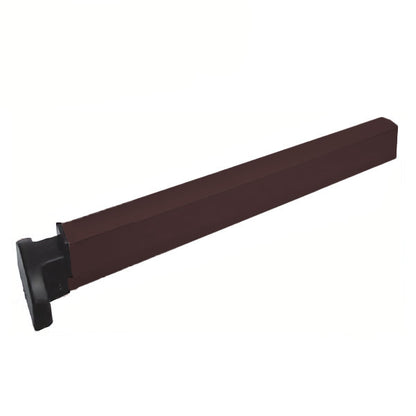

Command Access - PD10-M-CVRD-36 - Exit Device - Motorized Latch Pullback - 36 Inches - 24 - 30 VDC

Available to Order
SKU: CAT-PD10-M-CVRD-36
NSID: 68393

Please Note: This product has a lead time

$521.56
$625.87
$521.56




Complete Device, PD10 retrofits Doromatic 1600/1700 and First Choice 3600/3700

Features:

  • Voltage range – 24 to 30 VDC
  • System protection – unit shutdown when voltage exceeds 30VDC
  • Current Peak – 1A
  • Current Hold -125mA
  • Electronic travel adjustment – approx 1/4"
  • 700' with 18ga wire; 1000' with 16ga wire; 1250' with 14ga wire; 1500' with 12ga wire
  • Hardware:
  • Materials: push bar made of extruded aluminum, anodized in finish specified.
  • Pushbar Length: dimensioned for 36". Consult factory if field cut is required for smaller size doors with latch pullback
  • Door Height (for CVR): 7’ standard;
  • Door thickness: suits standard 1-3/4" thick aluminum, stile and rail doors
  • Stile Width: Minimum 2" stile required. Fits medium and wide stile doors as well.
  • Stile Wall: minimum 1/8" required for installation
  • Dogging: Electronic Dogging is standard with motor technology - push bar stays retracted when dogged.
  • Fasteners: all provided
  • Cylinders: not provided. Install RIM cylinder by others.
  • Entry trim: not available from Command Access. Consult factory for options
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications:

Voltage Range: 24-30 VDC
Standard - Average Current Peak: 1 A
Standard - Average Current Hold: 125mA
Dogging
Electronic Dogging is standard with motor technology - push bar stays retracted when dogged.
Length
Dimensioned for 36". Consult factory if field cut is required for smaller size doors with latch pullback
Finish Duronotic
