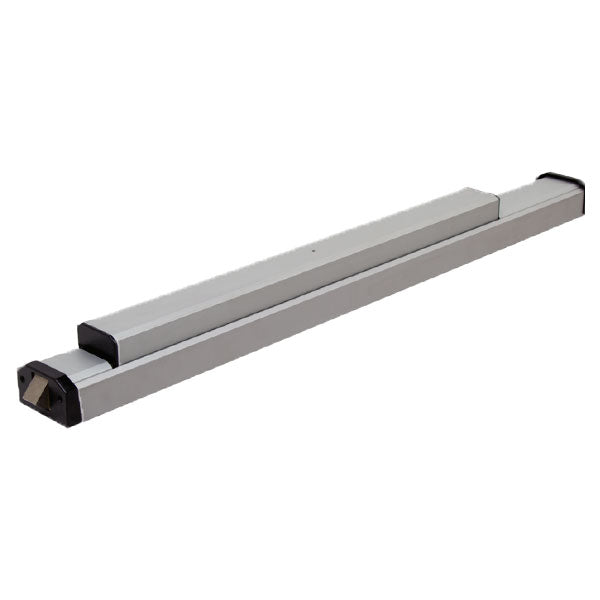

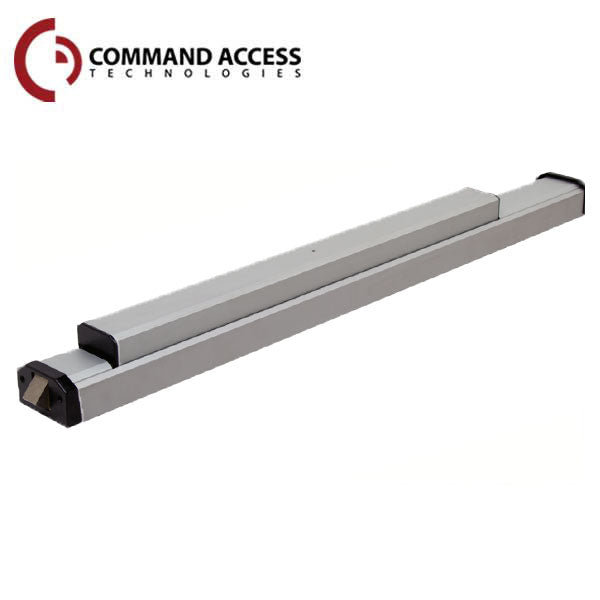

Command Access - PD15-CVRA-36 - Mechanical CVR Exit Device - 36 Inches - 24-30 VDC - LHR
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $536.25
-
$643.50 - $536.25
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Command Access PD15-M series is a motorized latch pullback Grade 1 storefront exit device; made for use in all institutions and commercial buildings storefront applications. All PD15-M models are equipped with our PTS “push to set” technology. As a retrofit for the Jackson 1285/95 & Kawneer 1686/1786 series models are designed to utilize the existing mounting locations and mortise or rod & case assemblies without having to remove the door. Install this device with the confidence of knowing that the PD15-M series meets or exceeds the high standards of other grade 1 products and carries our 3-year “no hassle “ warranty, meaning we will support you.
Complete Device, PD15 retrofits Jackson 1285/95 & Kawneer 1686/1786 Series Exit Devices.
Features:
- Voltage range – 24 to 30 VDC
- System protection – unit shutdown when voltage exceeds 30VDC
- Current Peak – 1.3A
- Current Hold - 170mA
- Electronic travel adjustment – approx 1/4"
- 300’ Run w/ 18ga
- Hardware:
- Materials: push bar made of extruded aluminum, anodized in finish specified.
- Pushbar Length: dimensioned for 36". Consult factory if field cut is required for smaller size doors with latch pullback
- Door Height (for CVR): 7’ standard;
- Door thickness: suits standard 1-3/4" thick aluminum, stile and rail doors
- Stile Width: Minimum 2" stile required. Fits medium and wide stile doors as well.
- Stile Wall: minimum 1/8" required for installation
- Dogging: Electronic Dogging is standard with motor technology - push bar stays retracted when dogged.
- Fasteners: all provided
- Cylinders: not provided. Install RIM cylinder by others.
- Entry trim: not available from Command Access. Consult factory for options
Specifications:
| Voltage Range: | 24-30 VDC |
| Standard - Average Current Peak: | 1.3 A |
| Standard - Average Current Hold: | 170mA |
| Dogging | Electronic Dogging is standard with motor technology - push bar stays retracted when dogged. |
| Length | Dimensioned for 36". Consult factory if field cut is required for smaller size doors with latch pullback |
| Handing | Left Hand Reversible |
| Warranty | 3-Year Manufacturers Warranty |
