Command Access - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access  - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access  - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access  - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC
Command Access  - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC

Command Access - PM300 - Power Booster Module - Solenoids - 18ga Wire - 22-30 VDC

$107.45 $154.00
Availability: In Stock
  • Product SKU: CAT-PM300
  • NSID: 22072
  • CAT-PM300

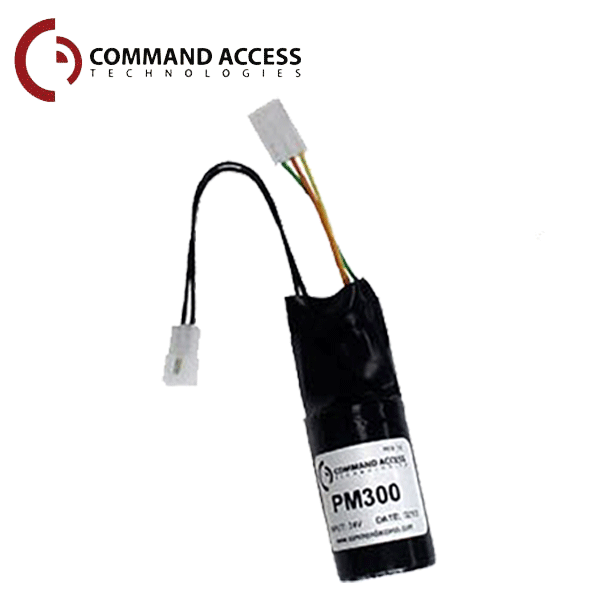

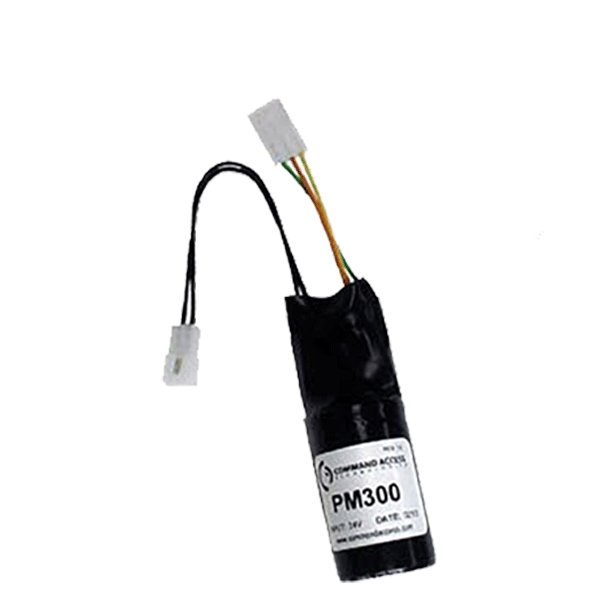

    The patented PM300 (taking over from all PM200 and PWM200 units) power booster module is an interface module that connects between the solenoid circuit of a latch-pullback exit device and the power supply.

    Features:

    • Allows a solenoid-driven exit device to be used with a lower-cost power supply
    • Gives a needed boost to an anaemic power supply/exit device installation
    • Allows a wire run from the power supply to the exit device of up to 700’ with 18/2 wire (see below)
    • PM300 compatible with most 24VDC 1.5A or greater regulated power supplies.
    • Built high output switch for added power when using Command Access power supplies*
    • Solid-state design with high-quality components make for years of trouble-free operation
    • Built-in safety feature that protects module for over-voltage
    • Patented Technology


    $107.45
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

      Specifications:

      Construction  Solid-state design with high-quality components make for years of trouble-free operation
      PM300 Input Voltage Range: 22-30 VDC Filtered & Regulated Voltage
      Dimensions: Tubular 3.5” L x 1.25” W
      Standard Mode: Fuse: Glass - 3.5 to 5A • Resetable - 1.0 Amp trip Relay: 5A or greater
      High Output Mode: Fuse: Resetable - 2.0Amp trip, 1.1Amp hold (minimum) Relay: 10A or greater
      Maximum Wire Runs: 700’ with 18ga wire • 1000’ with 16ga wire
      Operating Voltage: 22-30 VDC
      Warranty: 3-Year Manufacturer Warranty



      Downloads:

      CAT-PM300

      The patented PM300 (taking over from all PM200 and PWM200 units) power booster module is an interface module that connects between the solenoid circuit of a latch-pullback exit device and the power supply.

      Features:

      • Allows a solenoid-driven exit device to be used with a lower-cost power supply
      • Gives a needed boost to an anaemic power supply/exit device installation
      • Allows a wire run from the power supply to the exit device of up to 700’ with 18/2 wire (see below)
      • PM300 compatible with most 24VDC 1.5A or greater regulated power supplies.
      • Built high output switch for added power when using Command Access power supplies*
      • Solid-state design with high-quality components make for years of trouble-free operation
      • Built-in safety feature that protects module for over-voltage
      • Patented Technology


          Specifications:

          Construction  Solid-state design with high-quality components make for years of trouble-free operation
          PM300 Input Voltage Range: 22-30 VDC Filtered & Regulated Voltage
          Dimensions: Tubular 3.5” L x 1.25” W
          Standard Mode: Fuse: Glass - 3.5 to 5A • Resetable - 1.0 Amp trip Relay: 5A or greater
          High Output Mode: Fuse: Resetable - 2.0Amp trip, 1.1Amp hold (minimum) Relay: 10A or greater
          Maximum Wire Runs: 700’ with 18ga wire • 1000’ with 16ga wire
          Operating Voltage: 22-30 VDC
          Warranty: 3-Year Manufacturer Warranty
