*Discontinued* Command Access - Power Transfer Door Loop - 22" Length - Duranodic Bronze

*Discontinued* Command Access - Power Transfer Door Loop - 22" Length - Duranodic Bronze

Discontinued
SKU CAT-DL-22D NSID 22048
$22.95

CAT-DL-22D

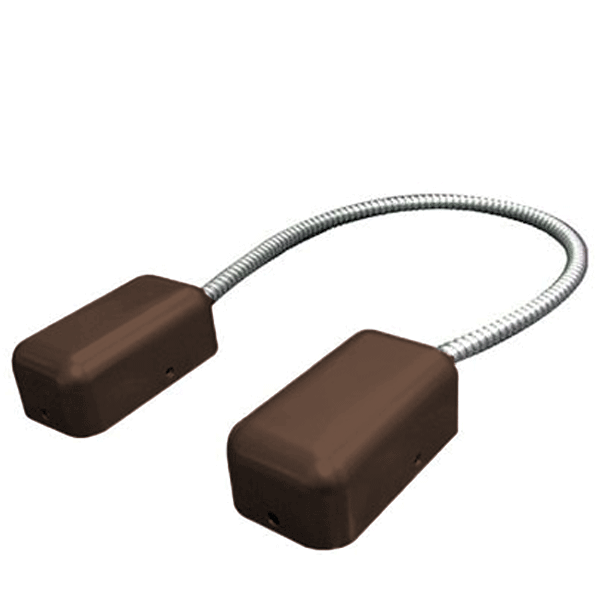

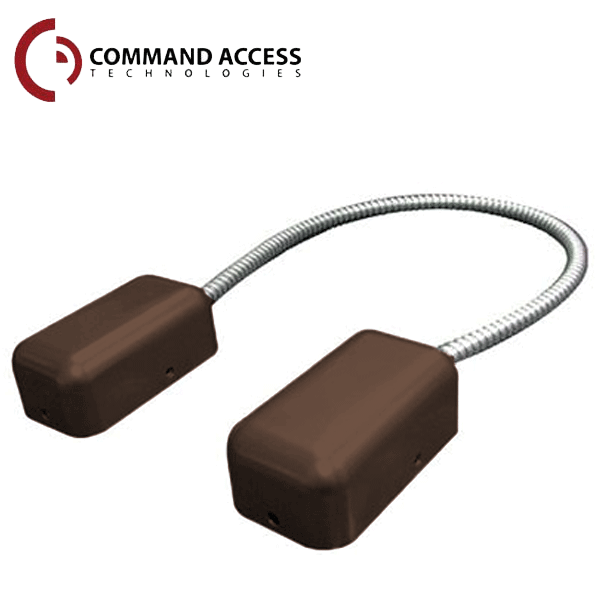

The Door Loop (DL22) is a low-cost method of transferring low voltage power from the door frame to the locking device. Door loops are commonly used with electric mortise and cylindrical locks, electric exit trims, and latch pullback devices.

Features:

  • Door loops are designed for electric mortise and cylindrical locks, electric exit trims, and latch pullback devices.
  • Available in Duranodic Bronze finish
  • Easy Installation
  • Surface mount
  • Special 1/4” flexible armored conduit
  • Supports up to 180° swing


View full details

Details

Specifications:

Construction: Special 1/4” flexible armored conduit
Dimensions: 22” x 4”: x 1”
Finish: Duranodic Bronze Finish
Maximum electrical wires: 7 ea. 18 awg, 10 ea. 22 awg
Swing: Supports up to 180° swing
Warranty: 3-Year Manufacturer Warranty
