Command Access - PS440B - Power Supply - 4 Amp - 24VDC - Battery Backup
Command Access - PS440B - Power Supply - 4 Amp - 24VDC - Battery Backup
Command Access - PS440B - Power Supply - 4 Amp - 24VDC - Battery Backup
Command Access - PS440B - Power Supply - 4 Amp - 24VDC - Battery Backup
Command Access - PS440B - Power Supply - 4 Amp - 24VDC - Battery Backup

Command Access - PS440B - Power Supply - 4 Amp - 24VDC - Battery Backup

$245.95 $294.00
Available: In Stock
Wishlist
  • Product SKU: CAT-PS440B
  • CAT-PS440B

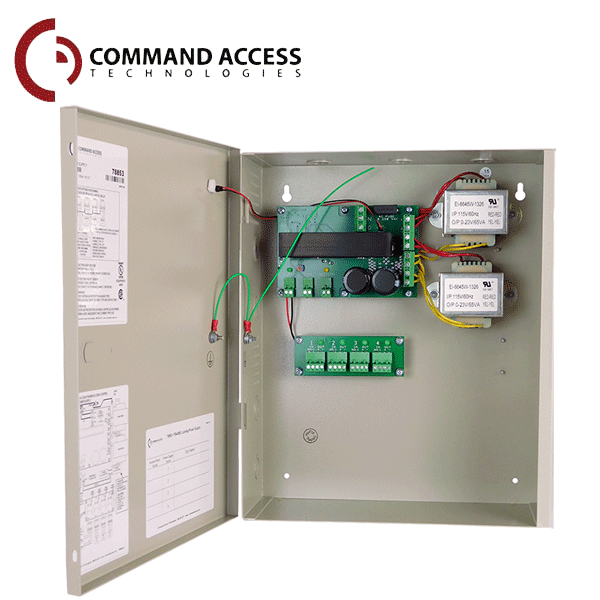

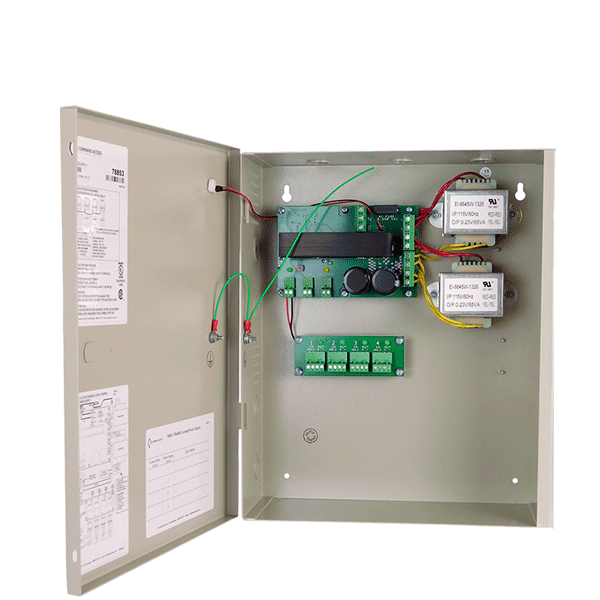

    The PS440B power supplies input 110-120VAC and deliver (4) amps @ 24VDC to (4) PTC fused outputs. It also provides (4) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid and motor driven exit devices, electric locks, electric strikes, and mag locks.

    Features:

    • Built to run up to 4 locks, exit trim & lp motor/solenoid kits
    • Robust solid-state outputs - Protects system relays
    • Rock-solid board design improves reliability
    • Built to last in the USA
    • Linear design ensures ample inrush/ hold current for latch retraction
    • Door mounted LED Power Indicator
    • Interruption free battery back-up
    • Easy to remove euro connectors

    $245.95

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

        Specifications:

        Input Voltage: 120 VAC, 60 Hz, • Input Fuse: 2 Amp Fuse @ 250VAC
        Output Voltage: 4A @ 24VDC • 4 Solid State I/O’s - 1.5A auto resetting fused outputs
        Fire Alarm: Fire alarm link
        Electrical: Temperature range: 0 to 49° C; 32 to 120° F • Maximum humidity: 85%
        LED’s: Red = A/C Power indicator • Green = D/C Output indicator • Orange = Battery Output Indicator
        Battery Backup: Regulated, independent battery charging • Automatic uninterrupted backup circuit • Battery cables included • Requires (2) 12VDC 7AH batteries • Batteries not included
        Dimensions: 13” W x 15.5” H x 5” D
        knockouts: 1/2” & 3/4”
        Hinge-less removable cover: Cam lock not provided
        Operating Voltage: 24 VDC
        UL294 (6e) Security Levels: Destructive Attack: Level I Line Security: Level I Endurance: Level IV Standby Power: Level I
        Rated Power: Class 2 Rated power limited output
        Listings: UL294 6th Edition
        Warranty: 3-Year Manufacturer Warranty



        Downloads:

        CAT-PS440B

        The PS440B power supplies input 110-120VAC and deliver (4) amps @ 24VDC to (4) PTC fused outputs. It also provides (4) solid-state input triggers, protects system relays from shorts, grounds and surges. Its linear design makes it a perfect match for solenoid and motor driven exit devices, electric locks, electric strikes, and mag locks.

        Features:

        • Built to run up to 4 locks, exit trim & lp motor/solenoid kits
        • Robust solid-state outputs - Protects system relays
        • Rock-solid board design improves reliability
        • Built to last in the USA
        • Linear design ensures ample inrush/ hold current for latch retraction
        • Door mounted LED Power Indicator
        • Interruption free battery back-up
        • Easy to remove euro connectors


              Specifications:

              Input Voltage: 120 VAC, 60 Hz, • Input Fuse: 2 Amp Fuse @ 250VAC
              Output Voltage: 4A @ 24VDC • 4 Solid State I/O’s - 1.5A auto resetting fused outputs
              Fire Alarm: Fire alarm link
              Electrical: Temperature range: 0 to 49° C; 32 to 120° F • Maximum humidity: 85%
              LED’s: Red = A/C Power indicator • Green = D/C Output indicator • Orange = Battery Output Indicator
              Battery Backup: Regulated, independent battery charging • Automatic uninterrupted backup circuit • Battery cables included • Requires (2) 12VDC 7AH batteries • Batteries not included
              Dimensions: 13” W x 15.5” H x 5” D
              knockouts: 1/2” & 3/4”
              Hinge-less removable cover: Cam lock not provided
              Operating Voltage: 24 VDC
              UL294 (6e) Security Levels: Destructive Attack: Level I Line Security: Level I Endurance: Level IV Standby Power: Level I
              Rated Power: Class 2 Rated power limited output
              Listings: UL294 6th Edition
              Warranty: 3-Year Manufacturer Warranty



              Downloads:

              Compatible With
