Command Access

Command Access - Request-to-Exit Switch - Von Duprin 33/35/98/99 Series Exit Device - SPDT

Command Access - Request-to-Exit Switch - Von Duprin 33/35/98/99 Series Exit Device - SPDT

In stock
SKU CAT-VDREXKIT-ED NSID 22079
$55.10$59.06On Sale You save $3.96 (7%)
Get it shipped Today! Order within:

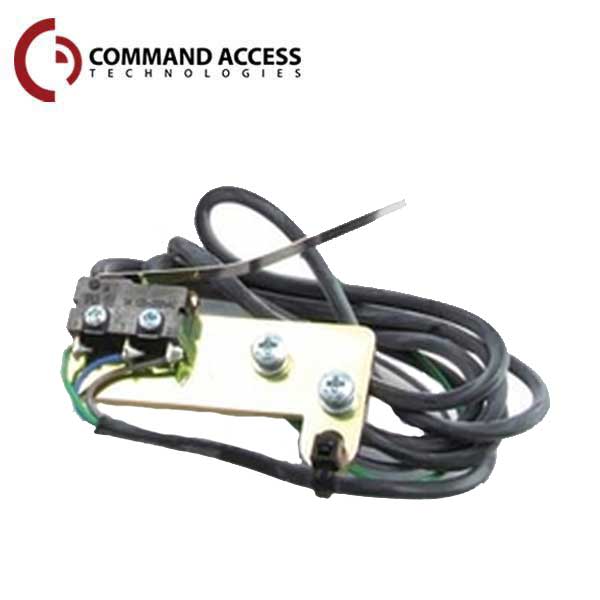

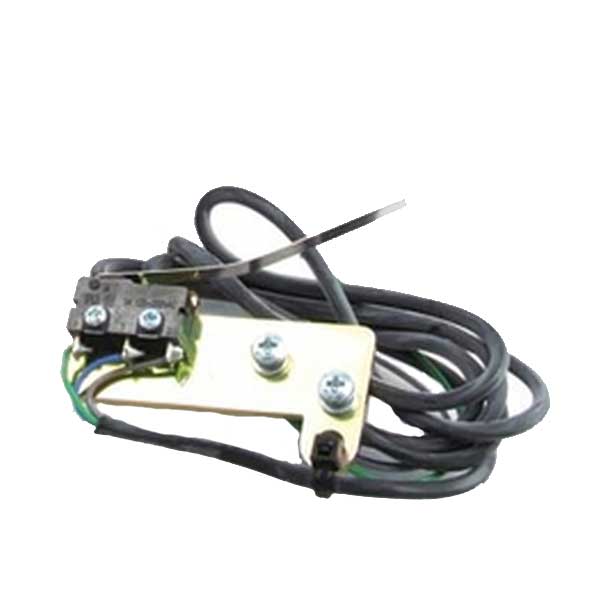

Field Installable Request-to-Exit switch for Von Duprin 33/35/98/99 Series Exit Device. The kits easy drop-in installation adds a switch that sends a signal to alert the control panel that the door is about to be opened by someone exiting from within the secured area. The switch is SPDT (single pull, double throw)

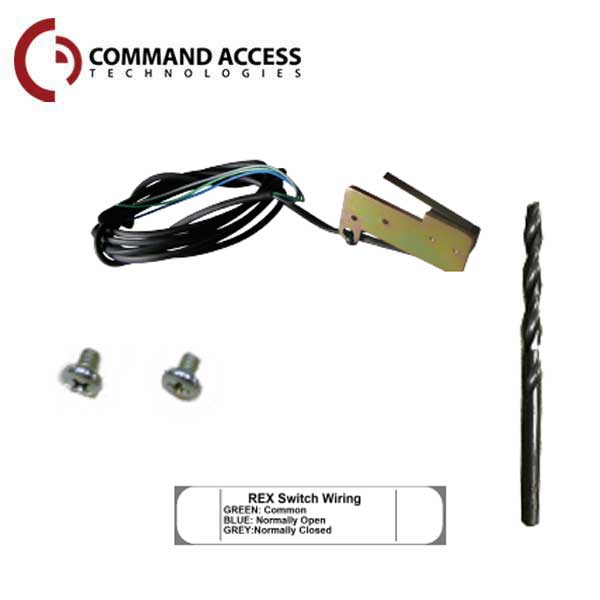

Includes:

  • REX Label
  • REX Switch
  • 2 - Phillips Screws
  • 9/64 drill bit


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Function: Request-to-Exit REX Switch. SPDT
Series: 33/35/98/99 Series
Lock Type: Exit Device
Type: Single Pull Double Throw SPDT
Rating: .5A or 24VAC / VDC
Configuration: Green - Common (C)
Blue - Normally Open (NO)
Gray - Normally Closed (NC)
Warranty: 3 Year Manufacturer's Warranty
