COMPX - C8055 - Disc Cam Lock 1-7/16in - Keyed Alike - Bright Nickel Finish
In Stock
SKU:
COMPX-C8055-KAC415A-14A
NSID:
79243
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $6.99
-
$8.38 - $6.99
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

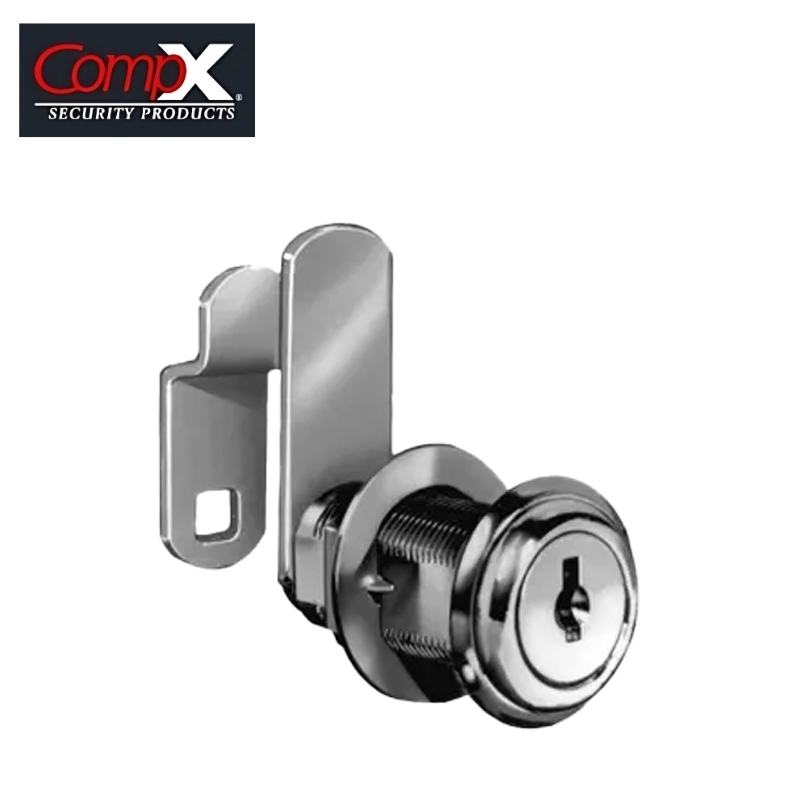

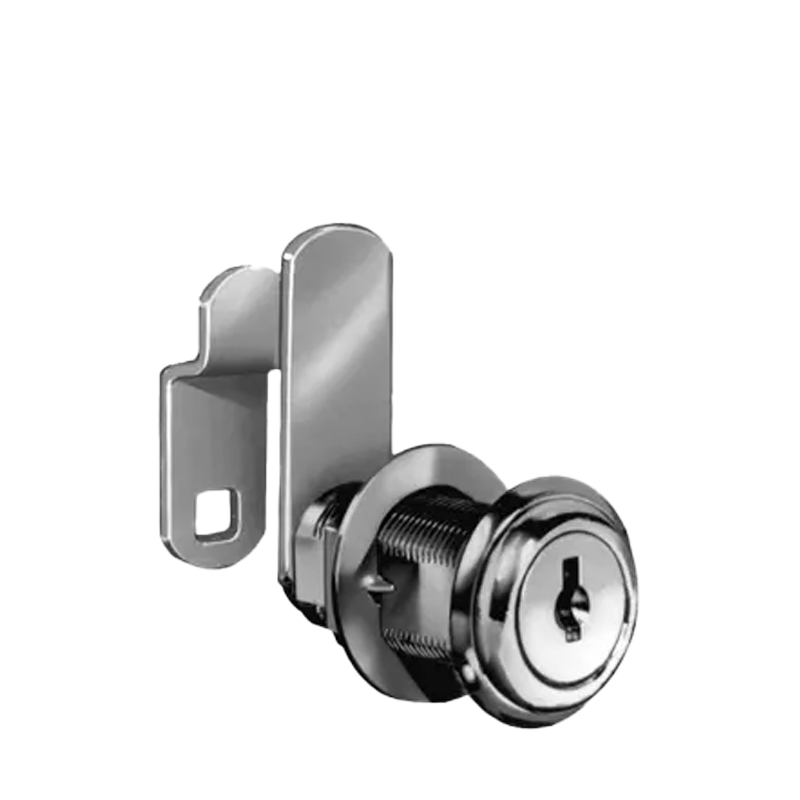

The COMPX® C8055-KAC415A-14A is a dependable disc tumbler cam lock engineered for secure access control in cabinets, drawers, and display cases. Designed to suit both lipped/overlay and flush mounting applications, this lock is built with precision and convenience in mind.
Features:
- Versatile configuration: Supplied with both straight cam (for overlay) and formed cam (for flush), accommodating overlay constructions where the combined material thickness does not exceed the cylinder length.
- Smooth operation: Features a 90° clockwise (CW) cam rotation. The key is removable in both the locked and unlocked positions, enhancing usability.
- Complete mounting kit: Each unit includes two keys, a trim washer, a spur washer for wood installation, a mounting nut, and two cams. (A separate flat washer for metal may be ordered as an accessory.)
| Attribute | Specification |
|---|---|
| Cylinder Length | 1-7/16 in |
| Maximum Material Thickness | 1-1/8 in |
| Mounting Hole Size | 3/4 in (Wood), 0.76" (Metal) |
| Keying Type | Keyed-Alike (KA) — uses key blank D8785 (e.g., KA-415) |
| Finish | Bright Nickel (14A) |
| Cam Turn | 90° clockwise; key removable in both locked and unlocked positions |
| Included Hardware | 2 keys, trim washer, spur washer (for wood), mounting nut, straight and formed cams |
| Cam Length | 1-1/2" (Straight), 1-1/8" (Formed) |
| Cam Offset | 11/32" |
| Key Code | C415A |
