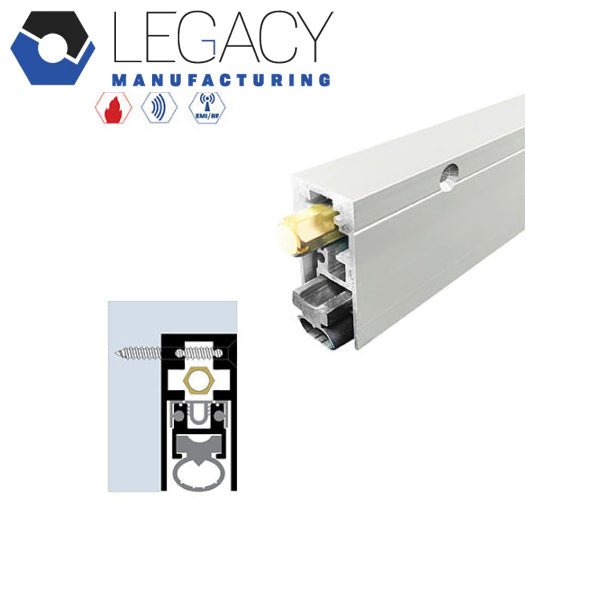

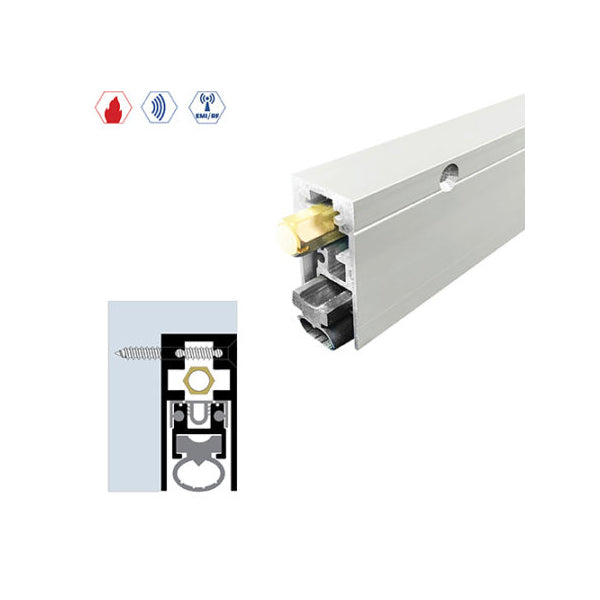

*Discontinued* Legacy Manufacturing - 7663 - Semi-Mortised Automatic Door Bottom - 29/32" x 1-15/16" - White Powder Coat - Optional Length
Out of Stock
SKU:
LGY-7663WP-18
NSID:
- $223.44
-
- $223.44
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
COMPETITOR EQUIVALENT
| LEGACY | NGP | PEMKO | ZERO |
|---|---|---|---|
| 7663 | 520N | 4301APKL | 366AA |
- $223.44
-
- $223.44
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFINISHES
- CA – Clear Anodized
- DB – Dark Bronze Anodized
- MB – Matte Black Powder Coat
- WP – White Powder Coat
options
- EA – Electrical Actuator
- EMI/RFI – Electromagnetic/Radio Frequency Interference
- FL – Fire Label
- FX – Integral Intumescent
- LS – Light Spring
- PULL – Pull
- PV – Pivot Doors
- SF – Security Fasteners
- SL – Sliding Doors
- TD – Top Door Installation
- MB-EC – Matte Black End Cap
FEATURES
- Can be made any size from 12" to 144".
- Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
- 5 million cycles tested.
MATERIALS / SPECIFICATIONS
- Solid Rubber Extrusion is Black.
- Aluminum is Clear Anodized
- Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
- Brass Hex Nut
- Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
- Self-leveling door seal up to maximum 1" drop.
- Replacement neoprene – Part #4563N
- Unit supplied standard with 1 pair of end caps – Part #4163EC-AP.
