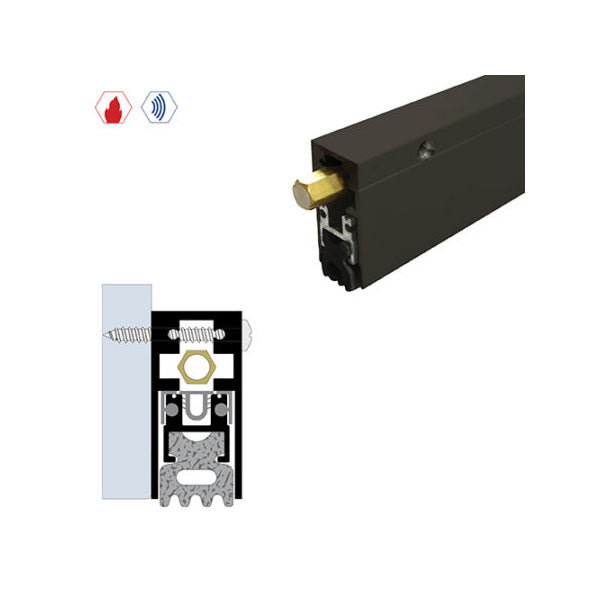

*Discontinued* Legacy Manufacturing - 7163 - Surface Automatic Door Bottom - 29/32" x 1-15/16" - Dark Bronze Anodized Aluminum - Optional Length
Out of Stock
SKU:
LGY-7163DB-18
NSID:
- $211.78
-
- $211.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
COMPETITOR EQUIVALENT
| LEGACY | NGP | PEMKO | ZERO |
|---|---|---|---|
| 7163 | 420N | 430ARL | 361AA |
- $211.78
-
- $211.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xFINISHES
- CA – Clear Anodized
- DB – Dark Bronze Anodized
- MB – Matte Black Powder Coat
- WP – White Powder Coat
OPTIONS
- EA – Electrical Actuator
- FL – Fire Label
- LS – Light Spring
- PULL – Pull
- PV – Pivot Doors
- SF – Security Fasteners
- SL – Sliding Doors
- MB-EC – Matte Black End Cap
FEATURES
- Can be made any size from 12" to 144".
- Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
- 5 million cycles tested.
MATERIALS / SPECIFICATIONS
- Sponge Rubber is Black.
- Aluminum is Clear Anodized.
- Screws are standard (#8 x 1-1/2" SMS self-drilling screws) supplied
- Brass Hex Nut.
- Adjusting the brass nut changes pressure on concealed internal spring to satisfy field conditions.
- Self-leveling door seal up to maximum 1" drop.
- Replacement closed cell sponge neoprene – Part #4363SPR
- Unit supplied standard with 1 pair of end caps – Part #4163EC-AP.
