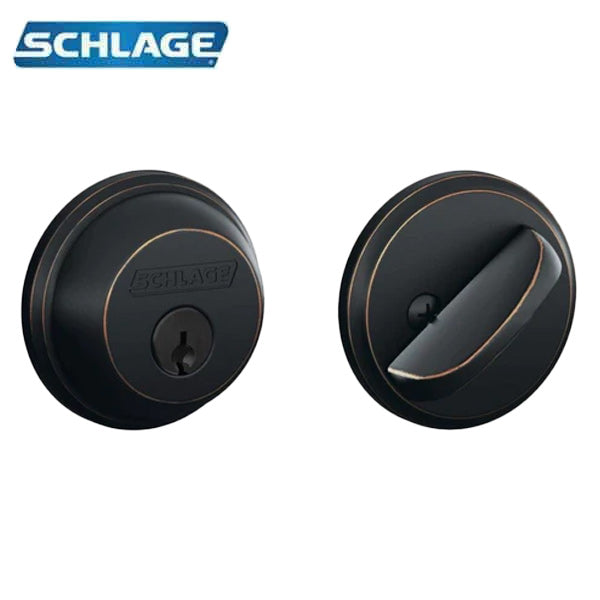

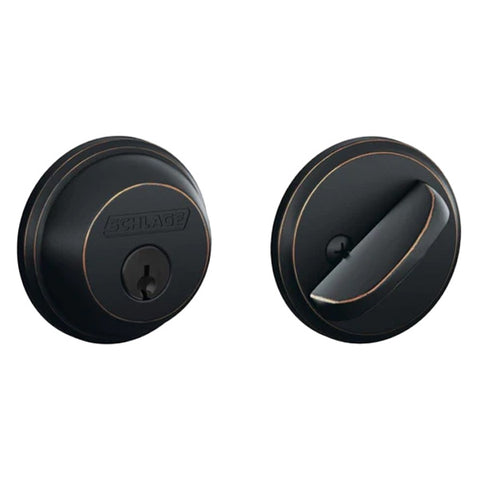

Schlage - B60 - Single Cylinder Deadbolt Lock - 5-Pin - KD - Fire Rated Optional - Antique Bronze - Grade 1
Available to Order
SKU:
SCH-B60-716-KD
NSID:
21395
69111
- $43.45
-
$52.14 - $43.45
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The B60-Series deadbolt is a revolutionary deadbolt that delivers higher security, tougher performance and the ultimate in installation versatility.
Features:
- Use with 1-3/8 in. to 1-3/4 in. door
- Universal deadbolt fits 2-3/8 in. or 2-3/4 in. backset
- Guaranteed to fit on existing, standard pre-drilled doors
- For more than 95 years, Schlage has offered durable door hardware in a range
- of unique style combinations to express any personality
- Deadbolt thrown or retracted by key from outside or by inside turn unit
- Bolt automatically deadlocks when fully thrown
- Lifetime finish and mechanical guarantee (Oil-Rubbed Bronze is only a
- mechanical guarantee)
- Easy installation with Phillips screwdriver
- Unique Snap & Stay design holds deadbolt in place while tightening screws
- Universal latches slide easily into place and require no tools or manual
- adjustments
- Highest industry ratings for residential security, durability, and finish
- Pick and bump resistant
- Certified Commercial Grade 1
- Graded Best in Residential Security, Durability, and Finish
Specifications:
| Grade | Grade 1 |
| Installation | Residential |
| ANSI Number | ANSI/BHMA A156.36-2016 Commercial Grade 1 |
| Finish | 716 |
| Finish Description | Antique Bronze |
| Finish Family | Dark Bronze |
| Function | B60-Single Cylinder Deadbolt Lock |
| ANSI Function | E2152 - Deadlock, Single Cylinder |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 5 |
| Std. Keyway | C |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Door Thickness | 1-3/8 In. - 1-7/8 In. |
| Std. Latch Number | 12-321 |
| Std. Latch Type | Dual Option Latch |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Bolt Projection | 1" Deadbolt |
| Std. Strike Number | 10-116 |
| Std. Strike Type | Round Corner Strike with Reinforcer |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Product Type | Deadbolts |
