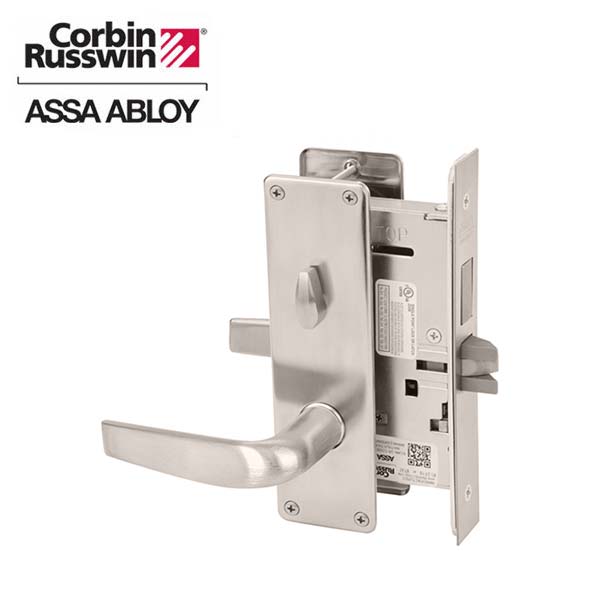

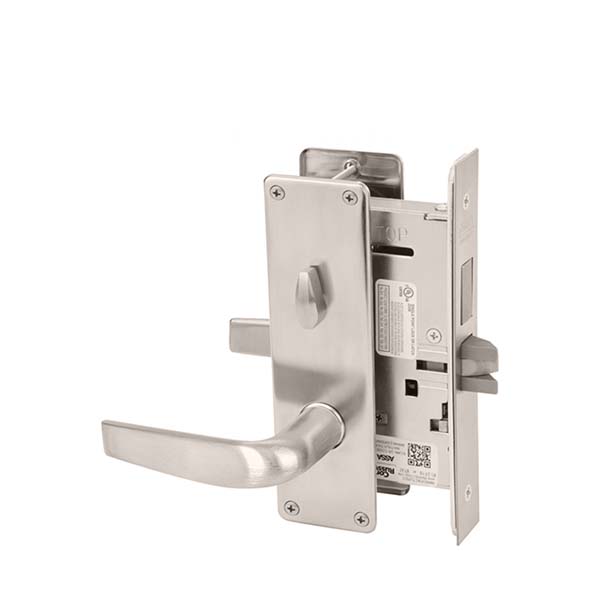

Corbin Russwin - ML2030 - Mechanical Mortise Lock - Privacy Bedroom or Bathroom - CSM Trim - Satin Stainless Steel - Grade 1
Available to Order
SKU:
CRN-ML2030-CSM-630
NSID:
33016
- $545.00
-
$642.00 - $545.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial, and government applications. Constructed of heavy-gauge steel, the lock body features our patented Quick Reversible latch bolt, and a 1” stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels, and other high-use applications.
Features
- The lockset can be re-handed without disassembling the lock case
- Security trims provide a vandal-resistant barrier.
- Multi-function lock body, allowing 12 functions to be configured from one lock body.
- Can be used with new or existing Corbin Russwin key systems, including patented high-security Access 3 cylinders.
- Accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock
- Through-bolted trim designs for proper alignment and increased security.
Specifications
| Construction: | Heavy-gauge Steel |
| Lock Function: | F19 - Privacy Bedroom or Bathroom |
| Door Thickness: | 1-3/4" (44mm) standard |
| Backset: | 2-3/4" |
| Handing: | Factory Handed, but quickly reversible |
| Strike: | ANSI straight lip 4-7/8" x 1-1/4" x 1-1/8" lip to center |
| Latch bolt: | 2-piece mechanical with anti-friction insert, 5/8"x1"x 3/4" throw |
| Deadbolt: | 1" stainless steel deadbolt |
| Cylinder: | IC 6-pin with temporary construction core |
| Keys Included: | 2 |
| Keyway: | L4 |
| Trim: | Lever: Cast Escutcheon: Wrought |
| Certifications: | ANSI/BHMA Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code. |
| Manufacturer's Warranty: | Ten Year Limited |
