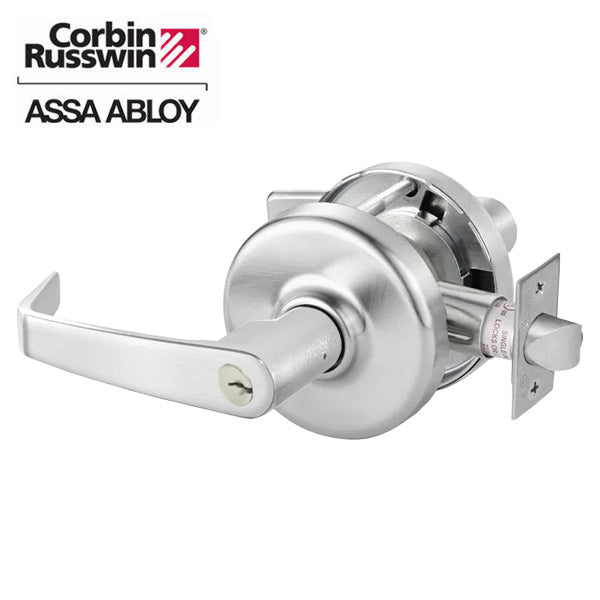

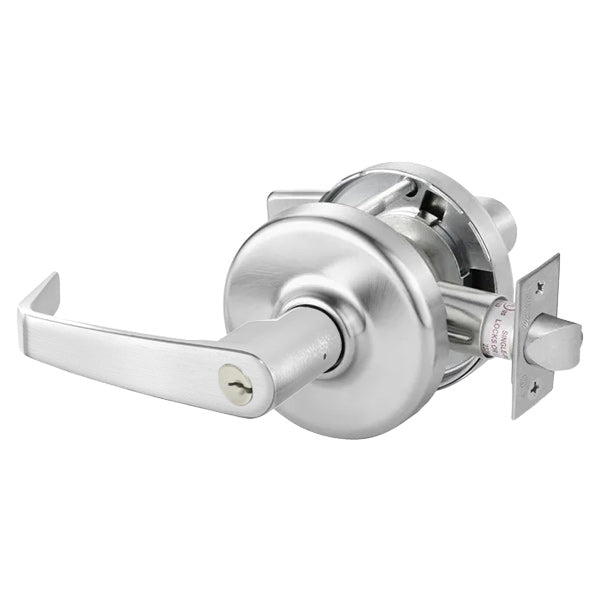

*Discontinued* Corbin Russwin - CL3851 - 2-3/4” Standard Backset - H6 Keyway - New Port Lever - Satin Chrome - Entrance - Grade 2
Out of Stock
SKU:
COR-CL3851-NZD-626
NSID:
67822
- $242.18
-
$290.62 - $242.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Corbin Russwin CL3800 Series is an ANSI/BHMA Grade 2 lever lock which provides a combination of value and performance, the CL3800 Series is designed to be used in light commercial applications, while complementing the look of other Corbin Russwin cylindrical locks.
Features:
- Meets ANSI/BHMA Grade 2 requirements
- UL 3-hour fire rating
- Solid-cast levers and independent lever-return springs prevent lever sag
- Designed to thru-bolt onto door to prevent chassis rotation and ensure proper alignment
- Non-handed
- Available in multiple finishes and lever styles
- Meets ANSI A117.1 accessibility code standards
- Available with non-toxic MicroShield® antimicrobial coating
- $242.18
-
$290.62 - $242.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Benefits:
- Withstands up to 500,000 cycles of use, making it ideal for medium-traffic spaces
- Ensures a code-complaint installation and safe egress in the event of fire
- Product performs consistently as expected throughout its lifetime
- Resistant to vandalism and other malicious attacks
- Easy to install
- Complements the look of any space
- Ensures accessibility for occupants with disabilities
- Inhibits the growth of bacteria, algae, yeast, fungus, mold and mildew for the life of the product
| ANSI/BHMA Code | A156.2 |
| ANSI/BHMA Series | Series 4000 |
| Backset Depth (Standard) | 2 3/4" |
| Cylinder Format | Conventional |
| Cylinder Pins | 6 pin |
| Door Thickness (Standard) |
1 3/4" |
| Door Type | Hollow Metal, Wood |
| Handing | Non-handed |
| Latchbolt Throw | 1/2" |
| Maximum Backset | 5" |
| Maximum Door Thickness | 2 1/4" |
| Minimum Backset | 2 3/8" |
| Minimum Door Thickness | 1 3/8" |
| Number of Keys | 2 |
| Strike Type (Standard) | ANSI Curved Lip |
| UL Listed | Yes |
| ULC Listed | Yes |
| Manufacturer Warranty | 5 year limited warranty |
