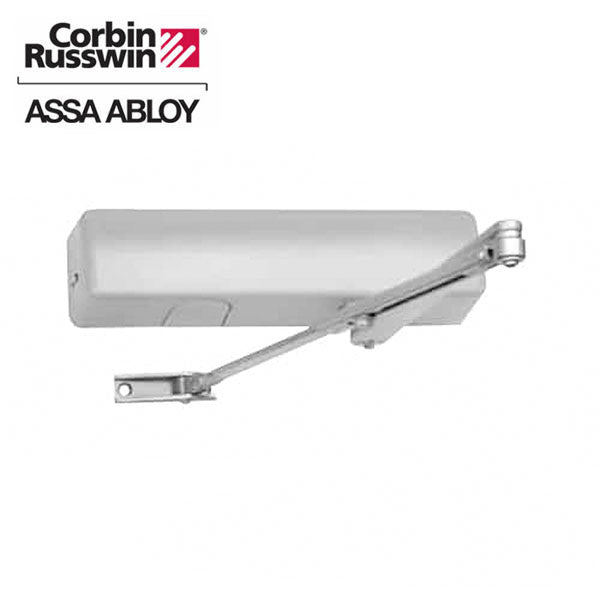

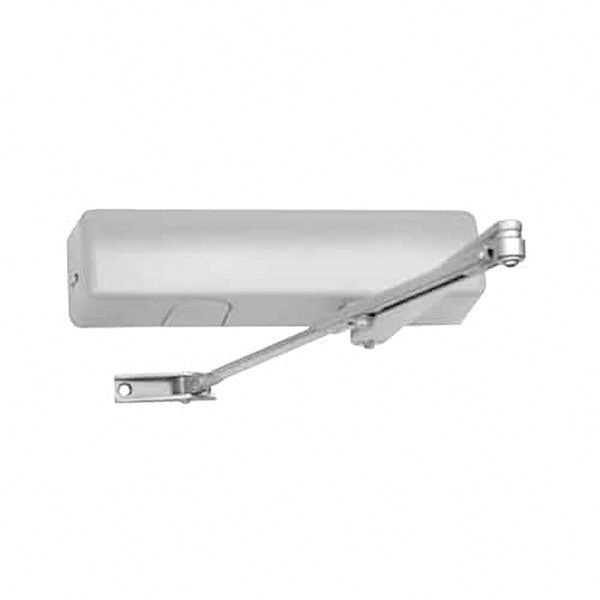

*Discontinued* Corbin Russwin - DC3220 - Full Cover Surface Door Closer - Heavy-Duty Parallel - Adjustable Size 1-6 - Top Jamb Mount - Non-Handed - Aluminum - Grade 1

*Discontinued* Corbin Russwin - DC3220 - Full Cover Surface Door Closer - Heavy-Duty Parallel - Adjustable Size 1-6 - Top Jamb Mount - Non-Handed - Aluminum - Grade 1

Discontinued
SKU CRN-DC3220-689 NSID 37254
$339.21$407.05On Sale You save $67.84 (17%)


The mid-priced, cost-effective choice for high-traffic situations. The DC3000 Series Door Closers fulfill security and life safety requirements by ensuring reliable latching for access control and fire code compliance, along with ease of operation and precise adjustability for barrier-free code compliance. Ideal for virtually all door openings and draft conditions in both new construction and renovations.

Features

  • Meets or exceeds ANSI/BHMA A156.4 Grade 1 requirements
  • Compliance with building and barrier-free codes
  • Up to full 180° door opening
  • One-piece seamless steel spring tube seals in hydraulic fluid
  • Tapered valves allow precise adjustment
  • Cast iron body
  • Quik-Install™ mounting bracket speeds installation, reducing cost and errors
  • Fifteen-year limited warranty
  • UL10C
  • Powder painted arms and retrofit plates
View full details

Details

Specifications

Cover

11-5/8" (295mm) x 3" (76mm) x 2-3/4" (70mm) deep
Finish Silver aluminum
Arms Non-hold Open Arm Standard
Templating Quik-Install™ mounting bracket standard.
Handing Non-Handed
Fasteners Sex nuts and bolts (SNBs) (1-3/4" minimum thickness)
Size Fully adjustable spring power to accommodate sizes 1 through 6
Mounting Standard: regular or top jamb
Fluid Standard: high lubricity extreme temperature hydraulic fluid.
Body construction Cast Iron
Fire Rated Conform to 5lbf maximum door opening force requirement for non-fire rated interior hinge doors according to America with Disabilities Act (ADA)
Certifications ANSI BHMA Meets A156.4, Grade 1.
Meets A117.1
Manufacturer's Warranty 15 Year
