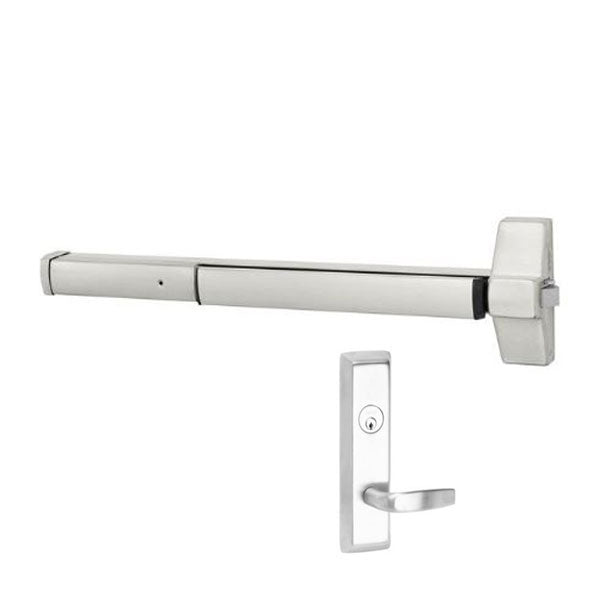

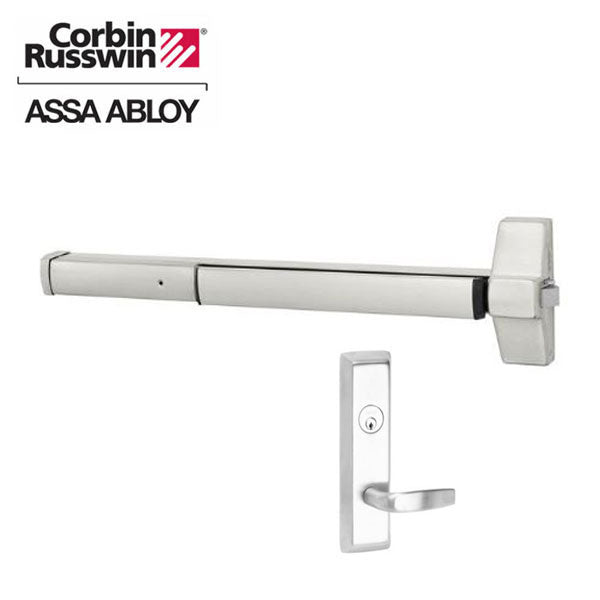

*Discontinued* Corbin Russwin - ED5200 - Panic Rim Exit Device w/ Motorized Latch Retraction - 36" - Storeroom - 24VDC - Satin Stainless Steel - Grade 1
*Discontinued* Corbin Russwin - ED5200 - Panic Rim Exit Device w/ Motorized Latch Retraction - 36" - Storeroom - 24VDC - Satin Stainless Steel - Grade 1
CRN-ED5200-C959ET-6P-MELR-GA-630-RHR
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware. The ED5000 Series exit devices are ideal for environments that require durable and attractive security solutions that will last the life of the building. All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards.
Features:
- Modular construction, maintenance-free design
- Panic listed
- Designed for high use and abuse applications
- Motorized latch retraction
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5 year warranty
- Environmental Product Declaration (EPD) certified
- ANSI/BHMS Grade 1
Details
Specifications:
| Style: | Rim exit device |
| Bar Length: | 36" |
| Handing: | Right hand reversible |
| Door Thickness: | 1-3/4" (standard) |
| Projection: | 3-1/4" when active 2-3/4" dogged |
| Lever: | Citation |
| Power supply: | 24VDC |
| Motor Latch Retraction: | .65A amp max during retraction, .2 amp holding-continuous duty |
| Timer: | Digital retraction timer (0-20 seconds) |
| Hinges: | Standard electric hinge |
| Strike | Surface-mounted 3/8" (10mm) diameter roller strike |
| Stile: | Minimum 4-1/2" wide |
| Door Applications: | 1-3/4" Metal and Wood Doors |
| Dogging: | Single-point 1/4 turn hex key dogging. |
| Latchbolt: | 3/4" (19mm) throw, stainless steel pullman-type with stainless steel deadlocking latch |
| Fasteners: | Machine screws and wood door fasteners. |
| Cylinder: | Conventional 6-pin, L4 keyway, 0-bitted |
| Keys Included: | two nickel silver keys |
| Certifications: | Meets A156.3, Type 1, Grade 1 Meets A117.1 Accessibility Code Meets UL 305, NFPA, and ADA Standards |
| Warranty: | 5 Year limited warranty |
