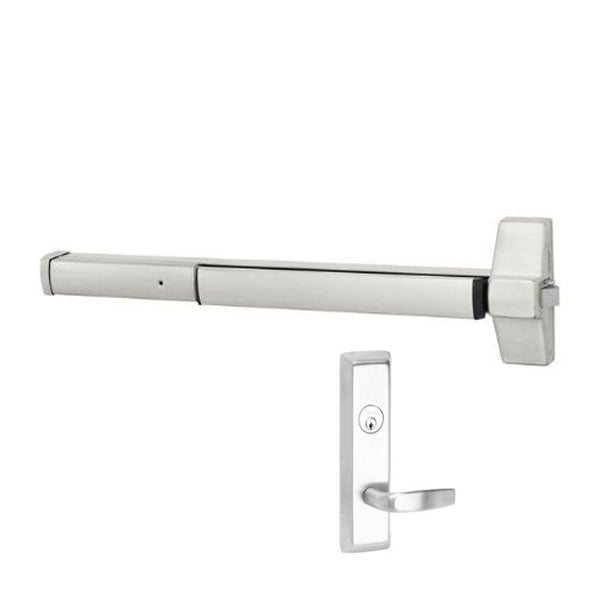

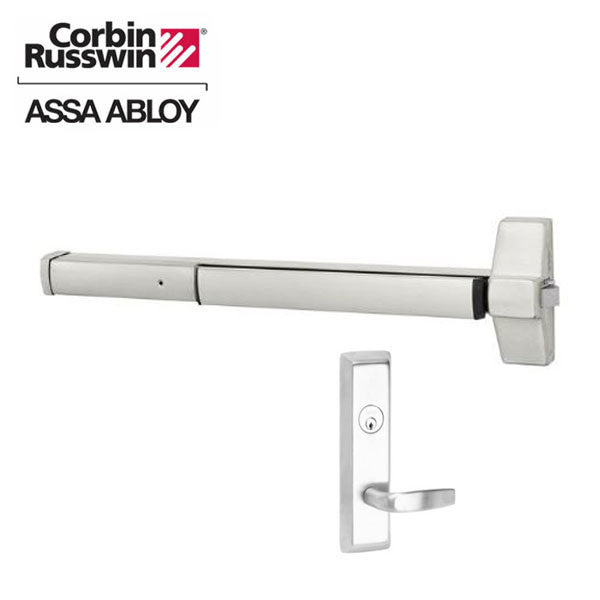

*Discontinued* Corbin Russwin - ED5200 - Panic Rim Exit Device - 36" - Storeroom - Satin Stainless Steel - Grade 1 - RHR
*Discontinued* Corbin Russwin - ED5200 - Panic Rim Exit Device - 36" - Storeroom - Satin Stainless Steel - Grade 1 - RHR
CRN-ED5200-C959ET-6P-GA-630-RHR
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware. The ED5000 Series exit devices are ideal for environments that require durable and attractive security solutions that will last the life of the building. All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards.
Features:
- Modular construction, maintenance-free design
- Panic listed
- Designed for high use and abuse applications
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- 5 year warranty
- Environmental Product Declaration (EPD) certified
- ANSI/BHMS Grade 1
Details
Specifications:
| Style: | Rim exit device |
| Bar Length: | 36" |
| Handing: | Right hand reversible |
| Door Thickness: | 1-3/4" (standard) |
| Projection: | 3-1/4" when active 2-3/4" dogged |
| Latch: | Pullman type with stainless steel deadlocking latch |
| Strike | Surface-mounted 3/8" (10mm) diameter roller strike |
| Stile: | Minimum 4-1/2" wide |
| Door Applications: | 1-3/4" Metal and Wood Doors |
| Dogging: | Half turn hex dogging standard |
| Latchbolt: | 3/4" (19mm) throw, stainless steel pullman-type with stainless steel deadlocking latch |
| Cylinder: | Conventional 6-pin, L4 keyway, 0-bitted |
| Keys Included: | two nickel silver keys |
| Certifications: | Meets A156.3, Type 1, Grade 1 Meets A117.1 Accessibility Code Meets UL 305, NFPA, and ADA Standards |
| Warranty: | 5 Year limited warranty |
