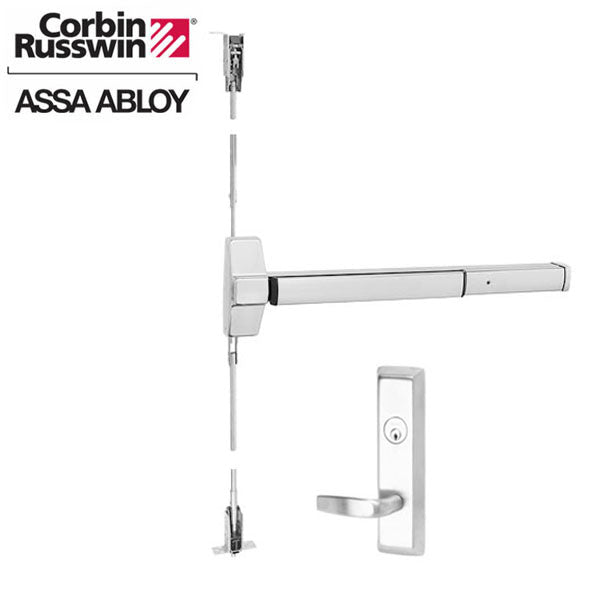

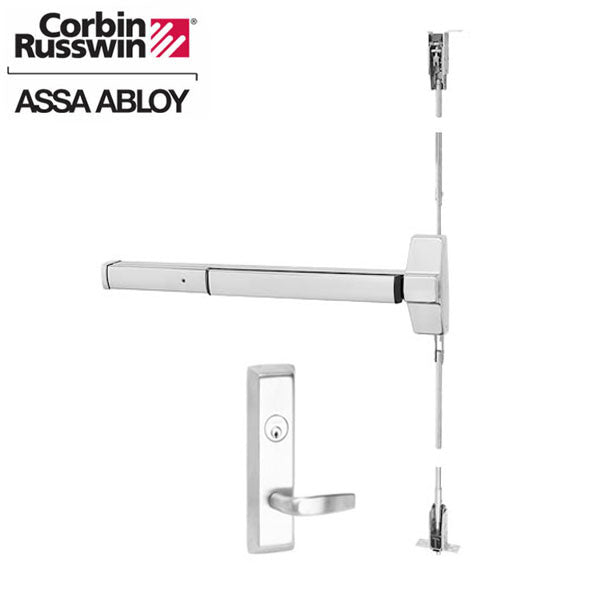

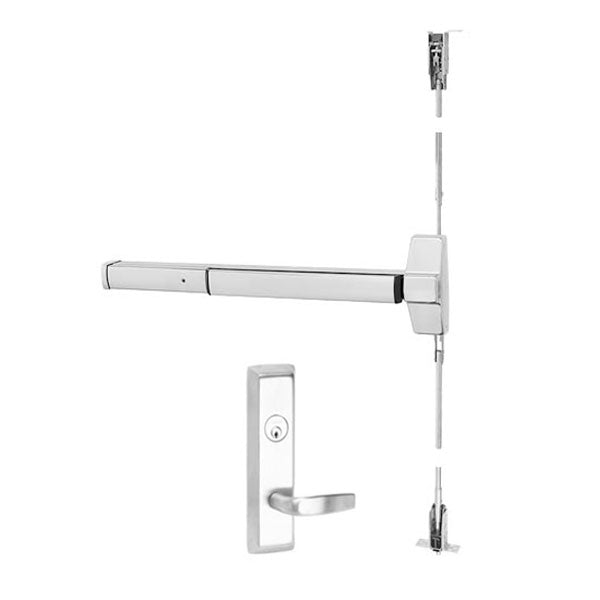

*Discontinued* Corbin Russwin - ED5860 - Concealed Vertical Rod Panic Exit Device w/ Motorized Latch Retraction - 36" - Storeroom - Satin Stainless Steel - Grade 1 - LHR/RHR
*Discontinued* Corbin Russwin - ED5860 - Concealed Vertical Rod Panic Exit Device w/ Motorized Latch Retraction - 36" - Storeroom - Satin Stainless Steel - Grade 1 - LHR/RHR
CRN-ED5860-C959ET-6P-M58-MELR-GA-630
Over the past 100 years, Corbin Russwin has been well-known for weaving pleasing aesthetics and inventive designs into architectural door hardware. The ED5000 Series exit devices are ideal for environments that require durable and attractive security solutions that will last the life of the building. All exit devices manufactured by Corbin Russwin undergo rigorous testing, both in the lab and field, with testing procedures that go beyond industry standards. With Shim Kit
Features:
- Modular construction, maintenance-free design
- Motorized Latch Retraction
- Concealed rods for security and aesthetics
- Panic listed
- Designed for high use and abuse applications
- Made from 61% post-consumer recycled content as per LEED MR credit 4
- Includes a Shim kit for vision light
- 5 year warranty
- Environmental Product Declaration (EPD) certified
- ANSI/BHMS Grade 1
Details
Specifications:
| Handing: | Field reversible |
| Bar Length: | Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door. |
| Door Thickness: | 1-3/4" (44mm) standard |
| Projection: | 3-1/4" (83mm) active, 2-3/4" (70mm) dogged |
| Dogging: | Standard on panic devices; single-point 1/4 turn hex key dogging. |
| Door Material: | Metal or Wood |
| Door Thickness: | 1 3/4 In |
| Fasteners: | Machine screw and wood door fastener is included |
| Strike: | Roller type; Bottom: flush mounted. |
| Stile: | Minimum width 4-1/2" (114mm) |
| Latchbolt - Top: | 3/4" (19mm) throw, stainless steel pullman-type with automatic deadlatching. |
| Latchbolt - Bottom: | 5/8" (16mm) throw deadbolt, held retracted during door swing. |
| Cylinder: | Conventional 6-pin, L4 keyway, 0-bitted |
| Keys Included: | two nickel silver keys |
| Certifications: | Meets A156.3, Type 1, Grade 1 Meets A117.1 Accessibility Code Meets UL 305, NFPA, and ADA Standards |
| Warranty: | 5 Years limited warranty |
