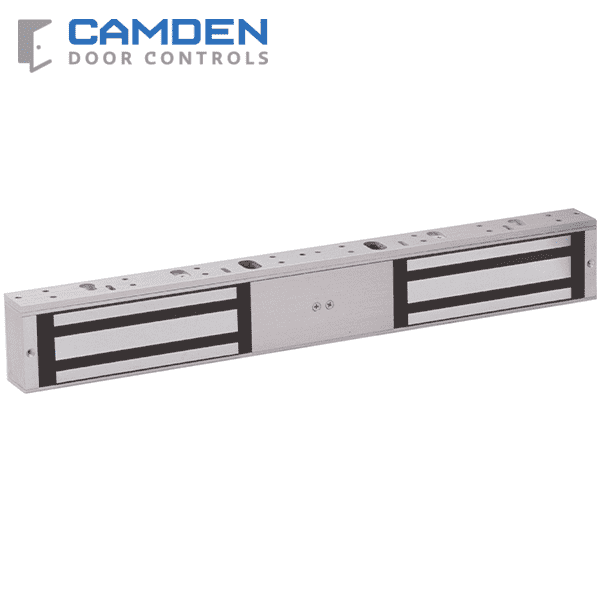

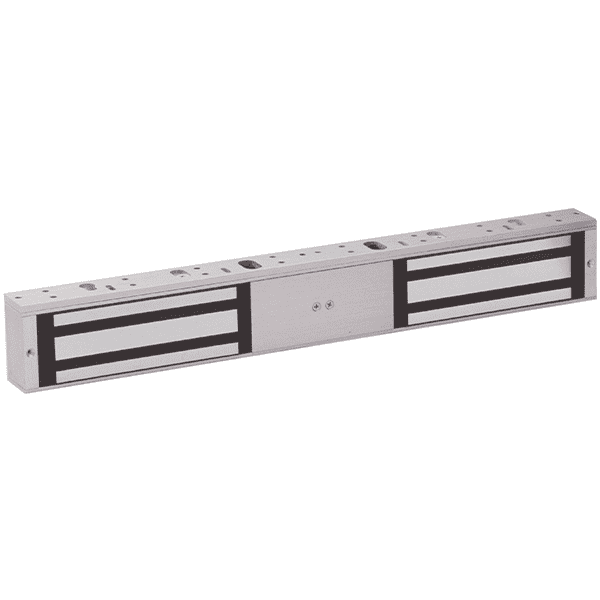

Camden CX-92S-12 - Double Door Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed
Camden CX-92S-12 - Double Door Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed
Camden CX-92S-12 - Double Door Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed
Camden CX-92S-12 - Double Door Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed
Camden CX-92S-12 - Double Door Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed

Camden CX-92S-12 - Double Door Mag Lock - 1200 lb Holding Force - 12/24 VDC - UL/ULC Listed

$222.47 $380.00
Available: In Stock
Wishlist
  • Product SKU: CMD-CX-92S-12
  • CMD-CX-92S-12
    Item number: 6890

    Camden CX-92 Series double door magnetic locks offer the best performance and value. There are 600 and 1,200 Lb. models available with the option of a built-in 'TDS' module, that provides an adjustable timer, lock sensor, door status switch, relay and LED.

    • 600 and 1,200 Lb. models are UL and ULC listed
    • Weather and vandal resistant construction proven over thousands of installations
    • Compatible with all access/egress systems
    • Field selectable 12/24 VDC operation
    • On board MOV power surge protection prevents damage to mag lock
    • A wide range of mounting brackets and spacers available
    • Lifetime warranty
    $222.47

Specifications:

Voltage:  12/24 VDC
Current Draw:  2 x 500 mA @ 12 VDC
2 x 250 mA @ 24 VDC
Temp Range:  5°F to 122°F (-15°C to 50°C)
Contact Rating:  TDS Models Only
Bond Sensor: 1 A @ 30 VDC
Door Status Switch: 0.5A @ 30V AC/DC
Time Delay:  TDS Models Only: 0 to 30 Seconds
Dimensions:  CX-92S-06: 19-5/8" x 1-7/8" x 11/16"
(498m x 48mm x 17mm)
CX-92S-12: 21" x 2-7/8" x 1-7/8"
(533mm x 73mm x 48mm)
Armature Plate:
600 Lbs.: 2 x 7-15/16" x 2-3/16" x 5/8"
2 x (202mm x 56mm x 16mm)
1,200 Lbs.: 2 x 7-15/16" x 3" x 5/8"
2 x (202mm x 76mm x 16mm)



Spec Sheets
  • CX Series Mag Locks_Spec Sheet_R3 pdf 0.91 DOWNLOAD
Reference Guides
  • Camden Magnetic Lock Cross Reference pdf 0.14 DOWNLOAD
  • Guide To Code Compliant Installation of Magnetic Locks pdf 0.77 DOWNLOAD
Manuals
  • CX-91S and 92S-06_Manual_R2 pdf 0.38 DOWNLOAD
  • CX-91S and 92S-12_Manual_R2 pdf 0.38 DOWNLOAD
