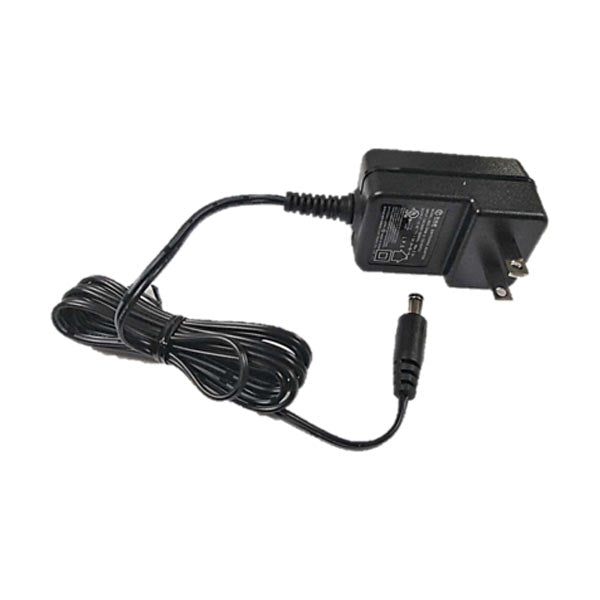

Dahua / 12 VDC, 1 A Power Adapter / DH-ADS-12AM-12
Dahua / 12 VDC, 1 A Power Adapter / DH-ADS-12AM-12
Dahua / 12 VDC, 1 A Power Adapter / DH-ADS-12AM-12
Dahua / 12 VDC, 1 A Power Adapter / DH-ADS-12AM-12
Dahua / 12 VDC, 1 A Power Adapter / DH-ADS-12AM-12

Dahua / 12 VDC, 1 A Power Adapter / DH-ADS-12AM-12

$19.78 $21.58
Available: In Stock
Wishlist
  • Product SKU: DH-ADS-12AM-12
  • DH-ADS-12AM-12

    • 12 VDC, 1 A Power Adapter
    • Supports 100 VAC to 240 VAC Wide-range Voltage Input
    • Meets the Demands of Voltage Fluctuation
    • Accurate Over-current and Over-voltage Protection
    • Two-year Warranty (for products sold through an authorized Dahua Dealer)
    • Become a registered dealer of Dahua
    • Call 1-800-878-6604 for Dealer Prices!


    $19.78

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)



Specifications

Electrical
Input 100 VAC to 240 VAC, 50/60 Hz
Output 12 VDC, 1 A
Category Type UTP CAT 5E/6
Protection
Protections Surge
Over-current
Voltage Load
ESD IEC61000-4-2
±4 kV Contact; ±8 kV Air
Environmental
Operating Temperature –10° C to +55° F (14° F to 131° F)
Operating Humidity < 90%, Relative
Physical Properties
Dimensions (L x W x H) 60.80 mm x 37.80 mm x 33.50 mm
(2.39 in. x 1.49 in. x 1.32 in.)
Installation Mode Pluggable Installation
Color Black
Input Plug 2-pin North American Plug
Outgoing Cord 24 AWG, 1500.0 mm (59.06 in.)
DC Plug 5.50 mm x 2.10 mm x 10.0 mm
(0.22 in. x 0.08 in. x 0.39 in.)
Certifications
Safety
UL


Downloads

Data Sheet

DH-ADS-12AM-12

  • 12 VDC, 1 A Power Adapter
  • Supports 100 VAC to 240 VAC Wide-range Voltage Input
  • Meets the Demands of Voltage Fluctuation
  • Accurate Over-current and Over-voltage Protection
  • Two-year Warranty (for products sold through an authorized Dahua Dealer)
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices!



Specifications

Electrical
Input 100 VAC to 240 VAC, 50/60 Hz
Output 12 VDC, 1 A
Category Type UTP CAT 5E/6
Protection
Protections Surge
Over-current
Voltage Load
ESD IEC61000-4-2
±4 kV Contact; ±8 kV Air
Environmental
Operating Temperature –10° C to +55° F (14° F to 131° F)
Operating Humidity < 90%, Relative
Physical Properties
Dimensions (L x W x H) 60.80 mm x 37.80 mm x 33.50 mm
(2.39 in. x 1.49 in. x 1.32 in.)
Installation Mode Pluggable Installation
Color Black
Input Plug 2-pin North American Plug
Outgoing Cord 24 AWG, 1500.0 mm (59.06 in.)
DC Plug 5.50 mm x 2.10 mm x 10.0 mm
(0.22 in. x 0.08 in. x 0.39 in.)
Certifications
Safety
UL
