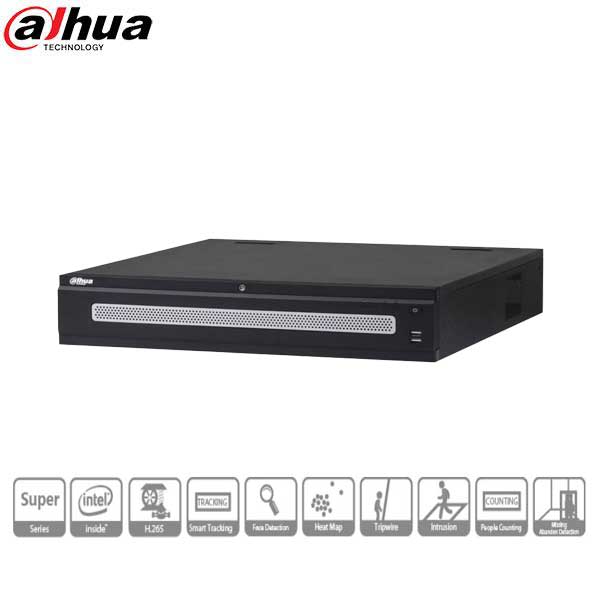

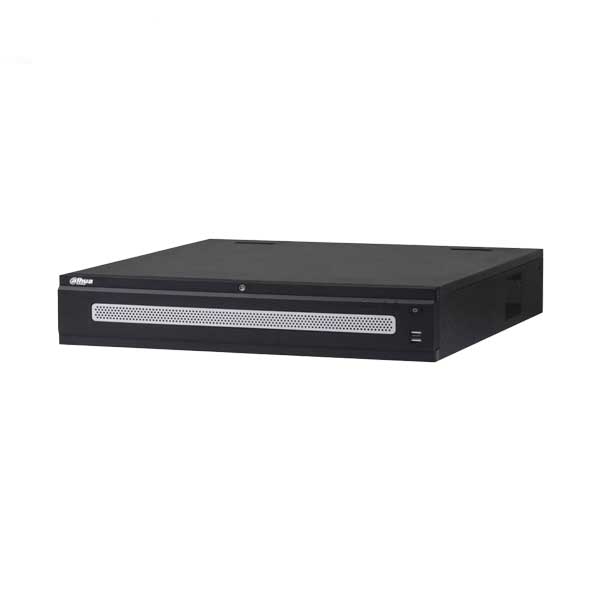

*Discontinued* Dahua / 128 Channel / 12MP / NVR / 8 SATA / No HDD / NVR6A08-128-4KS2
- $2,748.58
-
- $2,748.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-NVR6A08-128-4KS2
Dahua's next generation network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
Features
- Intel Processor
- Max 128 IP Camera Channels with IVS Recording
- (additional PoE switches required)
- Max 384 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Supports RAID 0 /1/5/6/10
- Smart Tracking
- Spot Output
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $2,748.58
-
- $2,748.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| System | |
| Main Processor | Intel Quad-core Processor |
| Operating System | Embedded LINUX |
| Display | |
| Interface | 2 HDMI (up to 3840 x 2160, Different Source), 1 VGA |
| Spot Output | HDMI 2 |
| Native Output Resolution | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Maximum Decoding | 4ch @12MP 20fps 4ch @8MP 30fps 8ch @8MP 15fps 5ch @6MP 30fps 6ch @5MP 30fps 8ch @5MP 25fps 8ch@ 4MP 30fps 9ch @4MP 20fps 12ch @3MP 25fps 8ch@1080p 60 fps 16ch @1080p 30fps 25ch@720p 30fps |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank |
| Alarm Input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 8 Channel, NO/NC Programmable, Green Terminal Interface |
| Tracking Trigger Event | Targeting, Zoom, Tracking, Recording, Snapshot, Alarm, etc. |
| Playback and Backup | |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/Internal SATA burner/eSATA Device |
| Storage |
| Internal HDD | 8 SATA III Ports, No HDDs, Sold Separately |
| HDD Mode | Single, Raid 0/1/5/6/10 (Supports Global HDD Hot-spare) Enterprise-level HDD Recommended |
| eSATA | 1 eSATA Port |
| Auxiliary Interface | |
| Front Cover | Support Hot-swap |
| USB | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| RS232 | 1 Port for PC Communication and Debug |
| RS485 | 1 Port for PTZ Control |
| Audio and Video | |
| IP Camera Input | 128 Channel (additional PoE switches required) |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Recording | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Supported IP Camera Resolution |
12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p |
| Maximum Incoming Bandwidth | 384 Mbps |
| Bit Rate | 1 Kbps to 20 Mbps per Channe |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Camera Blank, Video Loss), Alarm, Stop |
| Record Interval | 1 to 120 minutes (default: 60 minutes) Pre-record: 1 to 30 s Post-record: 10 to 300 s |
| Network | |
| Ethernet | Two (2) RJ-45 Ports (10/100/1000 Mbps) |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Electrical | |
| Power Supply | 110 to 240 VAC, 50/60 Hz |
| Power Consumption | < 20 W, without HDD |
| Construction | |
| Dimensions | 444.0 mm × 454.90 mm × 90.40 mm (17.4 in. x 17.9 in. x 3.5 in.) |
| Installation | 19-in. Rack-mounted (includes rack mount ears) |
| Certifications | EN, UL, FCC |
Downloads:
Data Sheet
