DH-NVR4216-16P-I-8TB

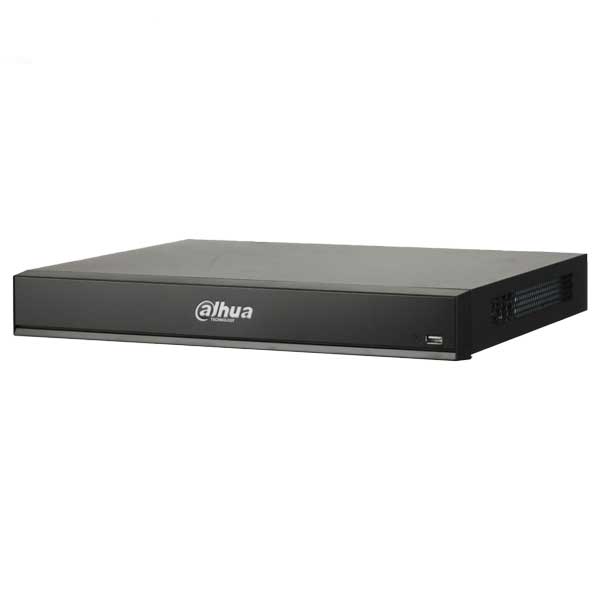

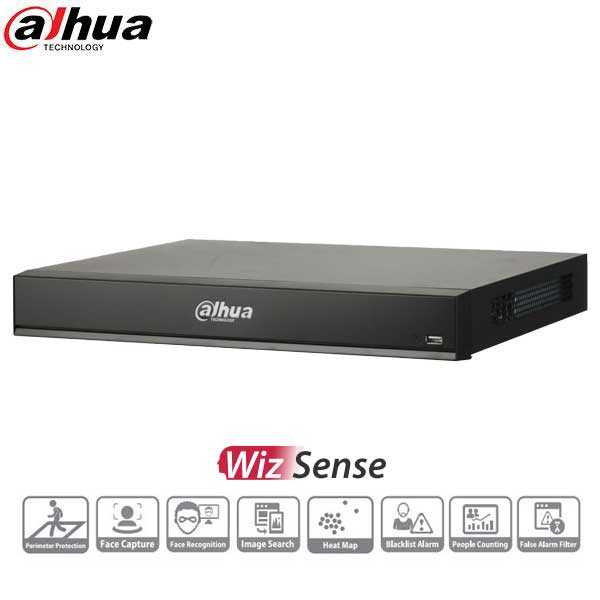

The Dahua DHI-NVR4216-16P-I combines Analytics+ algorithms with Dahua's ePoE technology into an all-in-one network video recorder. This NVR uses a powerful multi-core processor to provide 4K resolution processing for applications where impeccable image details are required. In addition, the NVR can be employed as edge storage, central storage, or backup storage with an intuitive shortcut operation menu for remote management and control. The DHI-NVR4216-16P-I is ideal for applications that require entrance/exit management, where knowing who is coming and going is a valuable asset.
Features
- Maximum 200 Mbps Incoming Bandwidth
- 8 TB Pre-installed Hard Drive
- 16 IP Channel Video Access
- Smart H.265+ and Smart H.264+ Video Compression
- Perimeter Protection with 10 Rule Definitions per Channel (up to 4 channels)
- Video Stream Face Recognition (up to 2 channels)
- Processes 12 Facial Images per Second
- Facial Database Management, Stores up to 20,000 Faces
- Stranger Mode to Detect Faces not Stored in Database
- 16 PoE Ports, Ports 1 to 8 Support ePoE and EoC Signal Transmission up to 800m (2625 ft)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Specification
| System | |
| Main Processor | Multi-core Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection | |
| Performance | • Four (4) channels • 10 Tripwire/Intrusion rules per channel |
| Object Classification | • Human or Vehicle • Secondary Recognition for Tripwire and Intrusion |
| Search | • Search by object classification (human or vehicle) |
| Analytics+ Face Recognition | |
| Performance | • Process 12 facial images per second • Up to two (2) channels of video stream face recognition |
| Stranger Mode | • Detects a face not stored in the IVSS database. • Similarity Threshold set manually |
| Search by Image | • Up to eight (8) target face image searches simultaneously. • Supports Similarity Threshold for each target face image. |
| Database Management | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation |
| Audio and Video | |
| IP Camera Input | 16 Channels |
| Audio | Input: One (1) Channel, RCA Output: (1) Channel, RCA |
| Display | |
| Interface | One (1) HDMI Output One (1) VGA Output |
| Native Output Resolution - HDMI | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720 1024 x 768 |
| Native Output Resolution - VGA | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Maximum Decoding | Two (2) Channels of 8 MP at 30 fps Eight (8) Channels of 1080p at 30 fps |
| Multi-screen Display | 1, 4, 8, 9, 16 |
| Recording | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Supported IP Camera Resolution |
12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, CIF (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Maximum Incoming Bandwidth | 200 Mbps (80 Mbps when Analytics+ functions enabled) |
| Maximum Recording Bandwidth | 200 Mbps (80 Mbps when Analytics+ functions enabled) |
| Bit Rate | 16 Kbps to 20 Mbps per channel |
| Record Mode | Manual, Schedule (Continuous, Motion Detection, Alarm, IVS) |
| Record Interval | 1 to 120 minutes (default: 60 minutes) Pre-record: 1 to 30 s Post-record: 10 to 300 s |
| Video Detection and Alarm | |
| Trigger Events | Buzzer, Voice Prompt, Email, Snapshot, Recording, Alarm Out, PTZ Activation, Tour, Alarm Upload |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18); Video Loss, Tampering, and Scene Change |
| Alarm Inputs | Four (4) Channels |
| Relay Outputs | Two (2) Channels |
| Playback and Backup | |
| Sync Playback | 1, 4, 9, 16 |
| Search Mode | Time and Date, Alarm, Motion Detection, and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device, Network |
| Network | |

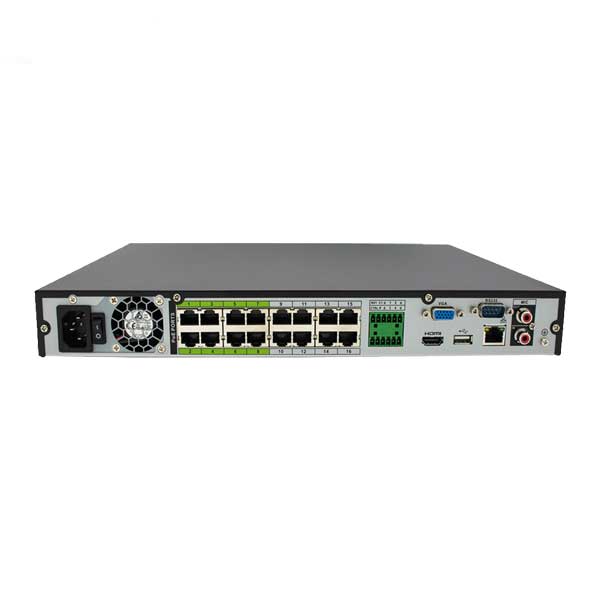

| Interface | One (1) RJ-45 Port (10/100/1000 Mbps) |
| PoE | 16 PoE Ports (IEEE802.3af/at) |
| ePoE and EoC | Ports 1 through 8 |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Center, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P |
| Maximum User Access | 128 Users |
| Mobile Operating Systems | IOS, Android |
| Interoperability | ONVIF Profile S, SDK, CGI |
| Storage | |
| Internal HDD | Two (2) SATA III Ports, 8 TB capacity for each HDD |
| Auxiliary Interface | |
| USB | One (1) USB 2.0 Port, rear One (1) USB 2.0 Port, front |
| RS232 | One (1) Port for PC Communication and Keyboard |
| Electrical | |
| Power Supply | Single, 100 VAC to 240 VAC, 50/60 Hz, 3.5 A |
| Power Consumption | NVR: < 6.1 W, without HDD |
| PoE Budget | • 130 W Total Rated Power • Maximum 25.5 W for a single port |
| Construction | |
| Dimensions - NVR | 1U, 375.0 mm x 321.0 mm x 53.80 mm (14.76 in. x 12.64 in. x 2.14 in.) |
| Dimensions -NVR with PFH101 Rack Mount Tray | 482.60 mm x 326.48 mm x 53.80 mm (19.0 in. x 12.85 in. x 2.14 in.) |
| Installation | Standard 19-in. Rack-mount |
| Certifications | UL, EN, CAN/CSA, FCC CFR, ANSI |
| Warranty | 5 Years |
