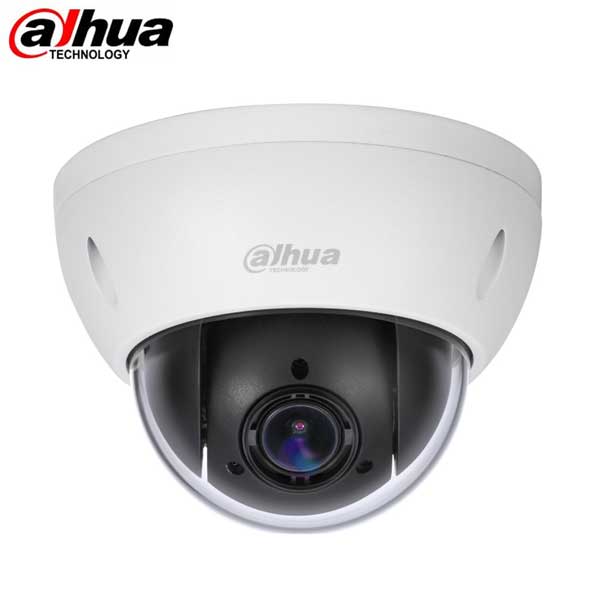

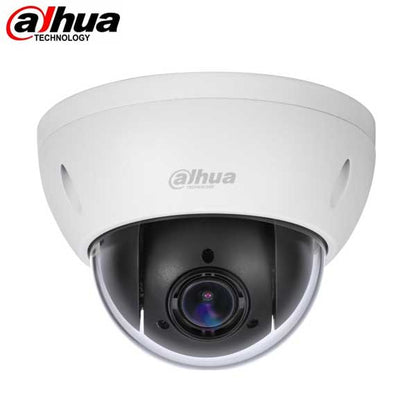

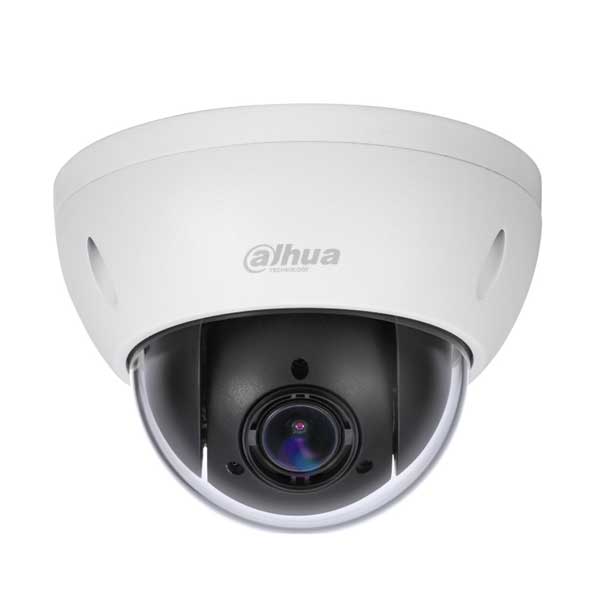

*Discontinued* Dahua / 2MP / PTZ Camera / 4x Zoom / 2.7-11mm Lens / WDR / IP66 / IK10 / DH-22204ICLB
- $383.38
-
- $383.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-22204ICLB
The 2 MP Starlight PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 4x optical zoom lens, and provides an all in one solution to capture video surveillance images for indoor or outdoor applications. The camera offers IP66 Ingress Protection to extend its use to the harshest environments. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- 4x Optical Zoom
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
- True Wide Dynamic Range (120 dB), 3D DNR
- IP67 Ingress Protection and IK10 Vandal Resistance
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $383.38
-
- $383.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specifications
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.05 lux at F1.6 B/W: 0.005 lux at F1.6 |
| Lens | |
| Focal Length | 2.7 mm to 11 mm |
| Max. Aperture | F1.6 to F2.70 |
| Angle of View | Horizontal: 30° to 112.5° Vertical: 19.9° to 54.2° Diagonal: 40.6° to 122.3° |
| Optical Zoom | 4x |
| Focus Control | Auto, Semi-automatic, Manual |
| Iris Control | Fixed |
| Close Focus Distance | 500 mm to 1000 mm (19.69 in. to 39.37 in.) |
| DORI Distance | |
| Detect (8 ppf) | 120.0 m (393.70 ft) |
| Observe (19 ppf) | 48.0 m (157.48 ft) |
| Recognize (38 ppf) | 24.0 m (78.74 ft) |
| Identify (76 ppf) | 12.0 m (39.37 ft) |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 355° endless Tilt: 0° to 90° |
| Manual Control Speed | Pan: 0.1° to 100° /s Tilt: 0.1° to 60° /s |
| Preset Speed | Pan: 100° /s Tilt: 60° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented focal Length / Speed Adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset / Scan / Tour / Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto-recognition) |
| Video | |
| Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 580) |
| Frame Rate | 1080p at 30 fps or 720p at 60 fps |
| Video Output | One (1) Channel, BNC High-definition Video Output (HDCVI, AHD, TVI) or CVBS Standard Definition Video Output (switchable) |
| Transmission Distance | RG-59/U Coax: 720p: 500 m (1640.42 ft); 1080p: 400 m (1312.34 ft) RG-6/U Coax: 720p: 800 m (2624.67 ft); 1080p: 600 m (1968.50 ft) CAT 6 UTP (balun required): 720p: 380 m (1246.72 ft); 1080p: 380 m (1246.72 ft) |
| Day/Night | Auto (ICR), Color, B/W |
| OSD Menu | English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish |
| Backlight Compensation | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp |
| Gain Control | Auto, Manual |
| Noise Reduction | 2D / 3D |
| Advanced Features | Defog |
| Digital Zoom | 16x |
| Flip | 0° / 180° |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4 |
| Safety | UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC Part 15 subpart B, ANSI C63.4- 2014 |
| Interface | |
| Video | Output: One (1) Channel |
| RS485 | One (1) Port (baud rate range: 1200 bps to 9600 bps) |
| Electrical | |
| Power Supply | 12 VDC, 1.5 A ±10% |
| Power Consumption | 5 W or 6 W (with PTZ on) |
| Environmental | |
| Operating Conditions | –30 °C to 60 °C (–22 °F to +140 °F), Less than 95% RH |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Surge Protection | TVS 4000V |
| Construction | |
| Casing | Metal |
| Dimensions | 122.0 mm x 89.0 mm (4.80 in. x 3.50 in.) |
| Net Weight | 0.60 kg (1.32 lb) |
| Gross Weight | 0.65 kg (1.43 lb) |
Downloads
Functions:
Multi-Format Output Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu making the camera compatible with not only HDCVI DVRs but also most existing HD/SD DVRs.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Environmental
With a temperature range of –30° C to +60° C (–22° F to 140° F), the camera is designed for extreme temperature environments. The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.
Protection
This camera suits even the harsh conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
