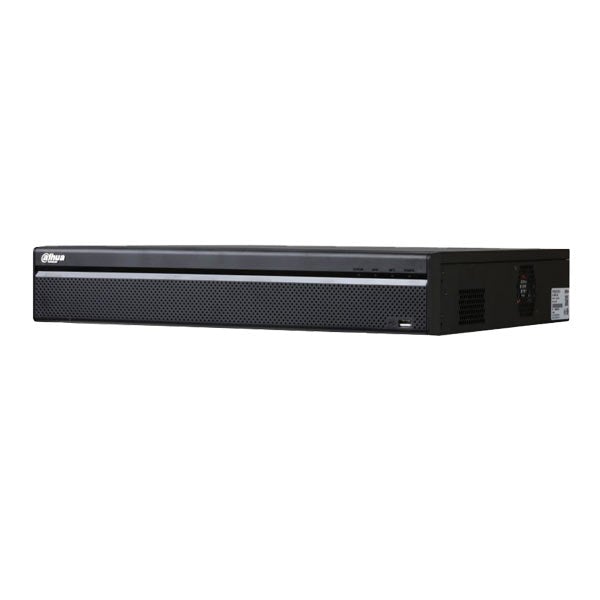

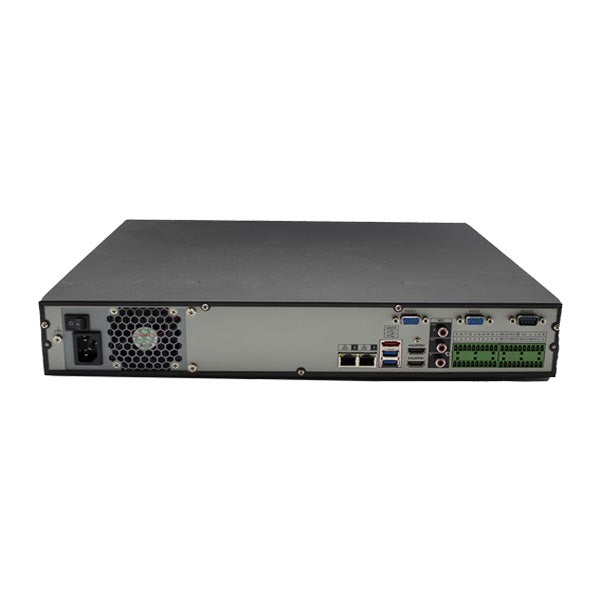

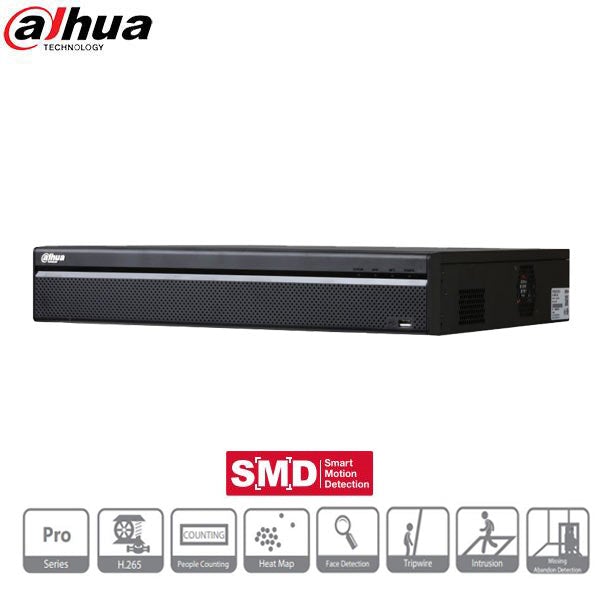

*Discontinued* Dahua / 32 Channel / 12MP / Dual NIC NVR / 4 SATA / 20TB HDD / DH-N54B5N20
Out of Stock
SKU:
DH-N54B5N20
NSID:
28221
- $2,699.98
-
- $2,699.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-N54B5N20
Dahua's Pro Series network video recorders offer excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management, and control, center storage, edge storage, and backup storage. Designed as a cost-effective and easy-to-install recorder, this NVR is an ideal addition to any security system that monitors public spaces, water conservancy, transportation, city centers, schools, and financial institutions.
Features
- Dual NIC Supports Multi-Address, Fault Tolerance, and Load Balance
- Smart H.265+ and Smart H.264+ Video Compression
- Maximum 320 Mbps Incoming Bandwidth
- Up to 12 MP Resolution for Preview and Playback
- Two (2) Gigabit Ethernet Connections
- Support for IPC and UPnP Protocols
- Customized Live View Layout with Support for Panoramic Displays
- Intelligent Video System with Business Analytics
- Compatible with Dahua Smart Motion Detection+ Cameras¹
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $2,699.98
-
- $2,699.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specification
| System | |
| Main Processor | Quad-core Embedded Processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 32 Channels (additional PoE switches required) |
| Two-way Talk | Input: One (1) Channel, RCA Output: Two (2) Channels, RCA |
| Display | |
| Interface | Two (2) HDMI Ports: • HDMI-1: 4K • HDMI-2: 1080p Two (2) VGA Ports (1080p) |
| Spot Output | HDMI 2 / VGA 2 |
| Native Output Resolution - HDMI | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Native Output Resolution - VGA | 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Native Output Resolution - HDMI-2 / VGA-2 | 1920 x 1080 |
| Maximum Decoding | Two (2) Channels of 12MP at 20 fps Four (4) Channels of 8MP at 30 fps Five (5) Channels of 6MP at 30 fps Six (6) Channels of 5MP at 30 fps Eight (8) Channels of 4MP at 30 fps Eleven (11) Channels of 3MP at 30 fps Sixteen (16) Channels of 1080p at 60 fps Sixteen (16) Channels of 1080p/720p at 30 fps |
| Fisheye Dewarping | Dewarps a single channel at a time |
| Multi-screen Display | First Screen: 1/4/8/9/16/25/36 Second Screen: 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Camera Lock, Motion Detection, Recording |
| Recording | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Supported IP Camera Resolution |
12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 1.3 MP, 720p, D1, CIF (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Maximum Incoming Bandwidth | 320 Mbps |
| Bit Rate | 16 Kbps to 20 Mbps per Channel |
| Record Mode | Manual, Schedule (Regular, Motion Detection), Alarm, IVS, Stop |
| Record Interval | 1 to 120 minutes (default: 60 minutes) Pre-record: 1 to 30 s Post-record: 10 to 300 s |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm Input | 16 Channels |
| Relay Output | Six (6) Channels, |
| Playback and Backup | |
| Sync Playback | 1/4/9/16 |
| NVR Video Output | Four (4) Channels at 4K or 16 Channels at 1080p |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device, Network, eSATA Device |
| Network | |
| Ethernet | Two (2) RJ-45 Ports (10/100/1000 Mbps), Independent or Joint |
| Forwarding Bandwidth | 320 Mbps |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, and NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Storage | |
| Internal HDD | Four (4) SATA III Ports, Up to 10 TB capacity for each HDD |
| eSATA | One (1) Port |
| Auxiliary Interface | |
| USB | Two (2) USB 3.0 Ports, rear panel One (1) USB 2.0 Port, front pane |
| RS232 | One (1) Port, for PC Communication and Keyboard |
| RS485 | One (1) Port, for PTZ control |
| Electrical | |
| Power Supply | Single, 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | < 16.7 W, without HDD |
| Fan | NVR Automatically adjusts fan running speed |
| Camera Support | |
| Thermal Cameras | 16 Channels |
| Analytics+ Cameras - Face Recognition |
Four (4) Channels |
| Analytics+ Cameras - Perimeter Protection |
16 Channels |
| Analytics+ Cameras - Metadata |
10 Channels |
| Smart Motion Detection+ | Any channel connected to a Dahua Network camera with Smart Motion Detection+ |
| Construction | |
| Dimensions - NVR | 1.5U, 440.0 mm x 411.20 mm x 76.0 mm (17.32 in. x 16.19 in. x 2.99 in.) |
| Installation | Rack-mount |
| Certifications | CE, EN, UL, FCC, ANSI |
