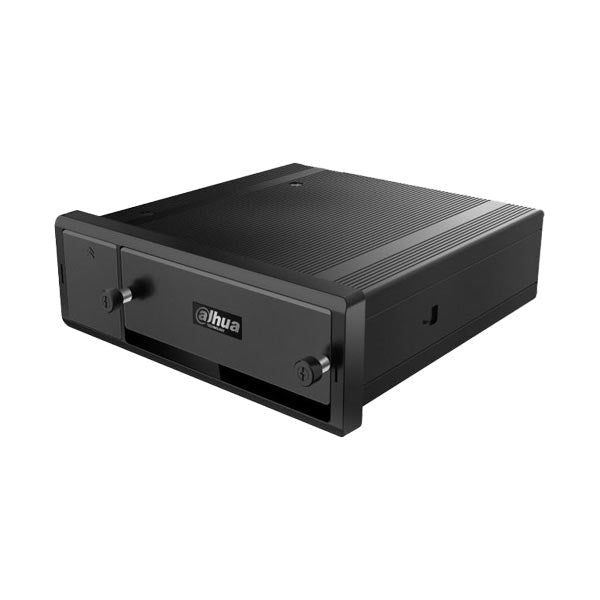

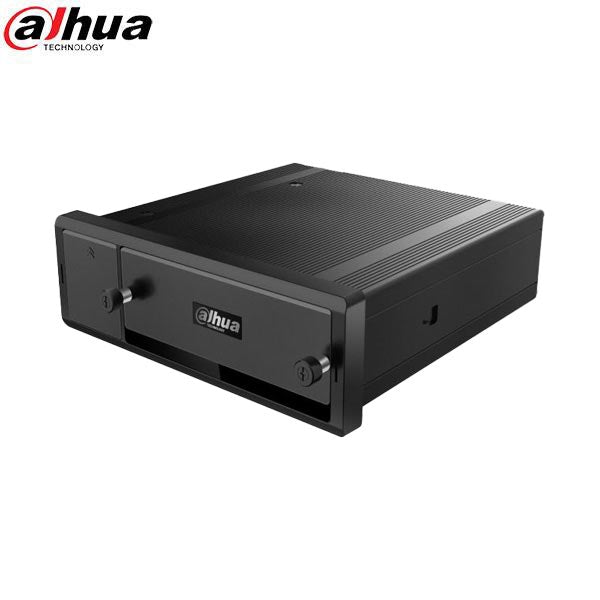

*Discontinued* Dahua / 8 Channel / 2MP / Mobile HDCVI DVR / 1080p / 2 SATA / No HDD / DH-MX6212-VM
*Discontinued* Dahua / 8 Channel / 2MP / Mobile HDCVI DVR / 1080p / 2 SATA / No HDD / DH-MX6212-VM
DH-MX6212-VM
Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution HDCVI DVR (or MXVR) operates across different transportation networks. The MXVR simultaneously records 1080p Full HD real-time video from eight (8) analog/HDCVI cameras and provides two (2) simultaneous video output channels.
Features
- Eight-channel 1080p Real-time Recording
- 8 + 4 IP Camera Channels, each channel up to 2 MP
- Dual-stream Recording
- Penta-brid Video Input: HDCVI, AHD, TVI, CVBS, IP
- H.264 Video Compression
- Simultaneous VGA and TV Video Output Channels
- Two (2) 2.5-in. Hard Disk Drive Ports† and One (1) SD Card Slot
- Aviation Connectors for Increased Signal Stability
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Technical Specification
| System | |
| Main Processor | Embedded Microprocessor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Video - Input | Eight (8) Channels, HDCVI, AHD, TVI, CVBS; plus Four (4) IP Channels, up to 2 MP per input |
| Video - Supported Resolution |
Analog Cameras: 525 Lines HDCVI Cameras: 1080p IP Cameras: 1080p |

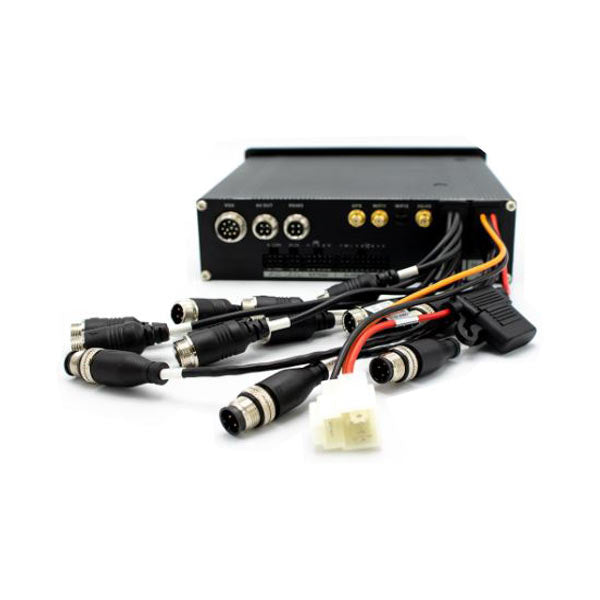

| Video - Connections | Eight (8) Channels, M12 A-coded 4-pin Connectors, Four (4) M12 D-coded Connectors (for IP cameras) |
| Audio, Two-way Talk | One (1) Channel Input One (1) Channel Output |
| Display | |
| Interface | One (1) VGA Output Port One (1) TV Output Port |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600 |
| Display Split | 1/4/8/9/12 |
| Privacy Masking | Four (4) Rectangular Zones (each camera) |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | G.711 |
| Record Rate - Main Stream | 12 Channels of 1080p at 30 fps |
| Record Rate - Sub Stream | D1 and CIF at 30 fps |
| Bit Rate | 48 Kbps to 8192 Kbps |
| Record Mode | Manual, Schedule (Regular - Continuous, MD, Alarm), Stop |
| Record Interval | 1 minute to 120 minutes (default: 60 minutes) Pre-record: 1 s to 30 s Post-record: 10 s to 300 s |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and, Tampering |
| Alarm Input | Nine (9) Channels: • Channels 1 to 7: Local Alarm • Channels 8 to 9: Pulse Input |
| Relay Output | Two (2) Total Channels, One (1) Relay Output, One (1) Control 12V Output |
| Playback and Backup | |
| Playback | Four (4) Channels |
| Search Mode | Time/Date, Alarm, Motion Detection, and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Two (2) SATA 2.5-in. HDD Ports, up to 2 TB per HDD (HDDs sold separately) |
| SD Card | One (1) SD Card Slot, up to 256 GB |
| Network | |
| Ethernet | One (1) Ethernet Interface (10/100 Mbps) |
| Network Function | TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Auxiliary Interface | |

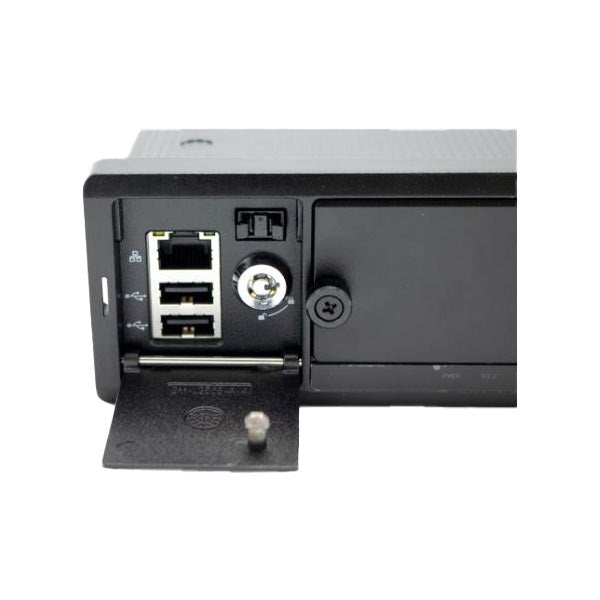

| USB | Front Panel: Two (2) USB 3.0 Ports |
| RS232 | Two (2) Ports, for PC Communication and Keyboard |
| RS485 | One (1) Ports, for PTZ Control |
| Electrical | |
| Power Supply | 6 VDC to 36 VDC |
| Power Consumption | < 12 W, without HDD |
| Construction | |
| Dimensions | 180.0 mm × 190.0 mm × 50.0 mm (7.08 in. x 7.48 in. x 1.96 in.) |
| Manufacturer's Warranty | 5 Years |
