*Discontinued* Dahua / 8 Channel / 4MP / Mobile NVR / H.265 / 2 SATA / No HDD / DH-MN4208-VM
Out of Stock
SKU:
DH-MN4208-VM
NSID:
28188
- $1,769.38
-
- $1,769.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

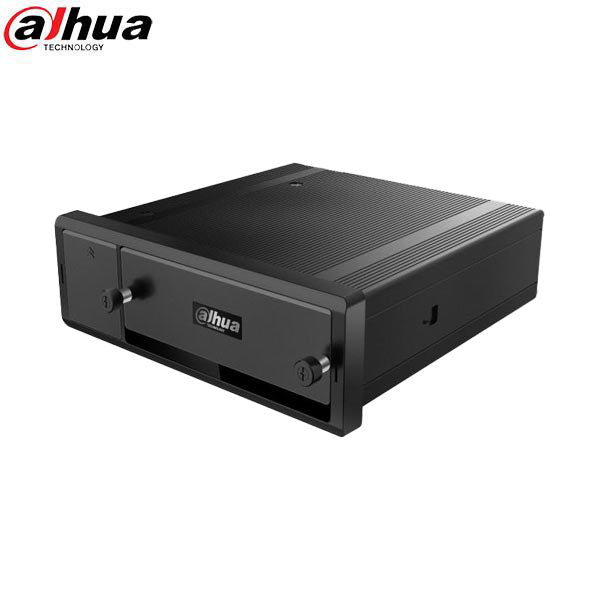

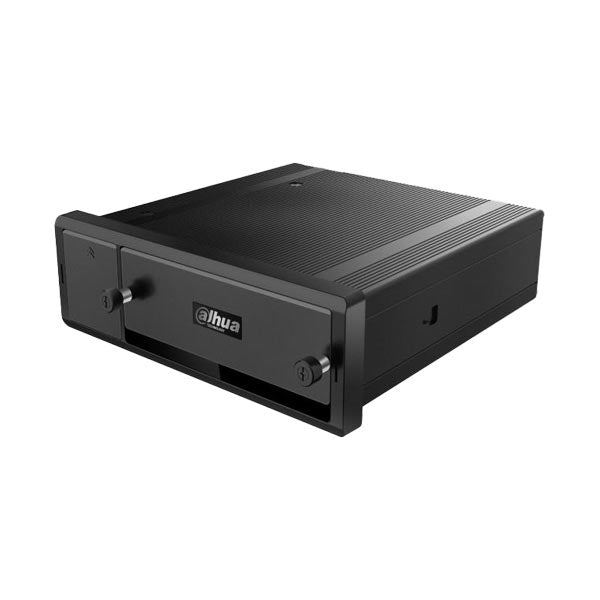

DH-MN4208-VM
Dahua Mobile Solutions offers a durable mobile video surveillance solution that provides reliable security for transit agencies. The Mobile Solution NVR (or MNVR) operates across different transportation networks. The MNVR simultaneously records 4 MP real-time video from eight (8) IP cameras and provides eight (8) simultaneous video output channels.
Features
- Eight-channel IP/PoE Camera Input
- 4 MP Real-time Recording on all Channels
- H.265 Video Compression
- Simultaneous HDMI, VGA, and TV Video Output Channels
- Two (2) 2.5-in. Hard Disk Drive Ports† and (2) USB 2.0 Ports
- Aviation Connectors for Increased Signal Stability
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $1,769.38
-
- $1,769.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specification
| System | |
| Main Processor | Embedded Microprocessor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | Eight (8) Channels |
| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
| Display | |

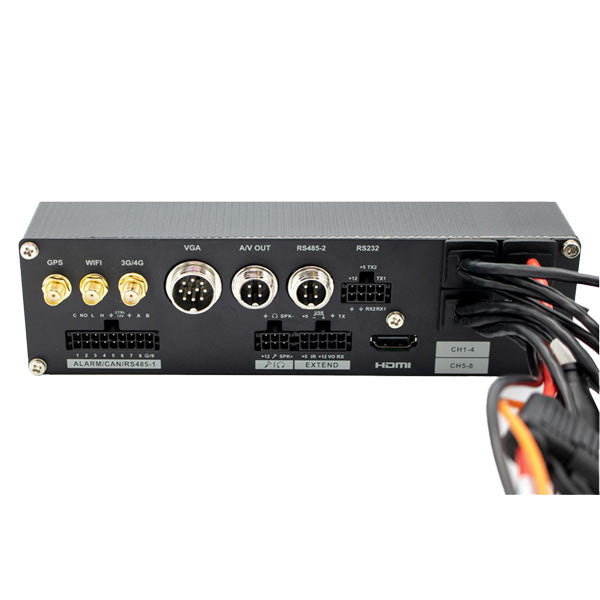

| Interface | One (1) HDMI Output Port One (1) VGA Output Port, 10-pin Aviation One (1) A/V Output Port, 4-pin M12 Aviation |
| Resolution | 800 x 600 |
| Display Split | 1/4/8/9 |
| On-screen Display | Camera Title, Time, GPS, License Number |
| Recording | |
| Video Compression | H.265 |
| Audio Compression | G.711A, G.711U, PCM |
| Record Rate | Eight (8) Channels at 4 MP Real-time Recording |
| Record Mode | Manual, Schedule (Regular - Continuous, MD, Alarm), Stop |
| Record Interval | 1 minute to 120 minutes (default: 60 minutes) Pre-record: 1 s to 30 s Post-record: 10 s to 300 s |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Email, FTP, Buzzer, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 330 (22 × 15), Video Loss, and, Tampering |
| Alarm Input | • Channels 1 to 8: Local Alarm Input • Alarm 10 Reserved for Panic Button |
| Relay Output | Two (2) Total Channels, One (1) Relay Output, One (1) Control 12 V Output |
| Playback and Backup | |
| Playback | One (1) Channel |
| Search Mode | Time/Date, Alarm, Motion Detection, and Exact Search (accurate to one second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom |
| Backup Mode | USB Device, Network |
| Network | |
| Ethernet | One (1) RJ-45 Port (10/100/1000 Mbps) |
| Network Function | TCP/IP, UDP, DHCP, DDNS, FTP, Email, Alarm Server |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Storage | |
| Internal HDD | Two (2) 2.5-in. HDD Ports, up to 2 TB per HDD (HDDs sold separately) |
| SD Card | One (1) SD Card Slot, up to 256 GB |
| Interfaces | |

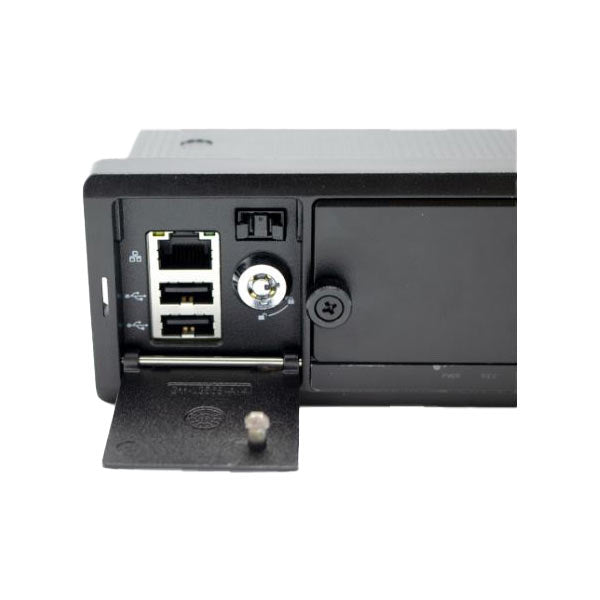

| USB | Front Panel: Two (2) USB 2.0 Ports |
| RS232 | Three (3) Ports, for PC Communication and Keyboard |
| RS485 | Two (2) Ports, for PTZ Control One (1) Port, standard connection One (1) Port 4-pin M12 Aviation |
| Electrical | |
| Power Supply | 6 VDC to 36 VDC |
| Power Consumption | < 11.1 W, without HDD |
| Construction | |
| Dimensions | 180.0 mm × 190.0 mm × 50.0 mm (7.08 in. x 7.48 in. x 1.96 in.) |
| Manufacturer's Warranty | 5 Years |
