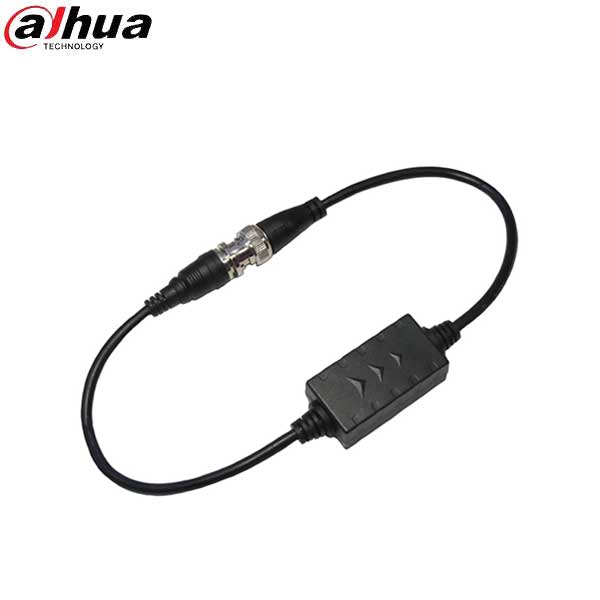

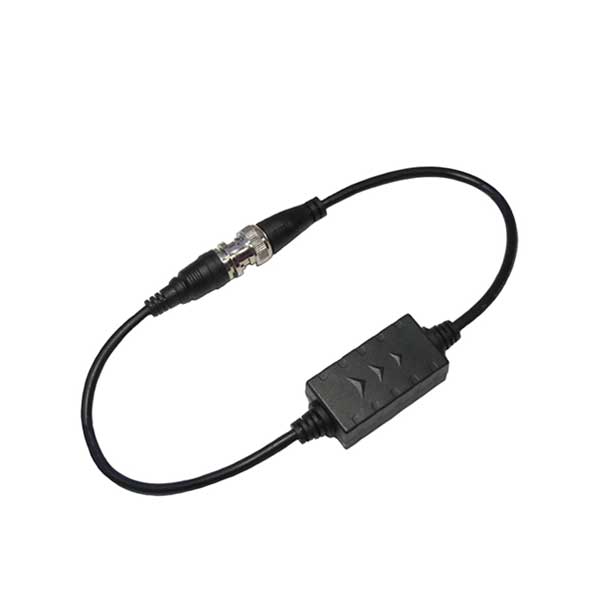

*Discontinued* Dahua / Accessories / HD Video Isolator / Indoor / 15.75in. / DH-PFM791
Out of Stock
SKU:
DH-PFM791
NSID:
27949
- $13.19
-
- $13.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM791
- HD video isolator, to solve the HDCVI image interference caused by ground loops effectively
- Apply to indoor or in junction box
- Working Temperature: -20~55℃
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $13.19
-
- $13.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specifications
| Properties | |
| Insertion Loss | 0.50 dB |
| Frequency Response | 0 to 65 MHz |
| Input Impedance | 75 Ω |
| Output Impedance | 75 Ω |
| Isolation Voltage | 800 V, minimum |
| Isolation Resistance | 100 mΩ |
| Protection | |
| ESD Protection | Contact Discharge: 600 V Air Discharge: 8000 V per IEC61000-4-2 |
| Surge Protection | 4 KV 10/700 µs, per IEC61000-4-5 |
| Reliability | |
| MTBF | > 20,000 h |
| Physical Properties | |
| Dimensions | |
| Unit |
42.0 mm x 22.50 mm x 16.0 mm (1.65 in. x 0.89 in. x 0.63 in.) |
| Length | 400 mm (15.75 in.) |
| Shell | ABS |
| Color | Black |
| Environmental | |
| Operating Temperature | –20° C to +55° C (–4° F to 131° F) |
| Storage Temperature | –40° C to +70° C (–40° F to 158° F) |
| Relative Humidity | 0% to 95% |
