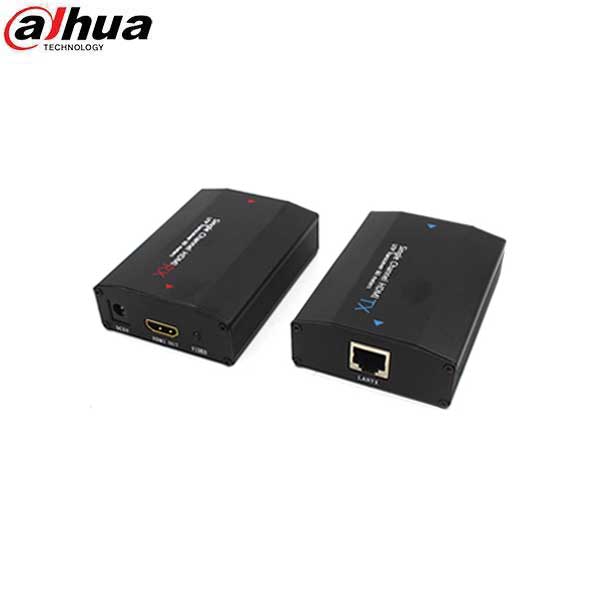

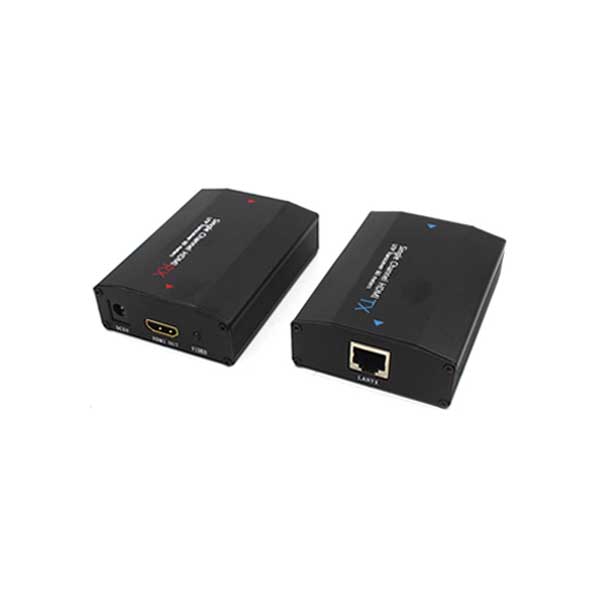

*Discontinued* Dahua / Accessories / HDMI Extender over Single Cat5e/6 / 1080p / Up To 197ft / DH-PFM700-E
Out of Stock
SKU:
DH-PFM700-E
NSID:
27946
- $140.38
-
- $140.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM700-E
- 5 VDC Input Power
- Real-time Transmission
- HDMI Video Signal with No Delay or Interference.
- Long HDMI Transmission Distance up to 60 m (197 ft)
- Transmits One-channel Over a UTP (CAT-5E and CAT-6) Cable
- Excellent Power Surge Protection
- Easy Installation, True Plug-and-Play Configuration
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $140.38
-
- $140.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specifications
| Properties | |
| Transmission Signal | One (1) Channel |
| Category Type | UTP CAT5E/6 |
| Transmission Distance, maximum | 60M(max) |
| Video Transmission Properties and Ports | |
| Video Signal Input Interface | HDMI interface |
| Video Input Interface | HDMI interface |
| Twisted-pair Video Transmission Port | RJ45 port |
| Input Voltage | DC5V |
| Power | TX<3W, RX<3W |
| HDCP Version | Support HDCP1.2 |
| HDMI Version | Support 1.3 and lower version |
| Resolution Output Signal | |
| Resolution | 1080P/1080I/720P/576P/576I/480P/480I |
| Output Voltage | 0.5~1.5Vp-p |
| Protection | |
| ESD | 1a Contact Discharge Electricity Level 3 1b Air Discharge Electricity Level 3 Per IEC61000-4-2 1995 (GB/T 17626.5) |
| Lightning Protection | 1 KV. Per IEC61000-4-5 1995 (GB/T 17626.5) |
| Stability | |
| MTBF | >5000H |
| Physical Properties | |
| Dimensions | Transmitter: 88mm×64mm×25mm Receiver: 88mm×64mm×25mm |
| Shell | Aluminum |
| Color | Black |
| Certification | CE, FCC |
