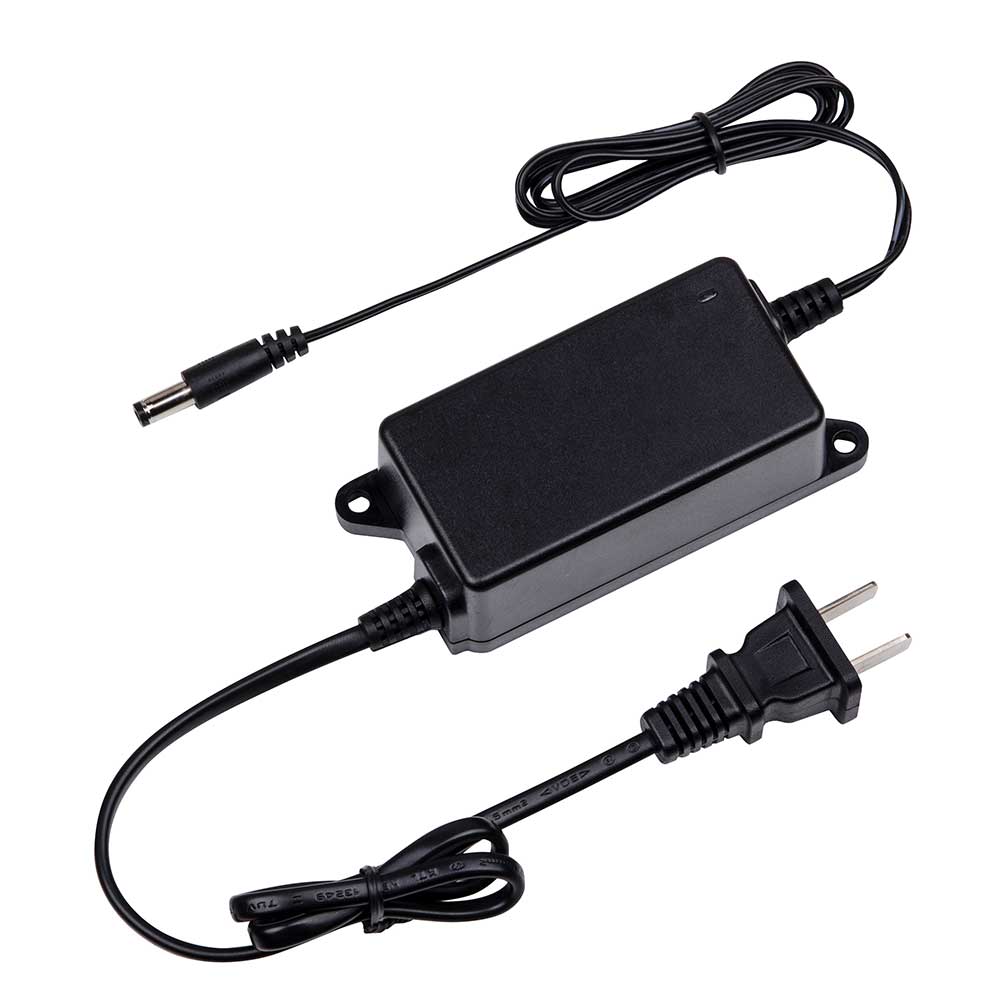

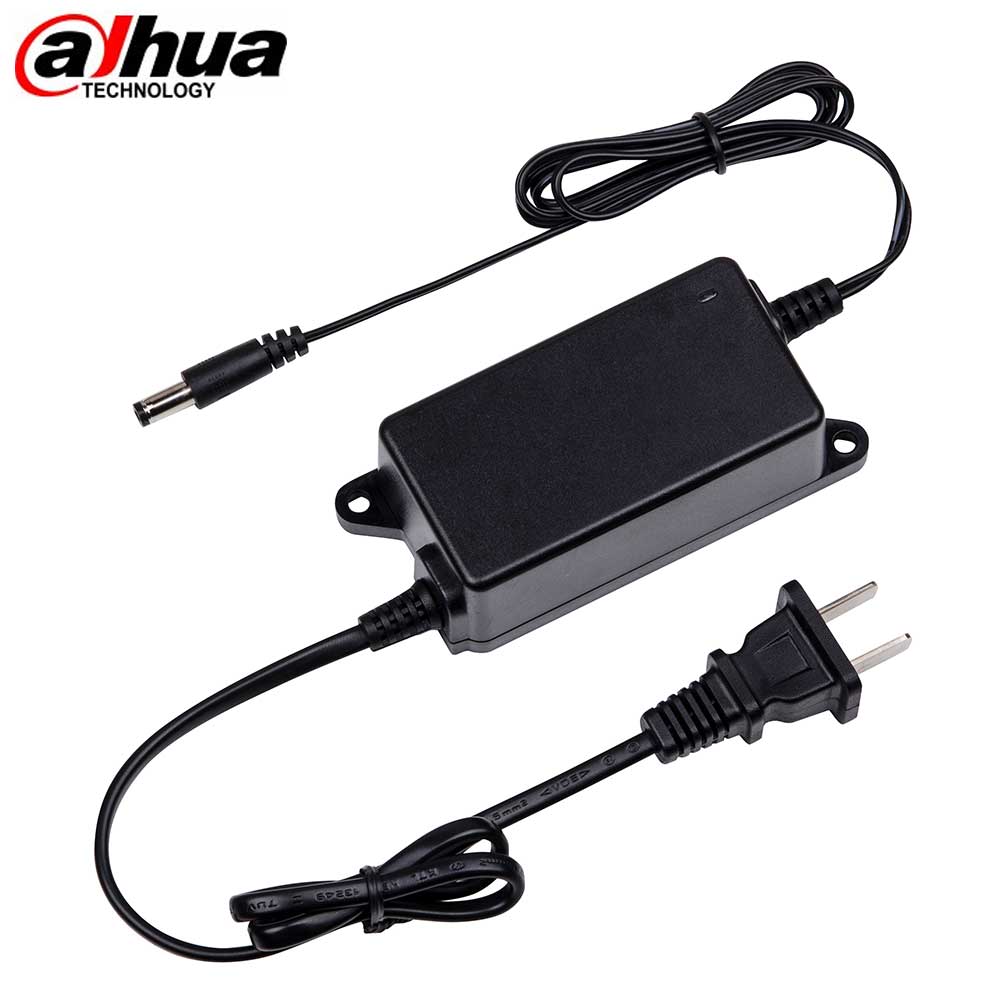

*Discontinued* Dahua / Accessories / Power Supply / DH-PFM321D-US
Out of Stock
SKU:
DH-PFM321D-US
NSID:
1466
- $14.38
-
- $14.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM321D-US
- Visual Indicator when Power Present
- Full Power Efficiency at –30 °C to +70° F (–22 °F to 158 °F)
- Accurate Over-current and Over-voltage Protection
- Surge Protection
- Call 1-800-878-6604 for Dealer Prices!
- $14.38
-
- $14.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x| Input | 100 VAC to 240 VAC, 50/60 Hz, 0.5 A |
| Output |
12 VDC (+7%, –3%), 1 A (±2%) |
| Protections | Surge, Over-temperature, Over-current, Voltage Load |
| ESD | EN61000-4-2 ±4 kV Contact; ±8 kV Air |
| Surge | EN61000-4-5 |
| Combination Wave | Common Mode: ±4 kV (12 Ω); Differential Mode: ±2 kV (2 Ω) |
| Operating Temperature | –30 °C to +70° F (–22 °F to 158 °F) |
| Operating Humidity | 95%, Relative |
| Weight |
150.0 g (0.33 lb) |
| Dimensions | 84.0 mm x 41.0 mm x 26.0 mm (3.31 in. x 1.61 in. x 1.02 in.) |
| Installation Mode | Plane Installation |
| Color | Black |
| Input Plug | 2-pin North American Plug |
| Cord Lengths | AC Cord: 500.0 mm (19.69 in.) DC Cord: 800.0 mm (31.50 in.) |
| DC Plug | 5.50 mm x 2.10 mm x 12.0 mm (0.22 in. x 0.08 in. x 0.47 in.) |
| Certifications | CE, FCC, UL-VI |
