*Discontinued* Dahua / Accessories / PTZ Integrated Wall Mount Bracket / Fisheye / DH-PFB410W

*Discontinued* Dahua / Accessories / PTZ Integrated Wall Mount Bracket / Fisheye / DH-PFB410W

Discontinued
SKU DH-PFB410W NSID 27948
$160.18

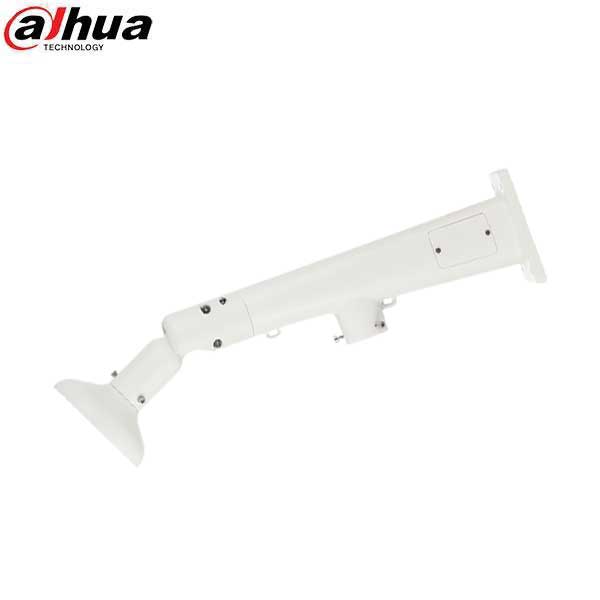

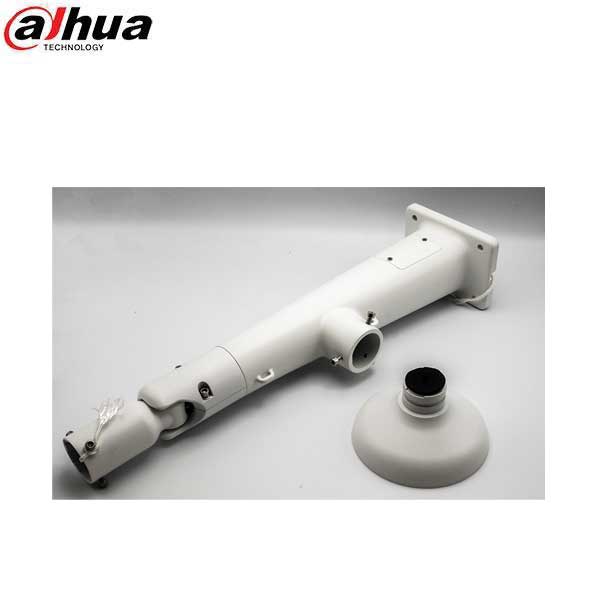

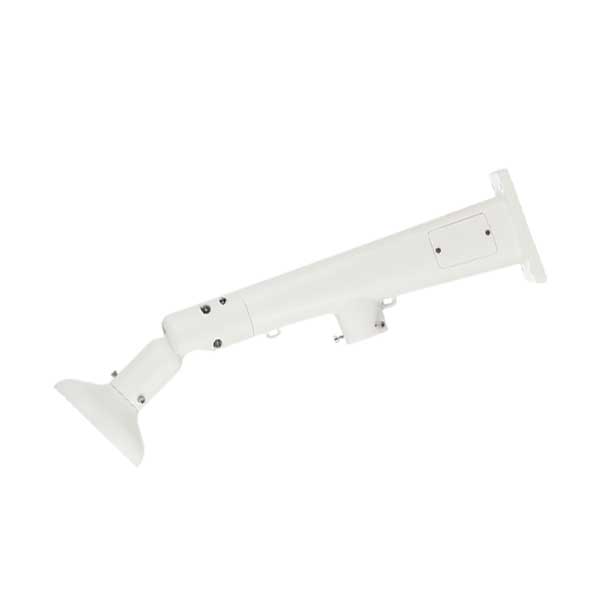

DH-PFB410W

  • Aluminum Construction
  • Supports Linkage between Fisheye and PTZ Cameras
  • Multi-dimensional Adjustments to support Omni-directional Viewing Angles
  • Safety Tether Attached for Secure and Reliable Installation
  • Maintenance Hatch to Aid Cable Routing
  • Call 1-800-878-6604 for Dealer Prices!


View full details

Details

    Technical Specifications
      Material Aluminum
      Color White
      Dimensions
      Rotation Angle: 0° 555.0 mm x 236.90 mm x ø154.90 mm
      (21.80 in. x 9.30 in. x ø6.10 in.)
      Rotation Angle: 88° 651.60 mm x 164.80 mm x ø154.90 mm
      (25.70 in. x 6.50 in. x ø6.10 in.)
      Weight 2.80 kg (6.17 lb)
      Load-bearing Capacity
      Fisheye 1.0 kg (2.20 lb)
      PTZ 7.0 kg (15.43 lb)
      Operating Temperature –40° C to 60° C (–40° F to 140° F)
      Humidity < 90% RH
      Applicable Camera Models
      Fisheye Cameras NK8BR4 / N68BR4V
      PTZ Cameras 6AE Series Cameras
