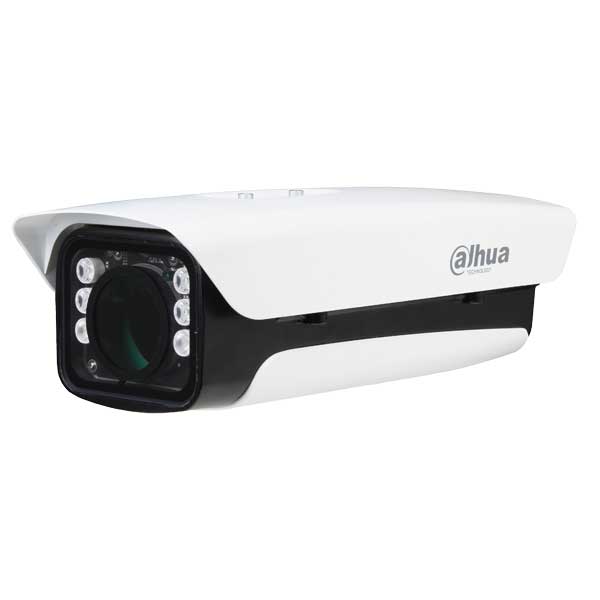

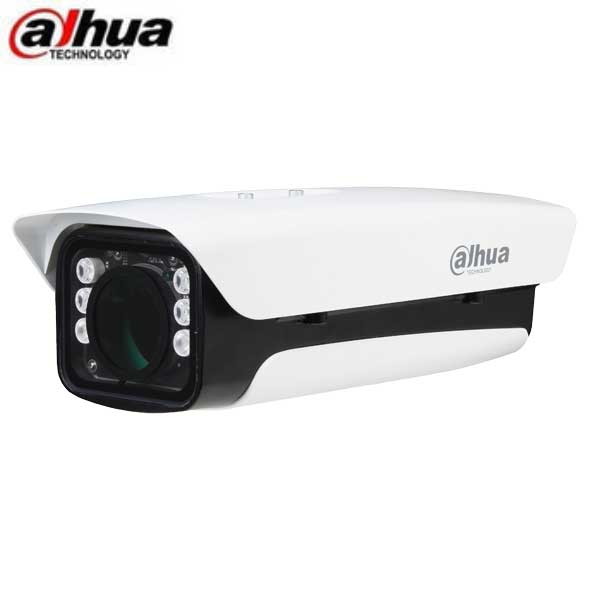

*Discontinued* Dahua / Accessories / Vandal Proof Camera Housing / DH-PFH610V

*Discontinued* Dahua / Accessories / Vandal Proof Camera Housing / DH-PFH610V

Discontinued
SKU DH-PFH610V NSID 27921
$82.78

DH-PFH610V

  • Aluminum Construction (casing)
  • Optional Built-in IR Illumination and Heater
  • Designed for Reliability and Aesthetics
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices!

View full details

Details

    Technical Specifications
      Material Aluminum
      Color White
      Ingress Protection IP67
      Impact Resistance IK10
      Power Supply 12 VDC or 24 VAC
      Power Consumption N/A
      IR Distance N/A
      Outer Dimensions (W x H x D) 404.0 mm x 164.0 mm x 132.0 mm
      (15.91 in. x 6.46 in. x 5.20 in.)
      Inner Dimensions (L x W x H) 215.0 mm x 90.0 mm x 83.0 mm
      (8.46 in. x 3.54 in. x 3.27 in.)
      Weight 2.50 kg (5.51 lb)
      Safety Certifications UL 60950-1
      CAN/CSA C22.2 No. 60950-1-07
      Electromagnetic Compatibility
      (EMC)      		 FCC 47 CFR Part 15 Subpart B
      EN 55032:2015, EN 55024,
      EN61000-3-2, EN 61000-3-3,
      EN 50130-4
      ICES-003 Issue 6, 2016
      Operating Temperature –30 °C to 60 °C (–22 °F to 140 °F)
      Humidity 0% to 90% RH
