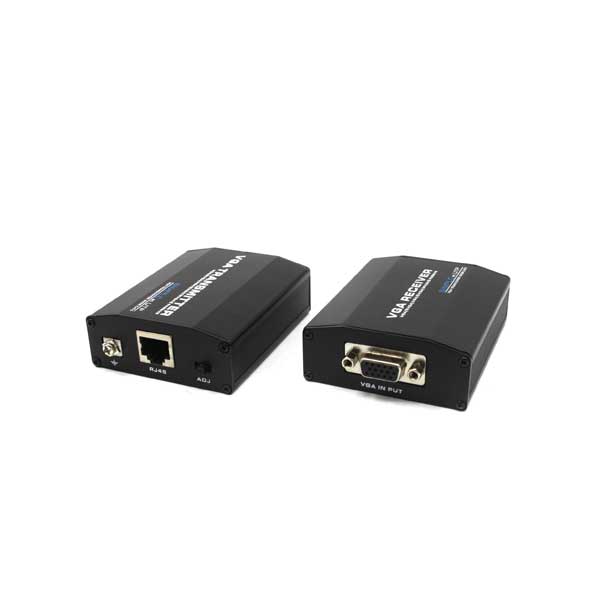

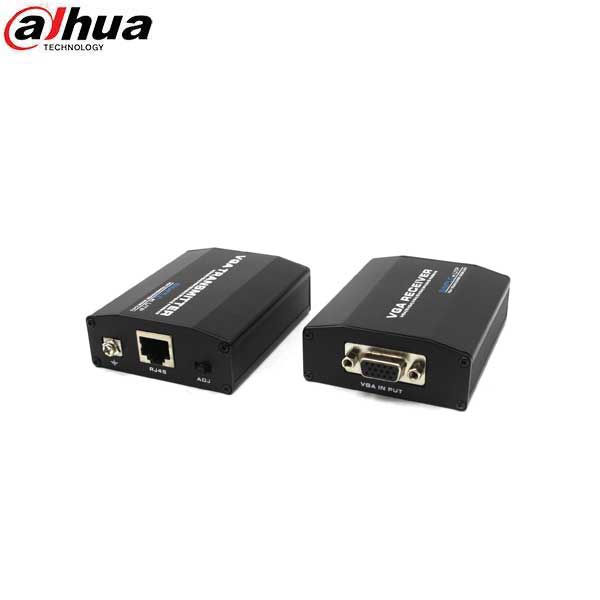

*Discontinued* Dahua / Accessories / VGA Extender over Single Cat5e/6 / 1080p / Up To 114.83ft / DH-PFM710
Out of Stock
SKU:
DH-PFM710
NSID:
27945
- $49.19
-
- $49.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-PFM710
- No External Power Supply Required
- Real-time Video Transmission without Compression or Delay
- High-definition VGA Video Signal Transmission up to 35 m (115 ft)
- Uses a Single UTP Cable (CAT5E or CAT6) to Transmit One-channel Video
- Strong Protection from Static, Interference, and Lightning
- Easy and Convenient Installation, Automatic Driver and Network Configuration
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $49.19
-
- $49.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specifications
| Properties | |
| Transmission Signal | One (1) Channel |
| Category Type | UTP CAT5E/6 |
| Transmission Distance, maximum | 35.0 m (114.83 ft) at 1080p |
| Video Transmission Properties and Ports | |
| Video Signal Input Interface | Female 15, VGA Port |
| Video Input Interface | Female 15, VGA Port |
| Resolution | 640 x 480, 800 x 600, 1600 x 1050, 1600 x 1200, 1920 x 1080 |
| Twisted-pair Video Transmission Port | RJ45 |
| Video Signal Processing Bandwidth | < 120 MHz (–3 db) |
| Synchronous Signal Bandwidth | 1 k to 200 KHz |
| Adjustment | |
| Transmitter | Two (2) Modes |
| Receiver | Three (3) Modes |
| Protection | |
| ESD | 1a Contact Discharge Electricity Level 3 1b Air Discharge Electricity Level 3 Per IEC61000-4-2 1995 (GB/T 17626.5) |
| Lightning Protection | 1 KV. Per IEC61000-4-5 1995 (GB/T 17626.5) |
| Physical Properties | |
| Dimensions | |
| Transmitter | 85.0 mm x 64.0 mm x 28.0 mm (3.35 in. x 2.52 in. x 1.10 in.) |
| Receiver | 85.0 mm x 64.0 mm x 28.0 mm (3.35 in. x 2.52 in. x 1.10 in.) |
| Shell | Aluminum |
| Color | Black |
| Certification | |
| Electromagnetic Compatibility (EMC) |
FCC 47 CFR Part 15, ANSI C63.4, EN55022, EN55024 |
