*Discontinued* Dahua / Display / IP Color Indoor Monitor / 7-inch Touchscreen / 8GB SD / PoE Support / IPC Surveillance / Alarm Integration / DH-VTH2421FW-P

*Discontinued* Dahua / Display / IP Color Indoor Monitor / 7-inch Touchscreen / 8GB SD / PoE Support / IPC Surveillance / Alarm Integration / DH-VTH2421FW-P

Discontinued
SKU DH-VTH2421FW-P NSID 26284
$397.78

DH-VTH2421FW-P

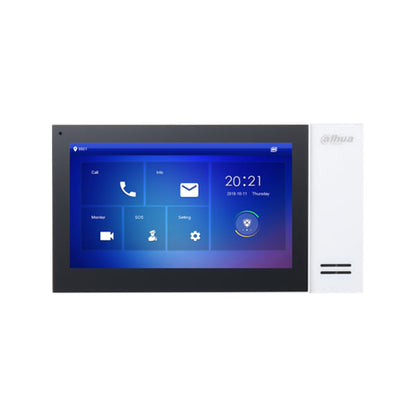

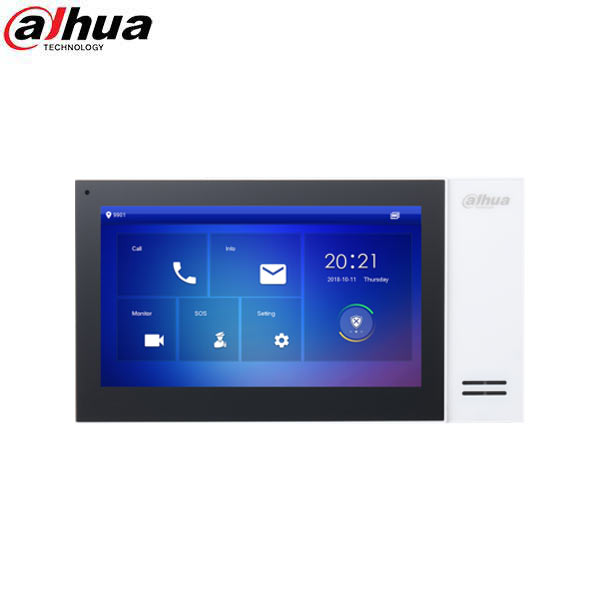

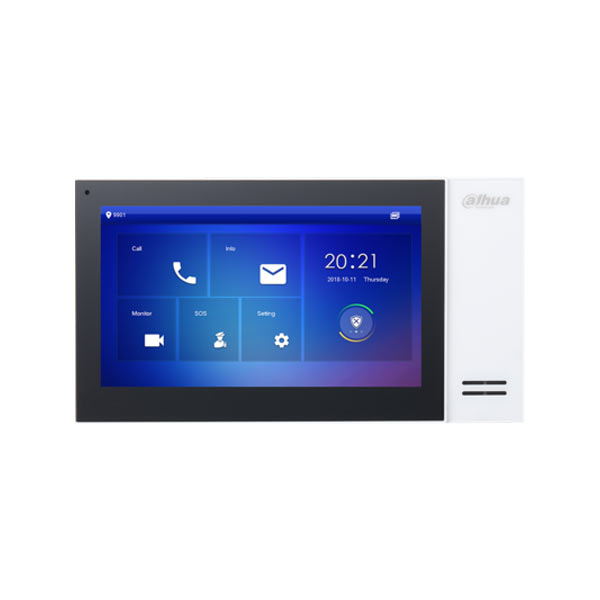

The Dahua DHI-VTH2421FW-P indoor monitor allows tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor. The DHI VTH2421FW-P indoor monitor is used as part of a video intercom solution with compatible outdoor stations.

Features

  • 7-inch TFT Screen
  • 1024 x 600 Resolution
  • Simplified Connection and Setup to Compatible Outdoor Stations
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video(requires SD card)
  • Setup and Activate up to Six (6) Alarm Inputs
  • Become a registered dealer of Dahua
  • Call 1-800-878-6604 for Dealer Prices!

View full details

Details


Specifications

System
Main Processor Embedded Micro Processor
Operating System Embedded Linux
Display
Viewing Area 7-in. TFT LCD, Capacitive
Resolution 1024 x 600
Input Touchscreen Technology
Audio
Mode Full Digital
Two-way Bidirectional Talk
Audio G.711A, G.711U, PCM
Input Built-in Omnidirectional Microphone
Output Built-in 1.5 W Loudspeaker
Enhancement Echo Cancellation, DNR
Bit Rate 16 Kbps
Alarm
Input
 Six (6) Channels
Output One (1) Channel
Network
Video Compression H.264
Ethernet One (1) RJ-45 Port
Network Protocol TCP/IP
Certifications
Safety EN 60950-1:2006 + A11:2009 + A1:2010 +
A12:2011 + A2:2013
IEC 60950-1:2005 (Second Edition); Am1:2009 +
Am2:2013
Electromagnetic Compatibility (EMC) FCC CFR 47 Part 15 subpart B
EN 55032:2015; EN 610003 2:2014;
EN 61000 3 3:2013; EN 55024:2010/A1:2015;
EN 55035:2017; EN 50130 4:2011/A1:2014
Electrical
Power 12 VDC or PoE (IEEE802.3af Class 0)
Power Consumption
 Standby: ≤ 4 W
Operation: ≤ 6 W
Environmental
Operating Temperature –10° C to +55° C (14° F to +131° F)
Operating Humidity 10% to 95%, Relative
Construction
Dimensions 119.60 mm x 221.50 mm x 21.50 mm
(4.71 in. x 8.72 in. x 0.85 in.)
Net Weight 0.35 kg (0.77 lb)
Installation Wall-mount





Downloads

Data Sheet
User Manual
