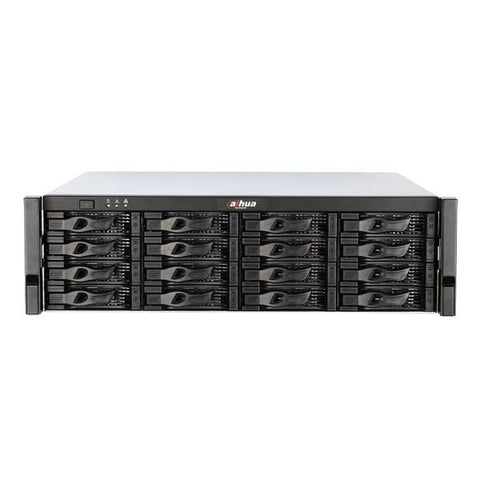

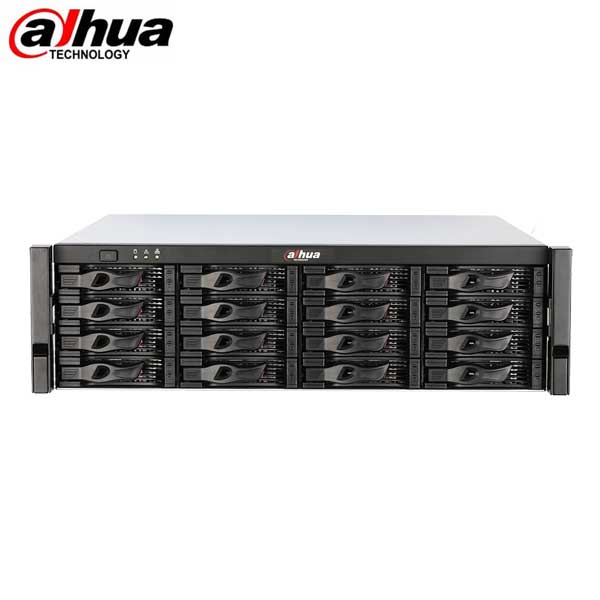

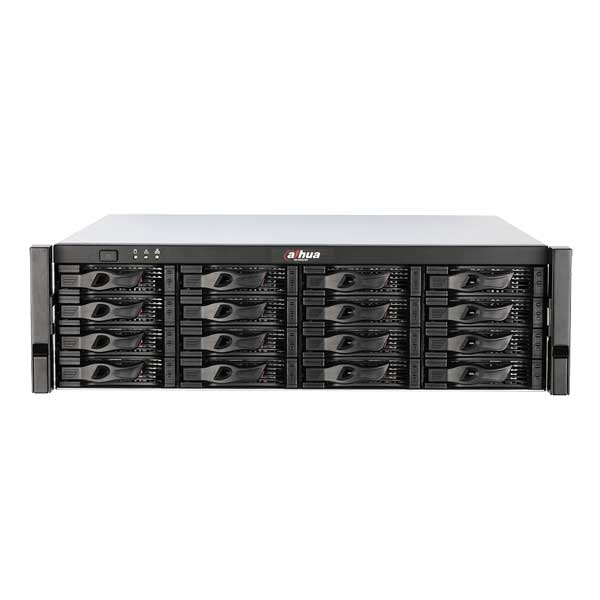

DH-EVS5016S-R
The EVS5016S-R Enterprise Video Storage device offers unparalleled storage technology. It is designed and developed to meet the needs of medium-range to high-end IP video surveillance applications; and supports 320 IP camera channels with 640 Mbps incoming/recording/forwarding bandwidth.
Combined with hot-swap power supplies, fans, and hard disk drives, the EVS offers Enterprise Class availability. This EVS is ideal for a wide range of applications including public safety, transportation, government institutions, hotels, shopping malls, city centers, and financial institutions that demand flexibility, reliability, and centralized storage management.
This EVS is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4.
Features
- Intel Processor
- Max 320 IP Camera Inputs
- Max 640 Mbps Incoming/recording Bandwidth
- 16 HDDs, SATA, Hot-Swap
- Supports RAID 0/1/5/6/10/50/60/JBOD, Hotspare
- iSCSI and Mini SAS for Expanded Storage Space
- Support standard iSCSI Protocol Storage
- Modular & Cableless Design
- Redundant Power
- Become a registered dealer of Dahua
-
Call 1-800-878-6604 for Dealer Prices!
Details
Specification
| System | |
| Main Processor | 64-bit high-performance Intel processor |
| Controller | Single controller |
| Memory | 4GB by default |
| Operating System | Embedded Linux |
| User Interface | Web |
| Working Mode | |
| Video Stream Mode | 320-channel (640Mbps) incoming and recording , 160-channel (320Mbps) forwarding, 32-channel (64Mbps) playback |
| IP SAN Mode |
Storage bandwith ≤2.7Gbps Write-through: 320Mbps Write-back: 480Mbps |
| Storage | |
| HDD Amount | 16 HDDs, Up to 10TB capacity for each HDD SATA HDD composite connection |
| miniSAS | 1 miniSAS ports, for storage extension |
| HDD Installation | Additional HDD bracket, HDD hot-swap, HDD online replacement |
| HDD Mode | Single, RAID 0/1/5/6/10/50/60 (Enterprise-level HDDs are recommended), JBOD, hotspare |
| Storage Management | |
| Multi-screen Display | First Screen: 1/4/8/9/16/25 Second Screen: 1/4/8/9/16 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Recording | |
| IP Camera Input | 320 Channel |
| Record Rate | 640Mbps |
| Record Mode | Manual, Schedule (Regular, Continous), Motion Detection, Alarm |
| Record Interval | 1 ~ 120 min(default 60 min) Pre-record 1 ~ 30 sec, Post-record 10 ~ 300 sec. I frame storage by period. |
| Auxiliary Interface | |
| USB | 1 USB 3.0 |
| Multiplex Interface | 1 USB 2.0 & eSATA multiplex interface |
| RS232 | 1 Port, for PC communication and Keyboard |
| Network | |
| Interface | 2 data RJ-45 ports (10/100/1000Mbps) |
| Network Mode | Multi-address, Fault-tolerance, Load balance, Link aggregation |
| Network Function | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTP, RTCP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, iSCSI, SMB, NFS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Electrical | |
| Power Supply | AC100V ~ 240V, 47 ~ 63 Hz，1 + 1 Redundant power |
| Power Consumption | < 200W (With HDD) |
| Environmental | |
| Working Conditions | 0°C ~ +40°C (+32°F ~ +104°F), 10 % ~ 80% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 5% ~ 90% RH |
| Working Altitude | -60m ~ 3000m |
| Construction | |
| Chassis | 1.2mm extra-thickness hot-dip galvanized steel. High accuracy aluminum alloy slider. Self-developed patent removable HDD bracket. |
| Dimensions (W x D x H) | 3U, 484.6mm x 473.6mm x 133.2mm (19.1" x 18.6" x 5.2") |
| Net Weight | 11kg (24.3 lb) (without HDD) |
| Gross Weight | 16kg (35.3 lb) |
| Installation | Standard 19-inch rack installation |
| Certifications | |
| CE | EN55022, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2009 |
| UL | UL 60950-1 and CAN/CSA C22.2 No.60950-1 |
Downloads:
Functions:
Modular Design
Brand new design for HDD carrier, ensures good cooling, stability and safety for hard disks.
Storage Extension Capacity
Local extension, connect to ESS extension storage by mini SAS interface. Extension storage support redundant power and RAID.
RAID 0/1/5/6/10/50/60
Offering a balance between storage performance, storage capacity, and data integrity, the NVR features fruitfull RAID 0/1/5/6/10/50/60 for faster and safer recording.
N+M Hot Standby
The highly reliable redundancy N+M Hot Standby design provides a secure, failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.
ANR (Automatic Network Replenishment Technology)
Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.
