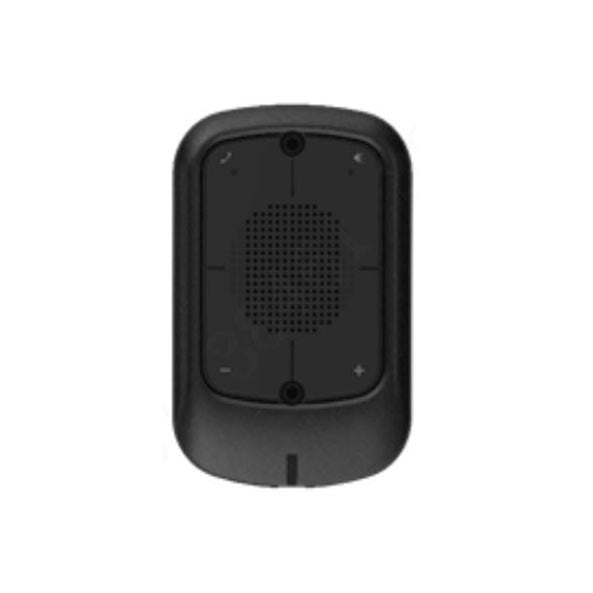

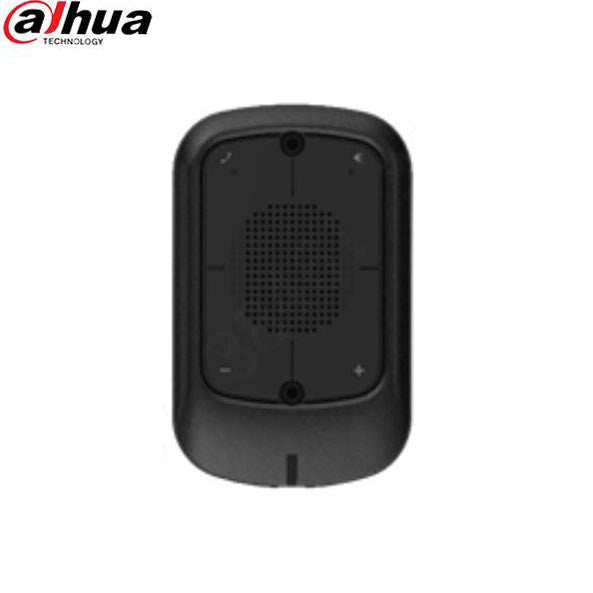

*Discontinued* Dahua / Full-Duplex / Talkback Terminal / DH-MP06
Out of Stock
SKU:
DH-MP06
NSID:
28176
- $124.18
-
- $124.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-MP06
- Compact Body Design
- Button Trigger for DVR/NVR to Begin Bi-directional Talk
- Amplifier Function to Drive the Loudspeaker on the Vehicle
- Standard Aviation Port for Easy and Reliable Connection
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $124.18
-
- $124.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xTechnical Specification
| System | |
| Working Mode | Full Duplex |
| Operation Mode | Button |
| Audio | Input: One (1) Channel Output: One (1) Channel, Loudspeaker |
| Pickup Range | 900 mm (35.43 in.) |
| Indicator Lights | Two (2) |
| Electrical | |
| Power Supply | 12 VDC |
| Consumption | Standard: ≤ 1.5 W Peripheral Loudspeaker: 7 W |
| Construction | |
| Dimensions | 109.70 mm x 71.30 mm x 27.0 mm (4.32 in. x 2.81 in. x 1.06 in.) |
| Cable Length | 1700.0 mm (66.93 in.) |
| Pressure Atmosphere | 86 kPa to 106 kPa |
