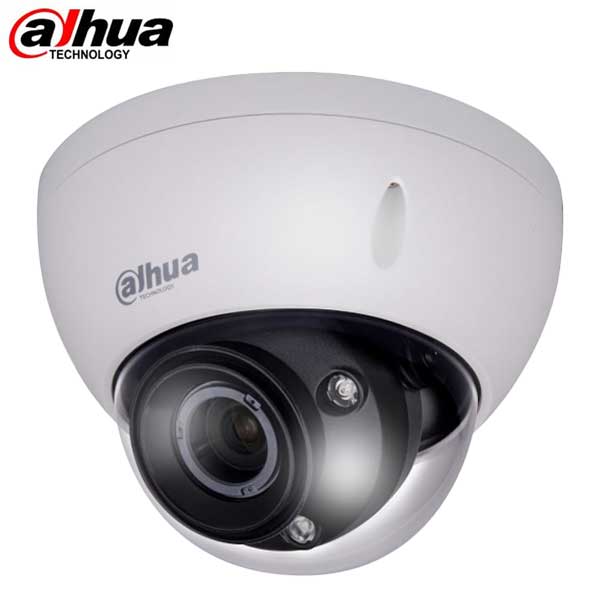

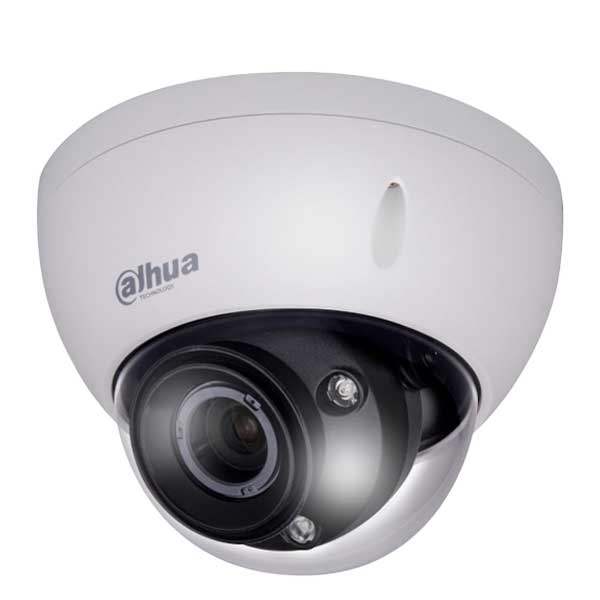

*Discontinued* Dahua / HDCVI / 2MP / Dome Camera / Motorized / 2.7-12mm Lens / 1080p / WDR / IP67 / IK10 / 50m IR / DH-HAC-HDBW32A1EN-Z
- $257.38
-
- $257.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-HAC-HDBW32A1EN-Z
Experience the superior clarity of Full HD 1080p video while leveraging your existing coaxial infrastructure. The camera features 120 dB True WDR for applications under complex dynamic range and presents high quality images with clear details and accurate color rendition. The camera offers a multiple-language on-screen display and HD and SD dual-output. The outstanding performance and easy installation make the camera an ideal choice for mid- to large-size businesses and for projects where highly reliable surveillance and construction flexibility are valued.
- Starlight, 120 dB True WDR, 3DNR
- Max. 30 fps at 1080p
- HD and SD Dual-output
- 2.7 to 12 mm Motorized Lens
- Max. IR length 50 m (164 ft) Smart IR
- IP67, IK10, 24VAC/DC12V
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $257.38
-
- $257.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/2.8-in. CMOS |
| Effective Pixels | 1945(H) × 1097(V), 2.1 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1 s to 1/30000 s |
| Minimum Illumination | 0.005 Lux @ F1.4 0 Lux (IR on) |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 50 m (164 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Motorized, Auto Iris |
| Mount Type | Board-in |
| Focal Length | 2.7 mm to 12 mm |
| Maximum Aperture | F1.4 |
| Angle of View | H: 95° to 36° |
| Focus Control | Auto, Manual |
| Close Focus Distance | 300 mm (11.81 in.) |
| Installation Angle | |
| Range | Pan: 0˚ to 355˚ Tilt: 0˚ to 65˚ Rotation: 0˚ to 355˚ |
| Video | |
| Resolution | 1080p (1920 × 1080) |
| Frame Rate | 25/30 fps @ 1080p 25/30/50/60 fps @ 720p |
| Video Output | One (1) BNC HDCVI High-definition Channel and, One (1) BNC CVBS Channel, plus One (1) CVBS Tester Channel |
| Video Transmission | RG-59/U Coax: 720p: 800 m (2624.67 ft), 1080p: 500 m (1640.42 ft) RG-6/U Coax: 720p: 1200 m (3937.01 ft), 1080p: 800 m (2624.67 ft) CAT 6 UTP (balun required): 720p: 450 m (1476.38 ft), 1080p: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC, HLC, WDR |
| WDR | 120 dB |
| White Balance | Auto, Manual |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| Smart IR | Auto, Manual |
| Certifications | |
| Safety |
CE: EN55032, EN55024, EN50130-4); UL: UL60950-1+CAN/CSA C22.2 No.60950-) |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 FCC Part 15 Subpart B; ANSI C63.4-2014) |
| Interface | |
| Audio Interface | One (1) Channel In |
| Alarm Interface | One (1) Alarm Channel In One (1) Alarm Channel Out |
|
Electrical |
|
| Power Supply | AC 24V±25% / DC 12V±25% |
| Power Consumption | Max 12.5 W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F), Less than 90% RH Initiate start up above -30°C (-22°F) |
| Storage Conditions | -30°C to +60°C (-22°F to +140°F), Less than 90% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Aluminum |
| Dimensions | ø159.10 mm × 117.90 mm (ø6.26 in. × 4.64 in.) |
| Net Weight | 0.90 kg (1.98 lb) |
| Gross Weight |
1.20 kg (2.65 lb) |
Downloads
Functions:
Four Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits four signals (audio, video, power, and data) over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. Moreover, HDCVI technology supports PoC for construction flexibility.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. The camera supports transmission up to 700 m (0.43 miles) via coaxial cable, and up to 300 m (0.19 miles) via UTP cable.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Starlight
With the adoption of a high-performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.
Wide Dynamic Range
For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same Ɵ me to provide usable video.
Multi-interfaces
The camera is designed with multi-interfaces for transmitting/receiving various signals. It supports HDCVI and CVBS video outputs simultaneously with two BNC connectors, and a tester interface for debugging. It also supports audio input interface as well as alarm input/output for connecting external devices.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 100 m (328 ft).
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments. The camera complies with IK10 impact resistant rating to provide maximum durability against vandals, making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
