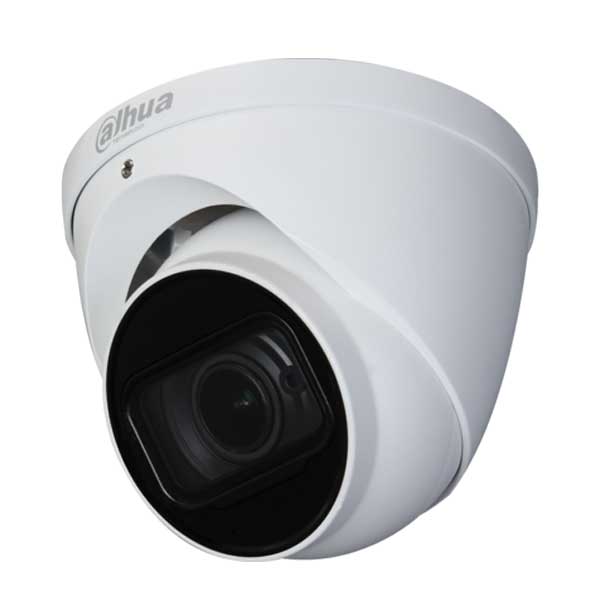

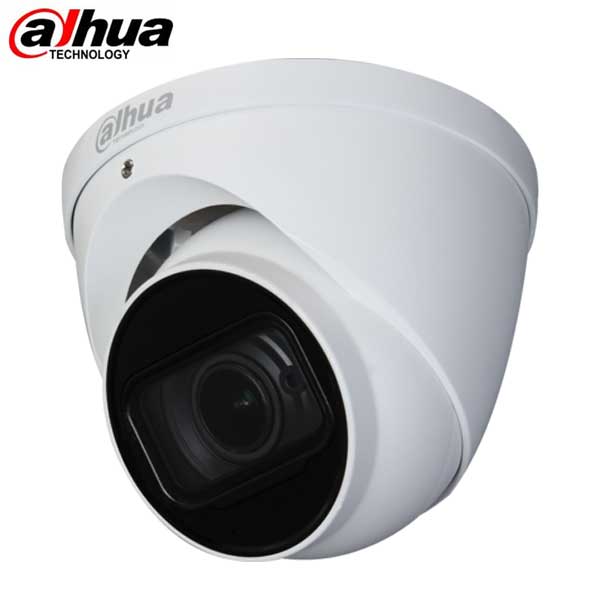

*Discontinued* Dahua / HDCVI / 2MP / Eyeball Camera / Vari-focal / 2.7-13.5mm Lens / WDR / IP67 / IK10 / 60m IR / DH-A22CJAZ
- $92.39
-
- $92.39
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-A22CJAZ
Experience the superior clarity of Dahua's 2 MP HDCVI camera for vast coverage and superior image details. The 2 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a motorized zoom lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Starlight Technology and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 2 MP (1920 x 1080) at 30 fps Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Lens
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Built-in Microphone
- HD or SD Output, Switchable
- Maximum IR Length 60 m (196 ft), Smart IR
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $92.39
-
- $92.39
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/2.8-in. CMOS |
| Effective Pixels | 1920(H) × 1080(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.004 lux at F1.6, 30 IRE 0 lux at F1.6 with IR On |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 60 m (196.85 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Two (2) |
| Lens | |
| Lens Type | Motorized Lens, Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 2.7 mm to 13.5 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 108.7° to 28.7° |
| Close Focus Distance | 200 mm (7.87 in.) |
| Installation Angle | |
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 78˚ Rotation: 0˚ to 360˚ |
| DORI Distances¹ | |
| Detect (8 ppf) |
Wide: 44 m (144 ft) Tele: 153 m (502 ft) |
| Observe (19 ppf) |
Wide: 18 m (59 ft) Tele: 61 m (200 ft) |
| Recognize (38 ppf) |
Wide: 9 m (30 ft) Tele: 31 m (102 ft) |
| Identify (76 ppf) |
Wide: 5 m (16 ft) Tele: 15 m (49 ft) |
| Video | |
| Resolution | 1080p (1920 × 1080) |
| Frame Rate | 1080p at 30 fps or 720p at 60 fps |
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable |
| Video Transmission | RG-59/U Coax: 720p: 800 m (2624.67 ft), 1080p: 500 m (1640.42 ft) RG-6/U Coax: 720p: 1200 m (3937.01 ft), 1080p: 800 m (2624.67 ft) CAT 6 UTP (balun required): 720p: 450 m (1476.38 ft), 1080p: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC, HLC, True WDR |
| WDR | 120 dB |
| White Balance | Auto, Manual |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| Smart IR | Auto, Manual |
| Certifications | |
| CE | EN55032; EN55024; EN50130-4 |
| Safety |
UL60950-1; CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 |
| Interface | |
| Audio³ | Input: One (1) Channel, RCA Jack, plus One (1) Built-in Microphonev |
|
Electrical |
|
| Power Supply | AC 24V±30% / DC 12V±30% |
| Power Consumption | Max 6.9 W (IR on) |
| Environmental | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F), Less than 90% RH Initiate start up above -40°C (-40°F) |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F), Less than 90% RH |
| Ingress Protection |
IP67 |
| Construction | |
| Casing | Aluminum |
| Dimensions | ø122.0 mm × 104.0 mm (ø4.80 in. × 4.09 in.) |
| Net Weight | 0.63 kg (1.39 lb) |
| Gross Weight |
0.83 kg (1.83 lb) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures. 3. The default audio input is via the built-in microphone; users must access the Advanced menu to switch the audio input to the cable option. The camera accepts audio from only one input source.
Downloads
Functions:
Three Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits video, audio, and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Starlight
For challenging low-light applications, Dahua’s Starlight low light Technology offers best-in-class light sensitivity, capturing details in low light applications. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Multi-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/ SD DVRs.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. This HDCVI camera transmits audio signals over the coaxial cable, eliminating the need for separate audio wiring. In addition, the camera uses unique audio processing and transmission technology that eliminates noise to best duplicate source audio, guaranteeing high-quality and highly effective audio information.
Protection
The camera is subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating making it suitable for demanding outdoor applications. The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications, and its 4KV lightning rating provides effective protection for both the camera and its structure against lightning.
