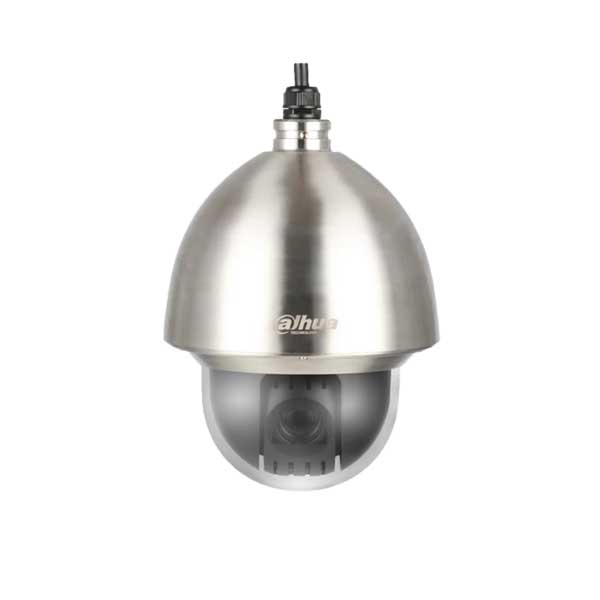

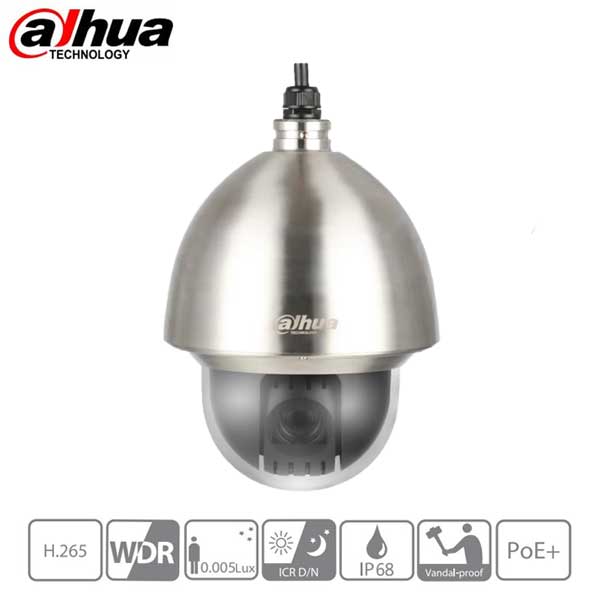

*Discontinued* Dahua / HDCVI / 2MP / PTZ Network Camera / Varifocal / 4.5-135mm Lens / Outdoor / WDR / IP68 / Starlight / 5 Year Warranty / DH-SD60230UN-HNI-SL
- $4,172.38
-
- $4,172.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-SD60230UN-HNI-SL
Featuring powerful optical zoom and accurate pan/tilt/zoom performance, this camera provides an all-in-one solution for capturing long distance video surveillance for outdoor applications. Together with infrared illumination and Starlight technology, the camera is the perfect solution for dark, lowlight applications. The series combines a day/night mechanical IR cut filter for the highest image quality in variable lighting conditions during the day, and True WDR for applications with direct sunlight or glare.
- 1/2.8” 2Megapixel STARVIS™ CMOS
- Powerful 30x optical zoom
- Starlight technology
- H.265 Encoding
- Max. 50/60fps@1080P
- Auto-tracking and IVS
- Support PoE+
- IP68, IK10, NEMA 4X
- Material: 316L Stainless steel
- Five-year Warranty (applies to products sold through an authorized Dahua Dealer.)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $4,172.38
-
- $4,172.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/2.8-in. STARVIS CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1s~1/30,000s |
| Minimum Illumination | Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 |
| S/N Ratio | More than 55dB |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens | |
| Focal Length | 4.5 mm to 135 mm |
| Max Aperture | F1.6 to F4.4 |
| Angle of View | H: 67.8° ~ 2.4° |
| Optical Zoom | 30x |
| Focus Control | Auto / Manual |
| Close Focus Distance | 100 mm to 15000 mm |
| DORI² Distance - Detect - Wide (8 ppf) | 1862m (6109ft) |
| DORI² Distance - Observe - Wide (19 ppf) | 744m (2441ft) |
| DORI² Distance - Recognize - Wide (38 ppf) | 372m (1220ft) |
| DORI² Distance - Identify - Wide (76 ppf) | 186m (610ft) |
| PTZ | |
| Pan/Tilt Range | Pan: : 0° ~ 360° endless Tilt: : -20° ~ 90° Auto flip 180° |
| Manual Control Speed | Pan: 0.1° ~300° /s Tilt: 0.1° ~200° /s |
| Preset Speed | Pan: 240° /s Tilt: 200° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented Focal Length / Speed Adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto-recognition) |
| Intelligence | |
| Auto Tracking | Support |
| IVS | Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map |
| Video | |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 1080P (1920×1080) / 1.3M (1280×960) / 720P (1280× 720) / D1 (704×576/704×480) / CIF (352×288 / 352×240) |
| Frame Rate | Main stream: 1080P / 1.3M/720P (1~50/60fps) Sub stream1: D1 / CIF (1 ~ 25/30fps) Sub stream2: 1080P / 1.3M / 720P / D1 / CIF (1~25/30fps) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.265 / H.264: 448K ~ 8192Kbps |
| Day/Night | Auto (ICR) / Color / B/W |
| Video Transmission³ - CAT 6 UTP (balun required) |
720p: 380 m (1246.72 ft) 1080p: 380 m (1246.72 ft) |
| Day/Night | Auto (ICR), Color, B/W, Timer |
| Backlight Compensation | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Advanced Features | Motion Detection, Region of Interest, Defog, Electronic Image Stabilization (EIS) |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a / G.711Mu / AAC / G.722 / G.726 / MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users20 users |
| Edge Storage | NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4- 2014 NEMA 4X: UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Interface | |
| Video | 1 port (BNC, 1.0V[p-p], 75Ω) |
| RS485 | 1 |
| Audio I/O | 1/1 |
| Alarm I/O | 7/2 |
| Electrical | |
| Power Supply | AC 24V/3A (±25%), PoE+ (802.3at) |
| Power Consumption | 13W, 20W (Heater on) |
| Environmental | |
| Operating Conditions | -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH |
| Ingress Protection | IP68 |
| Vandal Resistance |
IK10 |
| Construction | |
| Casing | 316L Stainless Steel |
| Dimensions | Φ222 (mm) x 292 (mm) |
| Net Weight | 5.9kg (13.01lb) |
| Gross Weight | 11.0Kg (24.25lb) |
*Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Downloads:
Functions:
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Auto-tracking
This feature controls the pan/tilt/zoom actions of the camera to automatically track an object in motion and to keep it in the scene. The tracking action can be triggered manually or automatically by defined rules. Once a rule is triggered, the camera can zoom in and track the defined target automatically.
Smart H.265+
Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.
PFA Technology
PFA technology has innovatively introduced new methods of judgment to ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms. PFA ensures clarity of the image throughout the process of zooming and shortens focus time. The realization of PFA technology substantially improves user experience and increases product value.
Environmental
Dahua cameras operate in extreme temperature environments, rated for use in temperatures from -40 °C to +70 °C (-40 °F to +158 °F) with 95% humidity. The camera complies with the IK10 Vandal Resistance impact rating. Subjected to rigorous dust and water immersion tests and certified to the IP68 Ingress Protection rating makes it suitable for demanding outdoor applications.
Protection
The camera allows for ±25% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) and PSIA (Physical Security Interoperability Alliance) specifications, ensuring interoperability between network video products regardless of manufacturer.
