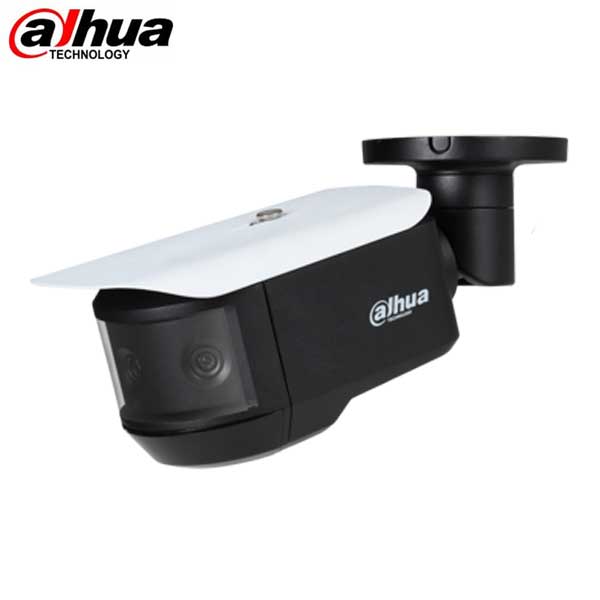

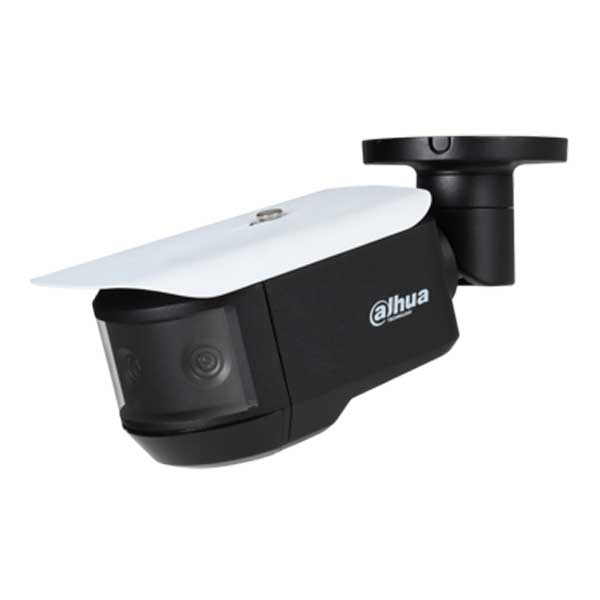

*Discontinued* Dahua / HDCVI / 3 x 2MP / Bullet Camera / Fixed / 3.6mm Lens / Outdoor / WDR / IP67 / IK10 / 20m IR / DH-HAC-PFW3601N-A180
- $1,121.38
-
- $1,121.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-HAC-PFW3601N-A180
The Dahua Multi-Sensor HDCVI Camera uses three (3) 2 MP sensors to deliver a panoramic 180° scene. The camera provides one output for the 180° panoramic video, plus three separate 2 MP HDCVI outputs, one for each sensor. One multi-sensor camera replaces multiple single-sensor cameras providing a higher return on investment for your security dollars. Each sensor is independently configurable, so contrast, backlight compensation, white balance control, and resolution adjustments can be tailored to create a custom image for every application.
- Three (3) 1/2.8-in 2 MP Progressive Scan STARVIS™ CMOS Sensors
- Simultaneous 180° Panoramic Output plus Three (3) 2 MP HDCVI
Video Outputs - 3840 x 832 at 15 fps Maximum Resolution (Panoramic Image)
- True WDR (120 dB), 2D and 3D Noise Reduction
- E-PTZ and Motion Detection Functionality
- Maximum IR Distance 20 m (66 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $1,121.38
-
- $1,121.38
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/2.8-in. CMOS |
| Effective Pixels | 1945(H) × 1097(V), 2.1 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1.3 s to 1/30000 s; NTSC: 1 s to 1/30000 s |
| Minimum Illumination | 0.005 Lux @ F1.4 0 Lux (IR on) |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 100 m (328 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Four (4) |
| Lens | |
| Lens Type | Motorized, Auto Iris |
| Mount Type | Board-in |
| Focal Length | 2.7 mm to 12 mm |
| Maximum Aperture | F1.4 |
| Angle of View | H: 95° to 36° |
| Focus Control | Auto, Manual |
| Close Focus Distance | 300 mm (11.81 in.) |
| Installation Angle | |
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 90˚ Rotation: 0˚ to 360˚ |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 1080p (1920 × 1080) |
| Frame Rate | 25/30 fps @ 1080p 25/30/50/60 fps @ 720p |
| Video Output | One (1) BNC HDCVI High-definition Channel and, One (1) BNC CVBS Channel, plus One (1) CVBS Tester Channel |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC, HLC, WDR |
| WDR | 120 dB |
| White Balance | Auto, Manual |
| Gain Control | AGC |
| Noise Reduction | 3D DNR |
| Smart IR | Auto, Manual |
| Interface | |
| Audio | Input: One (1) Channel, RCA Jack |
| Alarm | Input: Two (2) Channels Output: One (1) Channel |
| Test Interface | One (1) Channel, 2-pin CVBS Video Output |
| Upgrade Interface | One (1) Channel, 4-pin USB Input |
| Code Switcher | One (1) Physical Code Switch (switches the source of the preset video) |
| Menu Set | One (1) five-direction Keyboard |
| Certifications | |
| Safety | EN55032, EN55024, EN50130-4 UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Electromagnetic Compatibility (EMC) | FCC Part 15 Subpart B, ANSI C63.4-2014 |
|
Electrical |
|
| Power Supply | 12 VDC ± 25%, 2 A |
| Power Consumption | 22 W |
| Environmental | |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F), Less than 90% RH Initiate start up above -30°C (-22°F) |
| Storage Conditions | -30°C to +60°C (-22°F to +140°F), Less than 90% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Aluminum |
| Dimensions | 286.0 mm x 119.0 mm x 106.0 mm (11.26 in. x 4.68 in. x 4.19 in.) |
| Net Weight | 1.50 kg (3.30 lb) |
| Gross Weight |
2.0 kg (.40 lb) |
1. Requires PoC Transceivers for each channel and an external power supply for each transceiver. 2. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 3. This data represents the maximum frame rate the camera transmits when all four (4) channels are connected to a DVR. Use this data to connect the camera to an appropriate DVR. 4. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
Downloads
Functions:
Four Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits four signals (audio, video, power, and data) over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms. Moreover, HDCVI technology supports PoC for construction flexibility.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. The camera supports transmission up to 700 m (0.43 miles) via coaxial cable, and up to 300 m (0.19 miles) via UTP cable.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Starlight
With the adoption of a high-performance sensor, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.
Wide Dynamic Range
For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Multi-interfaces
The camera is designed with multi-interfaces for transmitting/receiving various signals. It supports HDCVI and CVBS video outputs simultaneously with two BNC connectors, and a tester interface for debugging. It also supports audio input interface as well as alarm input/output for connecting external devices.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts the intensity of camera's infrared LEDs to compensate the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 100 m (328 ft).
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments. The camera complies with IK10 impact resistant rating to provide maximum durability against vandals, making it capable of withstanding the equivalent of 55 kg (120 lbs) of force. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
