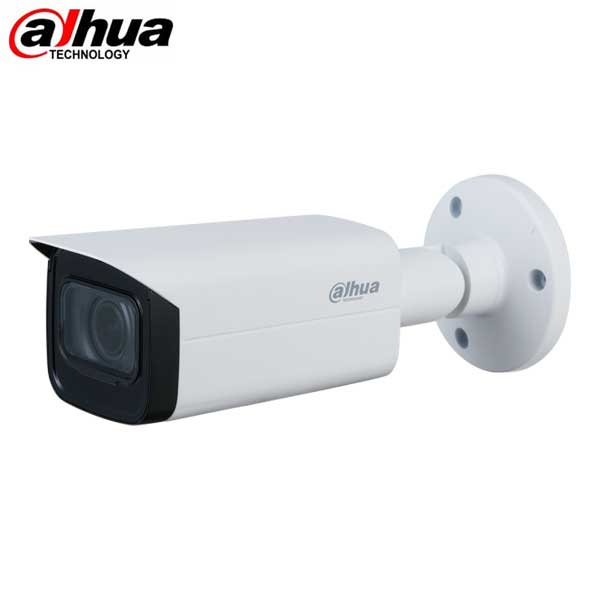

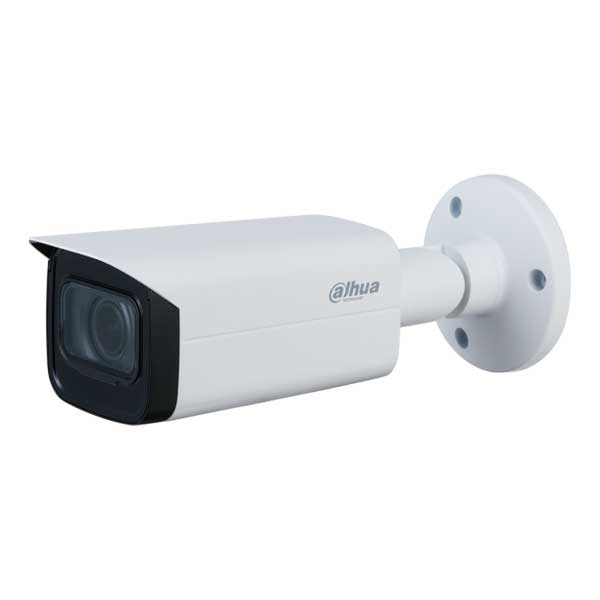

*Discontinued* Dahua / HDCVI / 5MP / Bullet Camera / Varifocal / 2.7-13.5 mm Lens / Outdoor / WDR / IP67 / 80m IR / 5 Year Warranty / DH-A52BFAZ
- $206.98
-
- $206.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-A52BFAZ
Experience the superior clarity of Dahua's 5 MP HDCVI cameras for vast coverage and superior image details. The 5 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- 5 MP (2880 x 1620) at 25 fps Maximum Resolution
- 2.7 mm to 13.5 mm Motorized Vari-focal Lens
- 16:9 Aspect Ratio for no Image Stretching
- Starlight Technology for Low-light Applications
- True Wide Dynamic Range (120 dB) and 3D Noise Reduction
- Built-in Microphone
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 80 m (262.47 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty (for products sold through authorized Dahua Dealers)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $206.98
-
- $206.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specifications
| Camera | |
| Image Sensor | 1/2.7-in. CMOS Sensor |
| Effective Pixels | 2880 (H) x 1620 (V), 5 MP |
| Aspect Ratio¹ | 16:9 |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/4 s to 1/100,000 s |
| Minimum Illumination | Color: 0.001 Lux at F1.6, 30 IRE 0 Lux with IR on |
| S/N Ratio | Greater than 65 dB |
| IR Distance | Up to 80.0m (262.47 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Four (4) |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Mount Type | ø14 |
| Focal Length | 2.7 mm to 13.5 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 31.4° to 113.0° Vertical: 17.6° to 58.0° Diagonal: 36° to 138.0° |
| Iris Type |
Fixed |
| Close Focus Distance | 800mm (31.50 in) |
| Installation Angle | |
| Range | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
| DORI Distances² | |
| Detect (8 ppf) | Tele: 64.0 m (210.0 ft) Wide: 210.0 m (689.0 ft) |
| Observe (19 ppf) |
Tele: 25.60 m (84.0 ft) Wide: 84.0 m (275.59 ft) |
| Recognize (38 ppf) |
Tele: 12.80 m (42.0 ft) Wide: 42.0 m (137.80 ft) |
| Identify (76 ppf) |
Tele: 6.40 m (21.0 ft) Wide: 21.0 m (68.90) |
| Video | |
| Resolution Output |
5 MP (2880 x 1620), 4 MP (2560 x 1440), 1080p (1920 x 1080), 720p (1280 x 720), 960H (960 x 480), D1 (704 x 480), CIF (352 x 240) |
| Resolution | HDCVI:5 MP at 25 fps, 4 MP at 30 fps, 1080p at 30 fps AHD: 4 MP at 30 fps TVI: 4 MP at 30 fps CVBS: 960H |
| Video Output | One (1) BNC Output, HDCVI, AHD, TVI, CVBS switchable |
| Video Transmission³ | RG-59/U Coax: 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft); 5 MP: 500 m (1640.42 ft) RG-6/U Coax: 720p: 1200 m (3937.01 ft); 1080p: 800 m (2624.67 ft); 5 MP: 700 m (2296.59 ft) CAT 6 UTP (balun required): 720p: 450 m (1476.38 ft); 1080p: 300 m (984.25 ft); 5 MP: 300 m (984.25 ft) |
| Day/Night | Auto (ICR) |
| OSD Menu | Multi-language |
| BLC Mode |
BLC, HLC, HLC-Pro, True WDR |
| WDR |
120 dB |
| Gain Control |
Auto, Manual |
| Noise Reduction |
3D NR |
| White Balance | Auto, Manual |
| Advanced Features |
Smart IR, Mirror |
| Privacy Masking | Off, On (8 Areas, rectangular) |
| Certifications | |
| CE | EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014 |
| Safety | UL60950-1, EN 62368-1:2014+A11:2017, CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 |
| Interface | |
| Audio | One (1) Built-in Microphone |
| Electrical | |
| Power Supply | 24 VAC ±25% or 12 VDC ±10% |
| Power Consumption | Maximum 12.5 W (12 VDC, IR on) |
| Environmental | |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F) Less than 95% RH, non condensing |
| Storage Conditions | –30° C to +60° C (–22° F to +140° F) Less than 95% RH, non condensing |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | 244.10 mm x 90.40 mm x 90.40 mm (9.61 in. x 3.56 in. x 3.56 in.) |
| Net Weight | 0.79 kg (1.70 lb) |
| Gross Weight | 1,07 kg (2.40lb) |
1. To view the 16:9 video output on a Dahua HDCVI DVR you must update the DVR to the latest firmware. Obtain the latest firmware on the Dahua Wiki at https://dahuawiki.com/Recorders. 2. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 3. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
Downloads
Functions:
Three Signals over One Coaxial Cable
HDCVI technology simultaneously transmits video, audio, and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HDCVI DVR to send control signals or to trigger alarms.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low-light applications. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from whitening out images as they come closer to the camera. The camera’s integrated infrared illumination provides high-performance in extreme low-light environments.
Multiple-format
Support The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/ SD DVRs.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Protection
The camera is subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating making it suitable for demanding outdoor applications. The camera allows for input voltage tolerance, suitable for the most unstable conditions for outdoor applications, and its 4KV lightning rating provides effective protection for both the camera and its structure against lightning.
