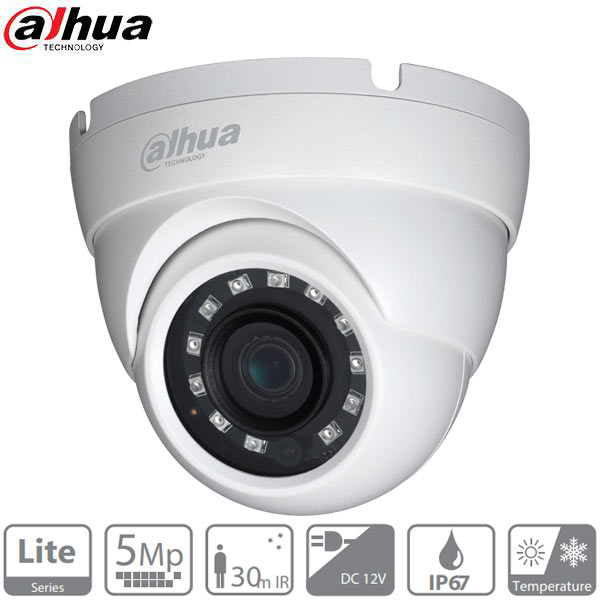

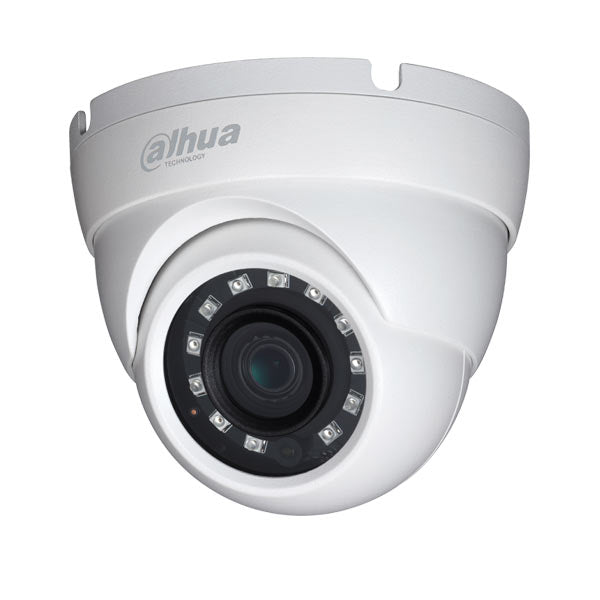

*Discontinued* Dahua / HDCVI / 5MP / Eyeball Camera / Fixed / 2.8mm Lens / Outdoor / IP67 / 30m Smart IR / 5 Year Warranty / DH-A511K02
- $43.19
-
- $43.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-A511K02
The Dahua A511K02 5MP Eyeball Camera leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video and broadcast-quality audio. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- 5 MP (2592 x 1944) at 20 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Wide Dynamic Range and True Day/Night (ICR)
- Multi-format Output (HDCVI, CVBS, AHD, and TVI)
- HD or SD Output, Switchable
- Maximum IR Length 30 m (98 ft), Smart IR
- IP67 Ingress Protection
- Designed for Extreme Temperature Environments
- Five-year Warranty (applies to products sold through an authorized Dahua Dealer.)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $43.19
-
- $43.19
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specifications
| Series | Lite |
| Body | Eyeball |
| Image Sensor | 1/2.7-in. CMOS |
| Resolution | 5 MP, 2592 (H) x 1944 (V) |
| Angle of View | Horizontal: 103° |
| Lens Type | Fixed lens, Fixed iris |
| Focal Length | 2.8 mm |
| Min. Illumination | Color: 0.02 Lux at F1.85 (30 IRE) 0 Lux with IR on |
| Day/Night | Auto (ICR), Manual |
| Max. IR Range | Up to 30.0 m (98.43 ft) |
| WDR | Digital WDR |
| Video Output |
One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable |
| Frame Rate | 5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps |
| IP Rating | 67 |
| Operating Temp | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Power | 12 VDC ±30% < 3.6 W |
| Camera | |
|---|---|
| Image Sensor | 1/2.7-in. CMOS |
| Effective Pixels | 2592 (H) x 1944 (V), 5 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/30 s to 1/100000 s |
| Minimum Illumination | Color: 0.02 Lux at F1.85 (30 IRE) 0 Lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30 m (98.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 12 |
| Lens | |
|---|---|
| Lens Type | Fixed Lens / Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.85 |
| Horizontal Angle of View | 103° |
| Close Focus Distance | 900 mm (35.43 in.) |
| DORI¹ Distance - Detect | 63 m (207 ft) |
| DORI¹ Distance - Observe | 25 m (82 ft) |
| DORI¹ Distance - Recognize | 13 m (43 ft) |
| DORI¹ Distance - Identify | 6 m (20 ft) |
| Pan/Tilt/Rotation | |
|---|---|
| Range | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
| Video | |
|---|---|
| Resolution |
5 MP (2592 x 1944) |
| Frame Rate |
5 MP at 20 fps, 4 MP at 30 fps, 1080p at 30 fps |
| Video Output | One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable |
| Video Transmission² | RG-59/U Coax: 720p: 800 m (2624.67 ft), 1080p: 500 m (1640.42 ft), 4 MP: 500 m (1640.42 ft) RG-6/U Coax: 720p: 1200 m (3937.01 ft), 1080p: 800 m (2624.67 ft), 4 MP: 700 m (2296.59 ft) CAT 6 UTP: 720p: 450 m (1476.38 ft), 1080p: 300 m (984.25 ft), 4 MP: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-language |
| Backlight Compensation | BLC, HLC, DWDR |
| WDR | Digital WDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance |
Auto, Manual |
| Smart IR | Auto, Manual |
| Certifications | |
|---|---|
| Safety |
EN55032, EN55024, EN50130-4 UL60950-1+CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014 |
| Electrical | |
|---|---|
| Power Supply | 12 VDC ±30% |
| Power Consumption | Maximum 3.6 W (12 VDC with IR on) |
| Environmental | |
|---|---|
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH Initiate startup above –40° C (–40° F) |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
|---|---|
| Casing | Aluminum |
| Dimensions | ø93.40 mm × 79.40 mm (ø3.68 in. x 3.13 in.) |
| Net Weight | 0.28 kg (0.62 lb) |
| Gross Weight | 0.38 kg (0.84 lb) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
Downloads
Functions:
Three Signals over One Coaxial CableHDCVI technology simultaneously transmits video, audio and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Smart IR
The camera is designed with microcrystalline LED IR illumination for low-light performance. Smart IR is a technology to ensure brightness uniformity in black and white images under low illumination. Dahua’s unique Smart IR adjusts to the intensity of the camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
Multiple-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD / SD DVRs.
Environmental
With a built-in heater and a temperature range of –40° C to +60° C (–40° F to +140° F), the cameras are designed for extreme temperature environments. The cameras, subjected to rigorous dust and water immersion tests, are certified to the IP67 rating making them suitable for demanding outdoor applications.
