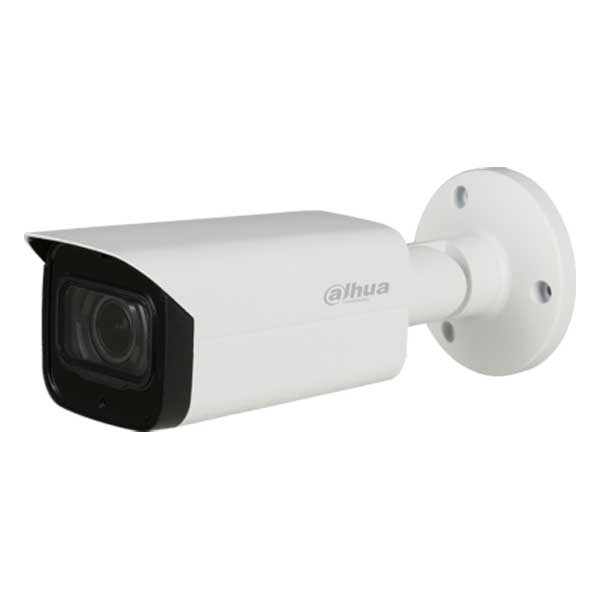

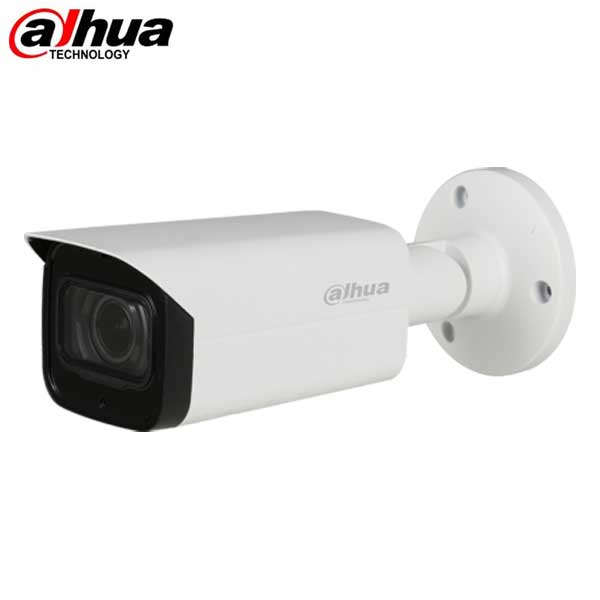

*Discontinued* Dahua / HDCVI / 8MP / Bullet Camera / Vari-focal / 3.7-11mm Lens / 4K / WDR / IP67 / 80m IR / DH-A82AF5V
- $313.18
-
- $313.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-A82AF5V
Experience the superior clarity of Dahua's Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
- 1/2-in. 8 MP Progressive Scan CMOS Sensor
- 4K (3840 x 2160) at 15 fps Maximum Resolution
- 3.7 mm to 11 mm Motorized Optical Zoom Lens
- Starlight Technology for Ultra Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- HD or SD Output, Switchable
- Maximum IR Length 80 m (262 ft), Smart IR
- Built-in Microphone
- Dual Power Input, 24 VAC or 12 VDC Power Supply
- IP67 Ingress Protection
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $313.18
-
- $313.18
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/2-in. CMOS Sensor |
| Effective Pixels | 3840(H) x 2160(V), 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.5, 30 IRE 0 lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 80 m (262.47 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Four (4) |
| Lens | |
| Lens Type | Motorized Lens, Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 3.7 mm to 11 mm |
| Maximum Aperture | F1.5 |
| Angle of View | Horizontal: 46° to 112° |
| Focus Control | Auto, Manual |
| Close Focus Distance | 200 mm (7.87 in.) |
| Installation Angle | |
| Range | Pan: 0˚ to 360˚ Tilt: 0˚ to 90˚ Rotation: 0˚ to 360˚ |
| DORI Distances¹ | |
| Detect (8 ppf) | Wide-angle: 83 m (273 ft) Telephoto: 190 m (624 ft) |
| Observe (19 ppf) |
Wide-angle: 33 m (109 ft) Telephoto: 76 m (250 ft) |
| Recognize (38 ppf) |
Wide-angle: 17 m (54 ft) Telephoto: 38 m (125 ft) |
| Identify (76 ppf) |
Wide-angle: 8 m (27 ft) Telephoto: 19 m (62 ft) |
| Video | |
| Resolution | 8 MP (3840 x 2160) |
| Frame Rate | 3840 x 2160 at 15 fps 2560 x 1440 at 30 fps |
| Video Output | One (1) BNC HDCVI 4K Ultra High-definition Channel and, One (1) BNC CVBS Channel |
| Video Transmission² | RG-59/U Coax: 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft); 4K: 500 m (1640.42 ft) RG-6/U Coax: 720p: 1200 m (3937.01 ft); 1080p: 800 m (2624.67 ft); 4K: 700 m (2296.59 ft) CAT 6 UTP (balun required): 720p: 450 m (1476.38 ft); 1080p: 300 m (984.25 ft); 4K: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC, HLC, True WDR |
| WDR | 120 dB |
| White Balance | Auto, Manual |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| Smart IR | Auto, Manual |
| Certifications | |
| CE | EN55032; EN55024; EN50130-4 |
| Safety | UL60950-1; CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014 |
| Interface | |
| Audio | Input: One (1) Channel, RCA Jack, and Built-in Microphone |
|
Electrical |
|
| Power Supply | 24 VAC ±30% or 12 VDC ±30% |
| Power Consumption | Maximum 15 W (12 VDC, IR on) |
| Environmental | |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F) Less than 90% RH *Initiate start up above –30° C (–22° F) |
| Storage Conditions | –30° C to +60° C (–22° F to +140° F) Less than 90% RH |
| Ingress Protection |
IP67 |
| Construction | |
| Casing | Aluminum |
| Dimensions | 244.10 mm x 90.40 mm x 90.40 mm (9.61 in. x 3.56 in. x 3.56 in.) |
| Net Weight | 0.80 kg (1.76 lb) |
| Gross Weight |
1.05 kg (2.31 lb) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
Downloads
Functions:
Three Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits video, audio and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. This HDCVI camera transmits audio signals over the coaxial cable, eliminating the need for separate audio wiring. In addition, the camera uses unique audio processing and transmission technology that eliminates noise to best duplicate source audio, guaranteeing high-quality and highly effective audio information.
Multiple-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/ SD DVRs.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology delivers remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. 3DNR, in addition, effectively decreases the bandwidth and saves storage space.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Protection
The camera allows for ±30% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 4KV lightning rating provides effective protection for both the camera and its structure against lightning, and its IP67 ingress protection make it the choice for installation in even the most unforgiving environments.
