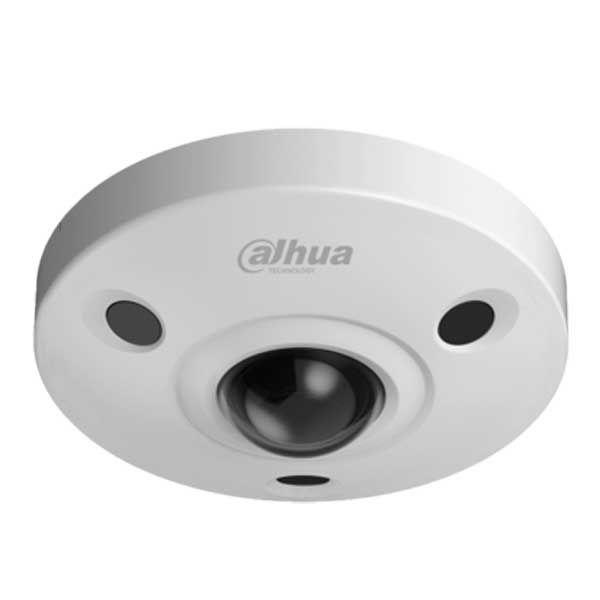

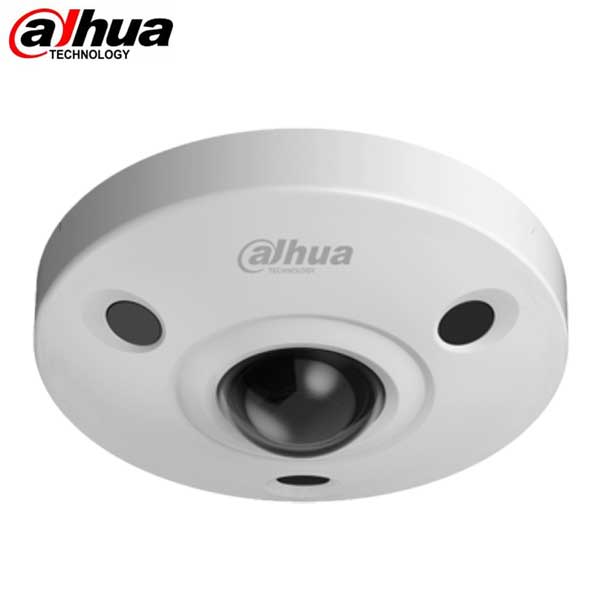

*Discontinued* Dahua / HDCVI / 8MP / Fisheye Camera / Fixed / 2.5mm Lens / 4K / WDR / IP67 / IK10 / 15m IR / DH-A83AR6
- $872.98
-
- $872.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-A83AR6
Experience the superior clarity of Dahua's Ultra 4K HDCVI cameras for vast coverage and superior image details. As the world's first 4K over coax cameras, the Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and more cost effectively. The 4K HDCVI fisheye camera offers a 180° panoramic view with multiple dewarping modes for clear pictures. The camera delivers high quality images with crisp details and accurate color rendition, even under complex lighting conditions thanks to True WDR (120 dB).
- 1/2-in. 8 MP Progressive-scan CMOS Sensor
- 3840 x 2160 at 15 fps Maximum Resolution
- 180° Panoramic Lens
- True WDR (120 dB), 2D/3D DNR
- Maximum IR Distance 15 m (49 ft) with Smart IR
- On-device Lens Distortion Correction
- HD and SD Dual-output
- IP67 Ingress Protection and IK10 Vandal Resistance
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $872.98
-
- $872.98
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
x
Technical Specification
| Camera | |
| Image Sensor | 1/2-in. CMOS Sensor |
| Effective Pixels | 3840(H) x 2160(V), 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.5, 30 IRE 0 lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 15 m (49.21 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Fixed Lens, Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 2.5 mm |
| Maximum Aperture | F2.0 |
| Angle of View | No LDC Correction: Horizontal: 180°; Vertical: 100° LDC Vertical Mode: Horizontal: 176°; Vertical: 73° LDC Vertical/ Horizontal Mode: Horizontal: 170°; Vertical: 88° |
| Close Focus Distance | 600 mm (23.62 in.) |
| DORI Distances¹ | |
| Detect (8 ppf) | 53 m (174 ft) |
| Observe (19 ppf) | 21 m (69 ft) |
| Recognize (38 ppf) | 11 m (36 ft) |
| Identify (76 ppf) | 5 m (16 ft) |
| Video | |
| Resolution | 8 MP (3840 x 2160), 4 MP (2560 x 1440) |
| Frame Rate | 3840 x 2160 at 15 fps or 2560 x 1440 at 30 fps |
| Video Output | One (1) BNC HDCVI 4K Channel, and One (1) BNC CVBS Channel |
| Video Transmission² | RG-59/U Coax: 720p: 800 m (2624.67 ft); 1080p: 500 m (1640.42 ft); 4K: 500 m (1640.42 ft) RG-6/U Coax: 1080p: 800 m (2624.67 ft); 4 MP: 700 m (2296.59 ft); 4K: 700 m (2296.59 ft) CAT 6 UTP (balun required): 1080p: 300 m (984.25 ft); 4 MP: 300 m (984.25 ft); 4K: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC, HLC, WDR |
| WDR | 120 dB |
| White Balance | Auto, Manual |
| Gain Control | AGC |
| Noise Reduction | 2D / 3D |
| Smart IR | Auto, Manual |
| Certifications | |
| Safety | UL60950-1; CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | EN55032, EN55024, EN50130-4 CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014 |
| Interface | |
| Audio | Input: Built-in Microphone |
| Alarm | Input: Two (2) Channels; Output: One (1) Channel |
|
Electrical |
|
| Power Supply | 12 VDC ± 25% |
| Power Consumption | 7.4 W, with IR on |
| Environmental | |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F) Less than 90% RH *Initiate start up above –30° C (–22° F) |
| Storage Conditions | –30° C to +60° C (–22° F to +140° F) Less than 90% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Aluminium |
| Dimensions | ø149.80 mm x 47.70 mm (ø5.90 in. x 1.88 in.) |
1. The DORI distance is a measure of the general proximity for a specific classification to help pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specifications and lab test results according to EN 62676-4 , the standard that defines the criteria for the Detect, Observe, Recognize and Identify classifications. 2. Transmission distance results verified by real-scene testing in Dahua's test laboratory. Actual transmission distances may vary due to external influences, cable quality, and wiring structures.
Downloads
Functions:
Three Signals over a Single Coaxial Cable
HDCVI technology simultaneously transmits video, audio and data over a single coaxial cable. Dual-way data transmission allows the HDCVI camera to communicate with an HCVR to send control signals or to trigger alarms.
Starlight Technology
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Simplicity
HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Long Distance Transmission
HDCVI technology guarantees real-time transmission over long distances without loss of video quality. HDCVI cameras provide the same resolution as most IP network camera systems using existing RG-59, RG-6, or CAT 6 UTP cabling.
Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. This HDCVI camera transmits audio signals over the coaxial cable, eliminating the need for separate audio wiring. In addition, the camera uses unique audio processing and transmission technology that eliminates noise to best duplicate source audio, guaranteeing high-quality and highly effective audio information.
Multiple-format Support
The camera supports multiple video formats including, HDCVI, CVBS, AHD, and TVI. The camera can switch between these four formats via the OSD menu or the switch located on the video output cable, making the camera compatible with not only HDCVI DVRs but also most existing HD/ SD DVRs.
Advanced 3DNR
3DNR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology delivers remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. 3DNR, in addition, effectively decreases the bandwidth and saves storage space.
True Wide Dynamic Range
The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR (120 dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Protection
The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.).Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications. Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
