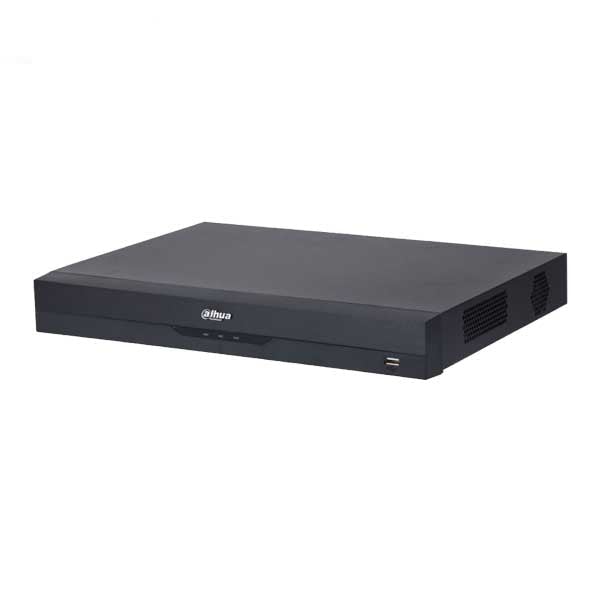

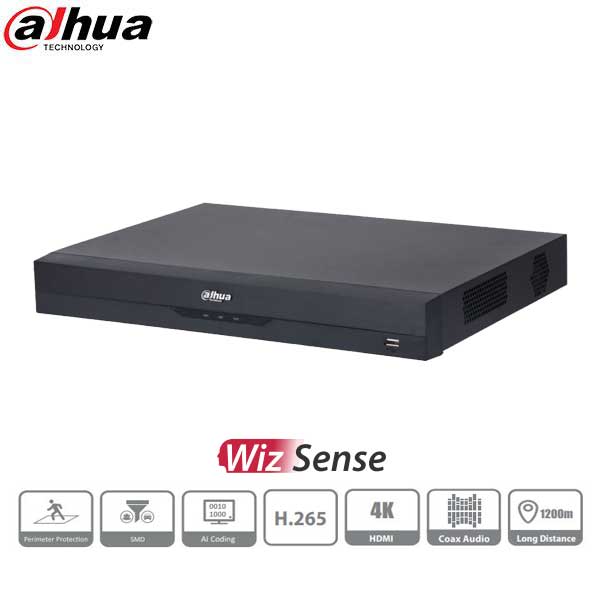

*Discontinued* Dahua / HDCVI DVR / 16 Channels / Analytics+/ 1U / Penta-brid / 8MP / 4k / 6TB HDD / X82B3A6
*Discontinued* Dahua / HDCVI DVR / 16 Channels / Analytics+/ 1U / Penta-brid / 8MP / 4k / 6TB HDD / X82B3A6
DH-X82B3A6
The X82B3A8 Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X82B3A8 takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously, plus the DVR delivers 4K resolution on each HDCVI or IP channel. This recorder is the ideal solution for actively monitoring public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.
Features
- 4K at 7 fps Recording Resolution on All HDCVI Channels
- 6 TB Pre-installed Hard Drive
- Dual-stream Video Recording
- AI Coding Technology for High-quality Human/Vehicle Video
- Auto-detection and Auto-configuration of Video Inputs
- 16 + 16 IP Camera Channels, each channel up to 8 MP
- Maximum 128 Mbps Incoming Bandwidth
- Perimeter Protection and Smart Motion Detection (SMD)
- Long-distance Video Transmission
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
Details
Specification
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on two (2) channels, or configure function on one (1) channel to use eight (8) channels for SMD • 10 Tripwire/Intrusion rules per channel |
| Live View | • Configure Rule and Object Inspection area • Display object classification, event types, trigger time, image snapshot, and object types • Export event playback 10 seconds prior to or after event |
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event • Snapshot capacity: 500,000 |
| Analytics+ Smart Motion Detection | |
| Performance | Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 16 channels, or configure functions on eight (8) channels to use one (1) channel of Perimeter Protection |
| Preview | • Configure and inspect detection area |
| Playback | • Search by channel, time, event type, and target type • Search event playback 10 seconds prior to or after event |

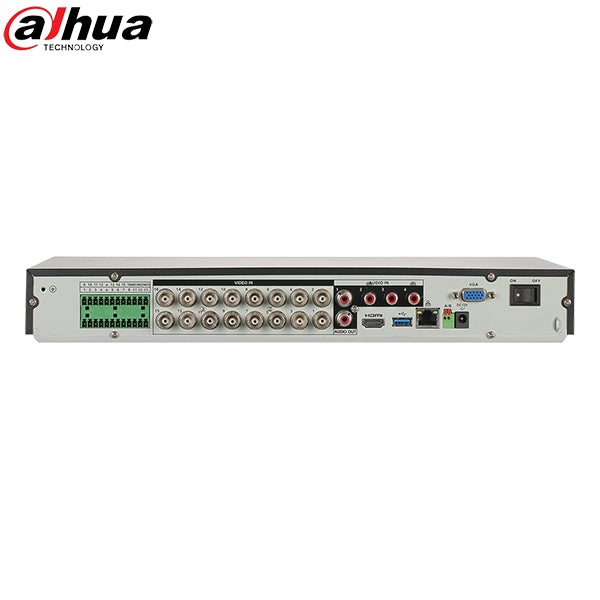

| Interface | |
| Analog Camera Input | 16 Channels, BNC |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p 720p |
| AHD | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| TVI | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| CVBS | NTSC |
| IP Camera Input | 16+16 Channels, each channel up to 8 MP (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Audio - Input | Four (4) Channels, RCA |
| Audio - Output | One (1) Channel, RCA |
| Two-way Talk | Audio Input Channel 1 In/ Audio Output, RCA |
| Recording | |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 K-N, 4 MP, 4 M-N, 1080p, 720p, 960H, D1, CIF |
| Record Rate - Main Stream | 8 MP at 7 fps 6 MP at 10 fps 5 MP at 12 fps 4K-N, 4 MP, 3 MP at 15 fps 4M-N, 1080p, 720p, 960H, D1, CIF at 30 fps |
| Record Rate - Sub Stream | 960H at 15 fps; D1 or CIF at 30 fps |
| Maximum Incoming Bandwidth | 128 Mbps |
| Bit Rate | 32 Kbps to 6144 Kbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Intel, Stop |
| Record Interval | 1 to 60 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s |
| Audio Compression | G.711a, G.711u, PCM |
| Audio Sample Rate | 8 KHz, 16 bits per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Display | |
| Interface | One (1) HDMI (3840 x 2160) One (1) VGA (1920 x 1080) |
| Spot Output | HDMI or VGA, configurable (HDMI: 1920 x 1080,1280 x 1024, 1280 x 720 VGA: 1920 x 1080,1280 x 1024, 1280 x 720) |
| Native Output Resolution - HDMI | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Native Output Resolution - VGA | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Playback Decoding | 16 Channels of 4 MP/3 MP at 7 fps 16 Channels of 4 M-N/1080p at 15 fps 16 Channels of 720p, 960H at 30 fps Eight (8) Channels of 4K at 7 fps Eight (8) Channels of 6 MP at 10 fps Eight (8) Channels of 5 MP at 12 fps Eight (8) Channels of 4 M-N, 1080p, 720p, 960H at 30 fps |
| Multi-screen Display | IP extension mode disabled: 1/4/8/9/16 IP extension mode enabled: 1/4/8/9/16/25/36 |
| Fisheye Dewarp | Supported via Web Interface |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | One (1) RJ-45 (1000 Mbps) Port |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarms - Input | 16 Channels |
| Alarms - Output | Three (3) Channels |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Two (2) SATA Ports, 6 TB capacity for each disk |
| eSATA | One (1) Port |
| Auxiliary Interface | |
| USB | One (1) USB 2.0 Port and One (1) USB 3.0 Port |
| RS485 | One (1) Port for PTZ Control |
| Electrical | |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | < 15 W, without HDD |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K/4MP: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K/4MP: 700 m (2296.59 ft) |
| CAT 6 UTP (balun required) |
720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K/4MP: 300 m (984.25 ft) |
| Construction | |
| Dimensions - HDCVI DVR | 1U, 375.0 mm x 278.40 mm x 53.0 mm (14.76 in. x 10.96 in. x 2.09 in.) |
| Dimensions - with PFH101 Rack Mount Tray | 482.6 mm x 287.15 mm x 53.0 mm (19.0 in. x 11.31 in. x 2.09 in.) |
| Installation | Desktop or Rack-mount |
| Certifications |
UL, EN, IEC, FCC |
| Warranty | 5 Years |
