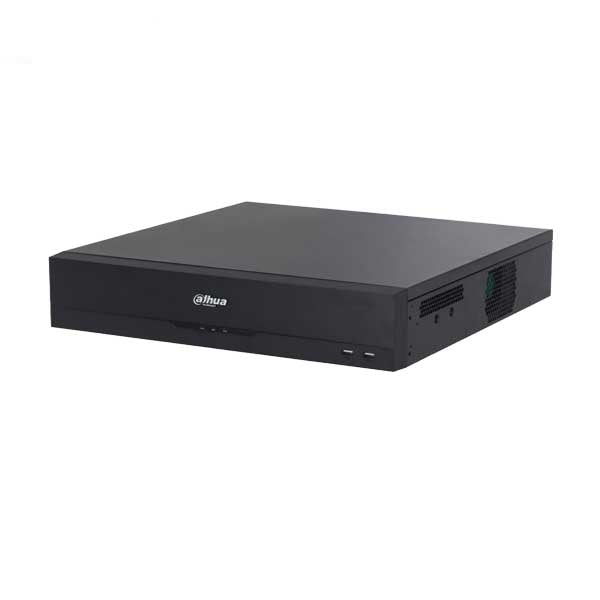

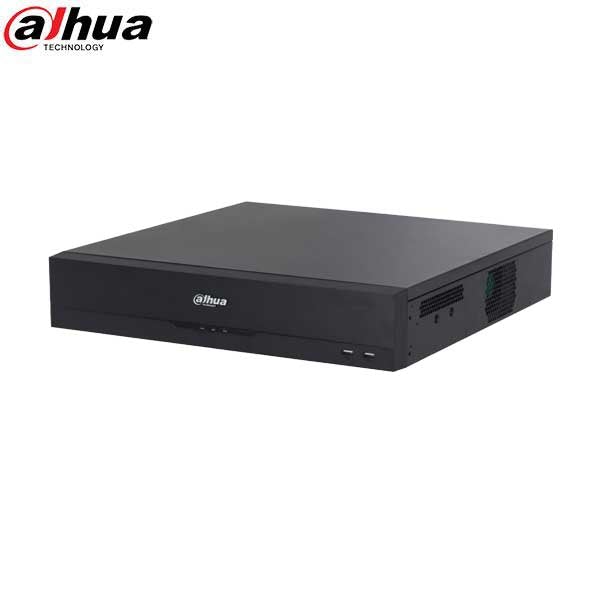

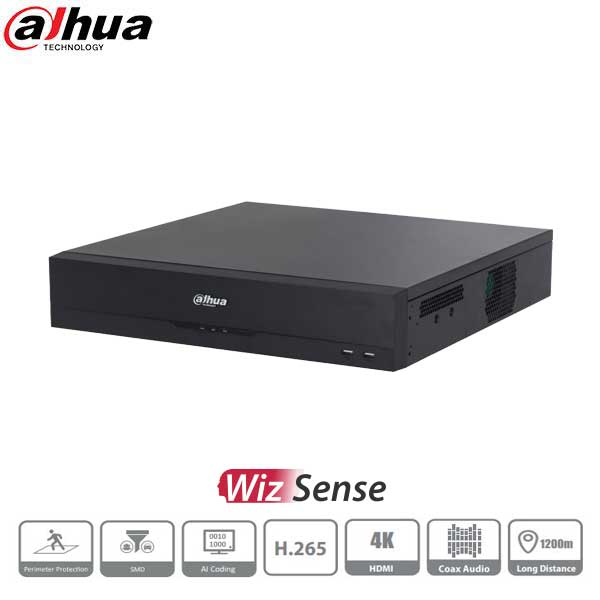

*Discontinued* Dahua / HDCVI DVR / 32 Channels / Analytics+/ 2U / Penta-brid / 12MP / 4k / 8TB HDD / X88B5S8
Out of Stock
SKU:
DH-X88B5S8
NSID:
28290
- $3,333.58
-
- $3,333.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
DH-X88B5S8
The X88B5S8 Series HDCVI DVR offers 4K recording on each HDCVI channel and a host of advanced features and functions. The X88B5S8 takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously, plus the DVR delivers 4K resolution on each HDCVI or IP channel.
Features
- 4K at 7 fps Recording Resolution on All HDCVI Channels
- Dual-stream Video Recording
- Smart H.265+ and Smart H.264+ Dual Codecs
- Auto-detection and Auto-configuration of Video Inputs
- 32 IP Camera Channels, each channel up to 12 MP
- Maximum 128 Mbps Incoming Bandwidth
- Analytics+ Functions: Perimeter Protection and Smart Motion Detection
- Spot Output (HDMI 2 Output)
- Become a registered dealer of Dahua
- Call 1-800-878-6604 for Dealer Prices!
- $3,333.58
-
- $3,333.58
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecification
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Analytics+ Perimeter Protection | |
| Performance | • Human and Vehicle object classification • Decreased false alarms from leaves, lights, animals • Configure function on 6 channels • 10 Tripwire/Intrusion rules per channel |
| Object Classification | • Human or Vehicle • Secondary Recognition for Tripwire and Intrusion |
| Search | • Search by object classification (human or vehicle) |
| Analytics+ Smart Motion Detection | |
| Performance | • Detect motion based on object classification (human or vehicle) • Decreased false alarms from leaves, lights, animals • Configure functions on 32 channels |
| Search | • Search by target classification |

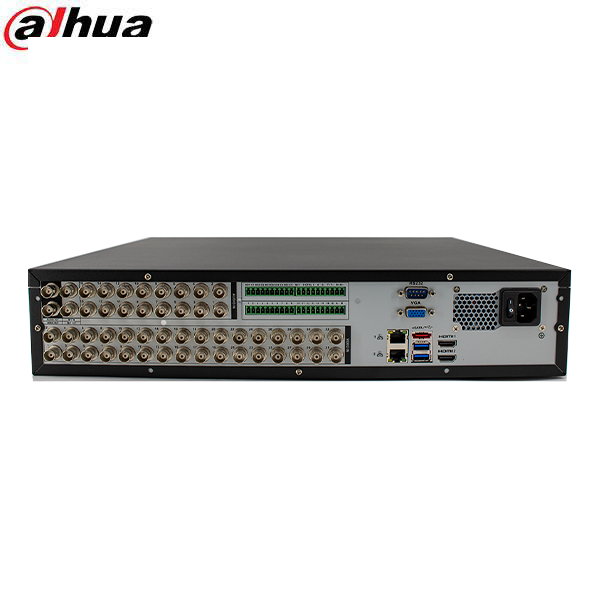

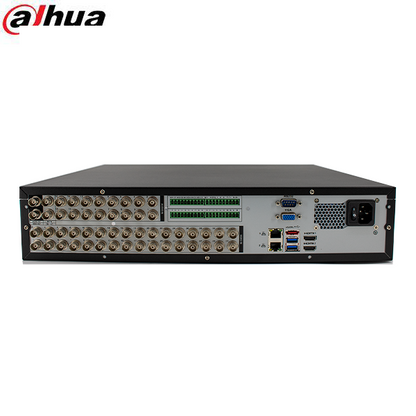

| Interface | |
| Analog Camera Input | 32 Channels, BNC |
| HDCVI | 8 MP, 6 MP, 5 MP, 4 MP, 1080p 720p |
| AHD | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| TVI | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p |
| CVBS | NTSC |
| IP Camera Input | 32 Channels, each channel up to 12 MP (The recording rate is dependent on the maximum resolution and frame rate of the connected IP camera.) |
| Audio - Input | 16 Channels, BNC |
| Audio - Output | One (1) Channel, RCA |
| Two-way Talk - Input | One (1) Microphone, BNC |
| Two-way Talk - Output | One (1) Channel, BNC |
| Recording | |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Recording Resolution | 8 MP, 6 MP, 5 MP, 4 K-N, 4 MP, 4 M-N, 1080p, 720p, 960H, D1, CIF |
| Record Rate - Main Stream | 8 MP at 7 fps 6 MP or 5 MP at 25 fps 4 K-N, 4 MP, 1080p, 720p, 960H, D1, or CIF at 30 fps |
| Record Rate - Sub Stream | 960H at 15 fps; D1 or CIF at 30 fps |
| Maximum Incoming Bandwidth | 128 Mbps |
| Bit Rate | 32 Kbps to 6144 Kbps per Channel |
| Record Mode | Manual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Intel, Stop |
| Record Interval | 1 to 60 minutes (default: 60 minutes), Pre-record: 1 s to 30 s, Post-record: 10 s to 300 s |
| Audio | |
| Audio Compression | G.711a, G.711Mu, PCM |
| Audio Sample Rate | 8 KHz, 16 bits per Channel |
| Audio Bit Rate | 64 Kbps per Channel |
| Display | |
| Interface | Two (2) HDMI (3840 x 2160) ports One (1) VGA (1920 x 1080) port One (1) TV port, BNC |
| Spot Output | HDMI 2 |
| Native Output Resolution - HDMI | 3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Native Output Resolution - VGA | 1920 x 1080, 1280 x 1024, 1280 x 720 |
| Maximum Playback Decoding | 16 Channels of 4K-N at 1 fps 16 Channels of 4 MP/3 MP at 7 fps 16 Channels of 4M-N/1080p at 15 fps 16 Channels of 720p/960H at 30 fps 13 Channels of 4K at 3 fps 13 Channels of 6 MP at 5 fps 13 Channels of 5 MP at 6 fps Eight (8) Channels of 4K at 7 fps Eight (8) Channels of 6 MP at 10 fps Eight (8) Channels of 5 MP at 12 fps Eight (8) Channels of 4 MP/ 3 MP at 15 fps Eight (8) Channels of 4M-N/1080p/720p/960H at 30 fps One (1) Channel of 4K at 30 fps |
| Multi-screen Display | 1/4/8/9/16/25/36 |
| Fisheye Dewarp | Supported via Web Interface |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
| Network | |
| Interface | Two (2) RJ-45 (1000 Mbps) Ports |
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS) |
| Maximum User Access | 128 Users |
| Mobile Operating System | IOS, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarms - Input | 16 Channels |
| Alarms - Output | Six (6) Channels |
| Playback and Backup | |
| Playback | 1/4/9/16 |
| Search Mode | Time/Date, Alarm, MD, Intel, and Exact Search (accurate to 1 second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, and Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | Eight (8) SATA Ports, 8 TB capacity for each disk |
| eSATA | One (1) Port |
| Auxiliary Interface | |
| USB | Two (2) USB 2.0 Ports and Two (2) USB 3.0 Ports |
| RS485 | One (1) Port for PTZ Control |
| RS232 | One (1) Port for PC Communication and Keyboard |
| Electrical | |
| Power Supply | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | < 30 W, without HDD |
| Video Transmission Distance | |
| RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K/4MP: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K/4MP: 700 m (2296.59 ft) |
| CAT 6 UTP (balun required) |
720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K/4MP: 300 m (984.25 ft) |
| Construction | |
| Dimensions | 2U, 439.90 mm x 463.0 mm x 94.90 mm (17.32 in. x 18.23 in. x 3.73 in.) |
| Installation | Desktop or Rack-mount |
| Certifications |
EN, IEC, FCC |
| Warranty | 5 Years |
